UHF RFID Rubber Sticker Tire Tags

Ultra High Frequency, 865–867 MHz, Tearproof, Rubber Sticker Tire RFID Tags, Size: 85mm x 38mm, for car , motorbikes, buses tire tracking

Check Availability
0 reviews
Write a review
Features
Operating Frequency: 865 - 867 MHz
Communication Protocol: ISO 18000-6C EPC Class 1 Gen 2
Read Range: Up to 6m
Chip Type: NXP UCode 8
EPC Memory: 96 bits
Related Products
UHF RFID Patch Tire Tags
7015 -TR UHF RFID Tire Mold tags for Tire Tracking
UHF Long Range Spring Tire Tracking RFID Tags
UHF RFID Flexible Tire Tags
PID-Rubber Tag, UHF RFID Tire Tracking Tags
Enquire Now
Be the first to review this item
 Write a review

Tire Tags are used for tire tracking, identification, and management application after the tires are manufactured. These tags are mounted on the inner side of the tire to get beneficial information about the tires in the tire factory and car factory. Tire tags are available in HF (High Frequency) and UHF (Ultra High Frequency) which makes Tire tracking tags to be read easily by readers from a distance to make sure of the smooth running of tire management applications without any hassle to save manpower and time. These tags are waterproof, high heat resistant, high pressure resistant, and non-transferable and cannot be removed without being destroyed.

Application

• Tire Factory Control,

• Tire Asset Tracking,

• Automotive Factory Tire Tracking

Specifications
Operating Frequency 865 - 867 MHz
Communication Protocol ISO 18000-6C EPC Class 1 Gen 2
Read Range Up to 6m
Chip Type NXP UCode 8
EPC Memory 96 bits
User Memory 512 bits
Write Cycle Endurance 100,000 cycles
Data Retention 50 Years
Tag Material Rubber

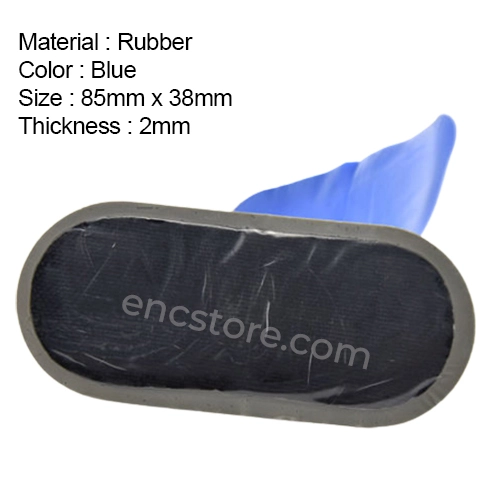

Tag Size 85mm(L) x 38mm(W) x 2mm(T)
Applicable Surface Tires
Attachment /Mounting Method Inner side of the tire
Operating Temperature -40°C to +85°C
Storage Temperature -40°C to +85°C
Application Endurance Pressure up to 5 MPa and temperature up to 200 °C
