UHF RFID Flexible Tire Tags

Ultra High Frequency RFID Flexible Tire Tag, Size: 130mm x 80mm, for Tire Tracking

Check Availability
0 reviews
Write a review
Features
Operating Frequency: 865 - 867 MHz
Communication Protocol: ISO 18000-6C EPC Class 1 Gen 2
Read Range: Up to 5m
Chip Type: NXP UCode 8
EPC Memory: 512 bits
Related Products
UHF Long Range Spring Tire Tracking RFID Tags
7820-RAIN RFID UHF Patch Wire Tire Tracking Tags
7015 -TR UHF RFID Tire Mold tags for Tire Tracking
UHF RFID Rubber Sticker Tire Tags
PID-Rubber Tag, UHF RFID Tire Tracking Tags
Enquire Now
Be the first to review this item
 Write a review

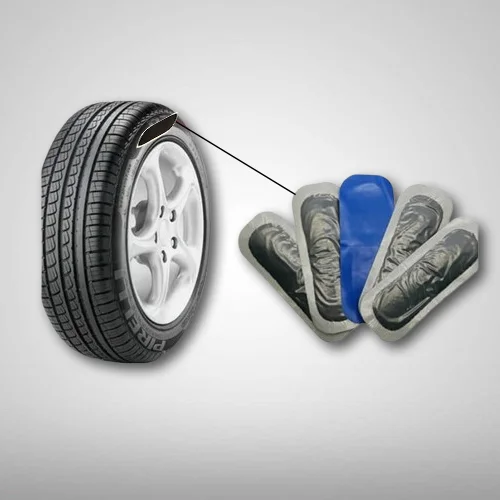

The UHF RFID Flexible Tire Tags are designed for tire identification and tracking. The tags are designed to be embedded into the sidewalls of tires, allowing them to be read while the tire is in motion. The tags are made from a durable and flexible material, making them ideal for use in harsh environments. They are also waterproof, making them resistant to water, oil, and other contaminants. The tags are available in a variety of sizes and can be customized for specific applications. They can be used to track tire performance, monitor tire wear and tear, and provide real-time alerts for potential tire issues.

Application: Tire Factory Control, Tire Asset Tracking, Automotive Factory Tire Tracking, etc

Specifications
Operating Frequency 865 - 867 MHz
Communication Protocol ISO 18000-6C EPC Class 1 Gen 2
Read Range Up to 5m
Chip Type NXP UCode 8
EPC Memory 512 bits
Write Cycle Endurance 100,000 cycles
Data Retention 50 Years
Tag Material Rubber

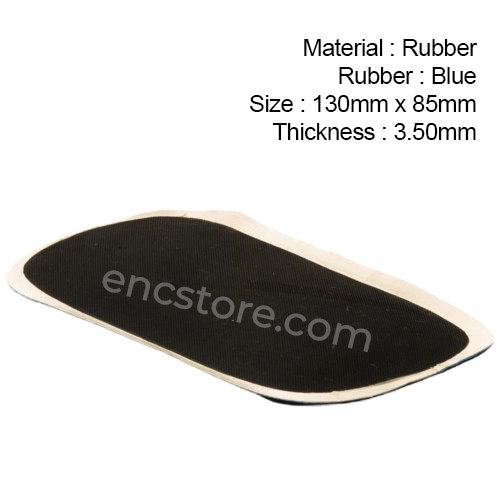

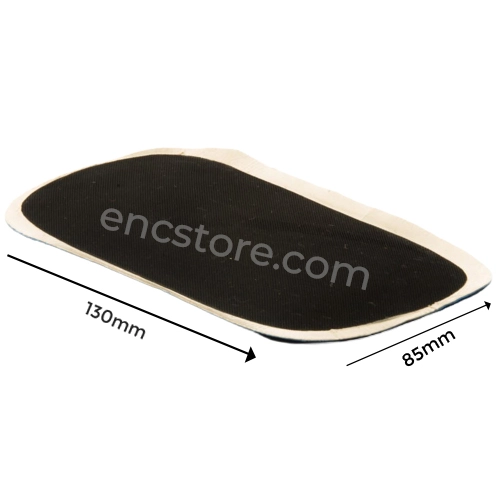

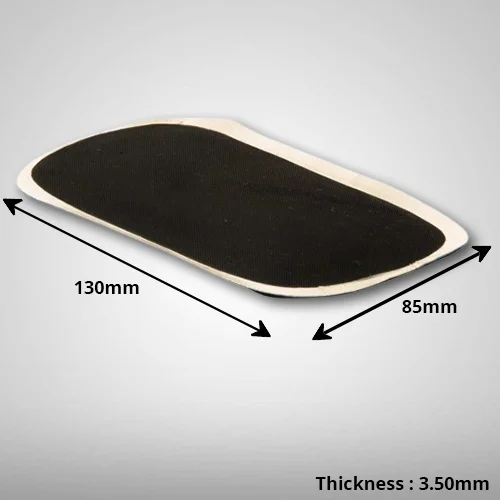

Tag Size 130mm(L) x 85mm(W) x 3.50mm(T)
Applicable Surface Tires
Attachment /Mounting Method Inner side of the tire
Operating Temperature -40°C to +85°C
Storage Temperature -40°C to +85°C
Application Endurance Pressure up to 5 MPa and temperature up to 200 °C
