UHF RFID Patch wire tire tracking tags are designed to track high value tires with long read range up to 5 meters and works on 860-960MHz frequency, suitable for tire factory, car manufacturers

Check Availability
Write a review
Features
Operating Frequency: 865 - 867 MHz
Communication Protocol: ISO 18000-6C EPC Class 1 Gen 2
Read Range: Up to 5m
Chip Type: NXP UCode 8
EPC Memory: 128 bits
Enquire Now
Be the first to review this item
 Write a review

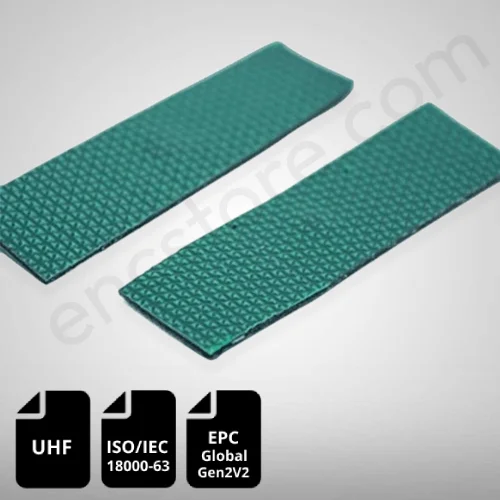

RAIN RFID UHF PID-Patch Wire Tags for tire tracking are specially optimized for securing tire inventory and give excellent performance when mounted on tires, providing a unique identifier for each tire. These RFID tire tags work on 860 MHz - 960 MHz and are compatible with ISO 18000-63 and EPCglobal Gen2v2 communication standards.

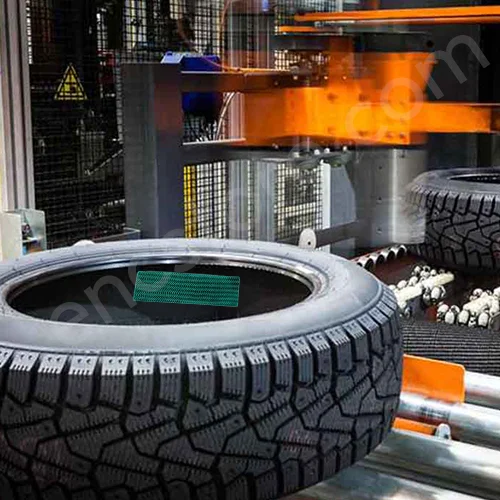

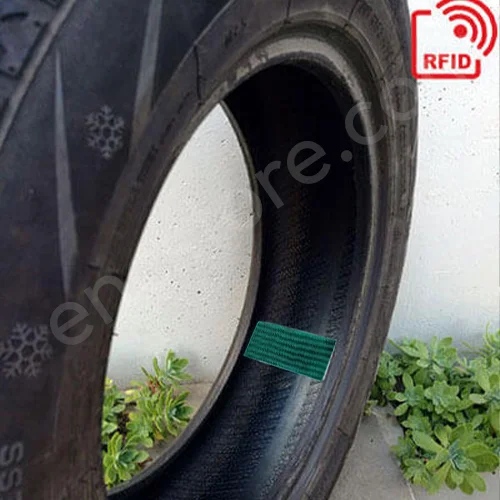

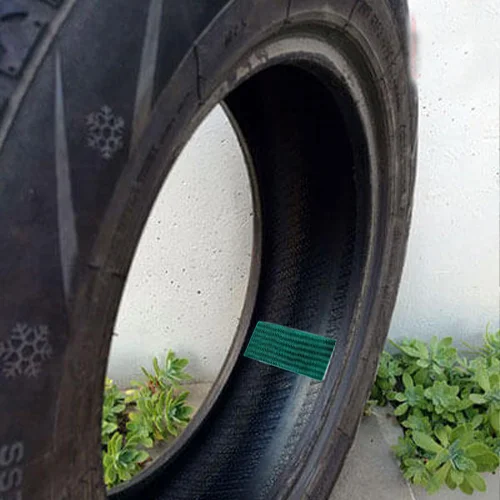

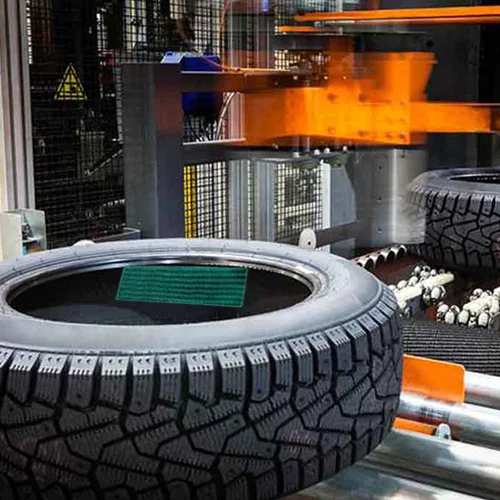

The purpose of RFID tire tracking tags is to enhance tire management and improve overall efficiency in various industries. These tags can be used in logistics and supply chain management to track the movement of tires from manufacturing plants to distribution centers and ultimately to end-users. The RFID patch tire tracking tags are easily installed on tires, and use vulcanization glue which is similar to a tire repair patch.



EnCstore offers RAIN RFID UHF PID-Patch Wire Tire tags which help tire and car businesses to easily keep track of their inventory, monitor tire usage, and improve overall efficiency. RFID tire tracking tags offer a convenient and reliable solution for managing tires in various industries, such as logistics, transportation, and fleet management.



Specifications
Operating Frequency 865 - 867 MHz
Communication Protocol ISO 18000-6C EPC Class 1 Gen 2
Read Range Up to 5m
Chip Type NXP UCode 8
EPC Memory 128 bits
Write Cycle Endurance 100,000 cycles
Data Retention 50 Years
Tag Material Rubber

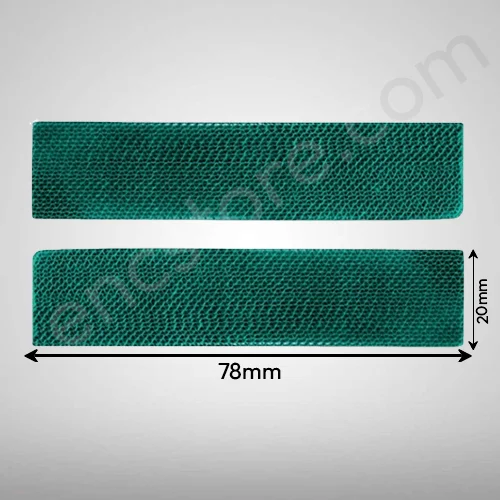

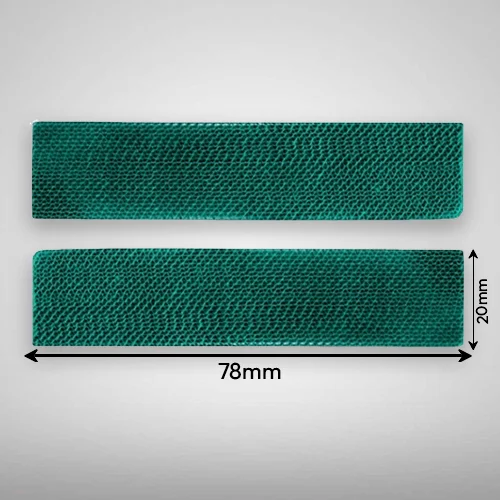

Tag Size 78mm(L) x 20mm(W) x 2.5mm(T)
Antenna Size 70mm(L) x 15mm(W)
Applicable Surface Tires
Attachment /Mounting Method Vulcanization glue
Operating Temperature -35°C to +85°C
Storage Temperature -35°C to +85°C
