12dBi UHF RFID Antenna, Circular Polarized RFID Antenna

865-868 MHz Frequency, Circular Polarized RFID Antenna, Excellent Read Range, High Performance UHF RFID antenna, 12dBi Gain, N-female Connector, 100W Max Power

Check Availability
Write a review
Enquire Now
Be the first to review this item
 Write a review

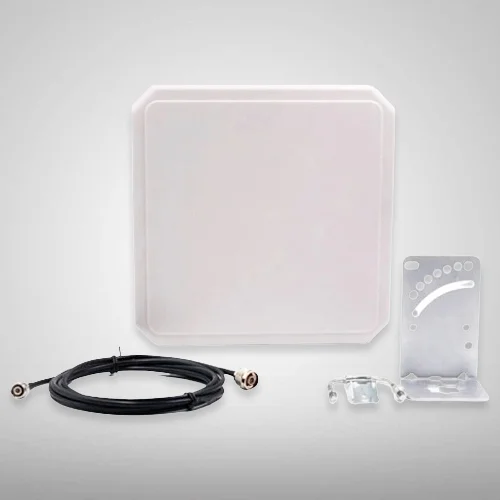

The Circular Polarized UHF RFID Antenna is a high-performance antenna designed for use with UHF RFID systems. This type of UHF RFID antenna offers several advantages over other types of RFID antennas, including improved read range and accuracy. This ultra high-frequency (UHF) RFID Antenna has a frequency range of 865-868 MHz with a gain of 12dBi.

RFID Circular Polarized UHF Antenna has a longer read range than linear polarized antenna or patch antennas. This is because the circular polarization of the antenna allows for better signal propagation and penetration through materials, resulting in a wider and more consistent read range.

Specifications
Product UHF RFID Circular Antenna
Operating Frequency 865 - 868 Mhz
Dimensions 257mm x 257mm x 33mm
Gain 12dBi

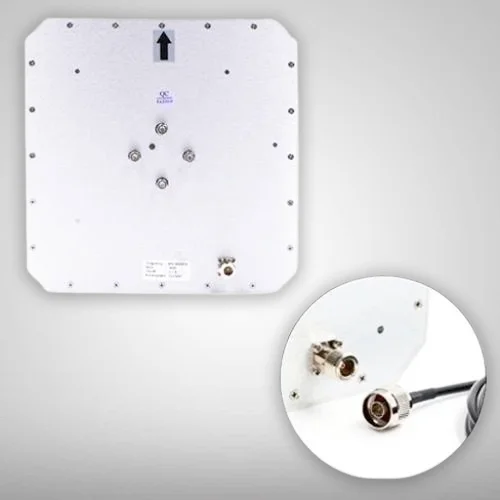

Connector type N-Female
Polarization Right-hand Circular, Left-hand Circular
Impedance 50 ohm
Maximum Power 100 W
Lightening Protection DC Ground
Maximum VSWR 1.3:1
IP Rating IP67
