Long range UHF RFID strip tag for metal surfaces that works on 865-867Mhz frequency, offers upto 18m read range, size 120mm x 22mm, Rivet and screw mounting, IP67 Rating, Lightweight and reusable

Write a review
Features
Operating Frequency: 865 - 867 MHz
Communication Protocol: ISO 18000-6C EPC Class 1 Gen 2
Read Range: Up to 18m
Chip Type: Impinj Monza M730/ M750
EPC Memory: 96 bits
Enquire Now
Be the first to review this item
 Write a review

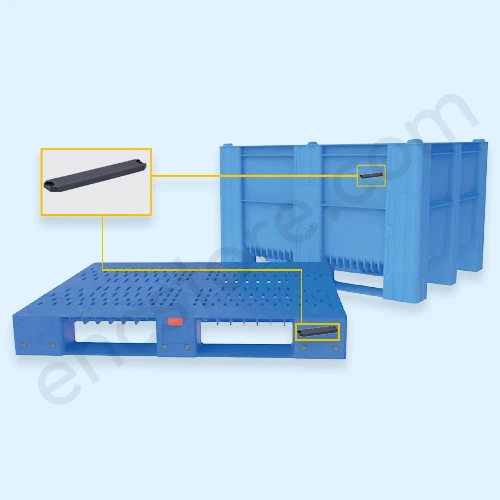

UHF RFID Anti-Metal Strip Tag, designed to provide reliable and efficient tracking solutions for metal surfaces. Operating within the 865-867MHz frequency range, these tags offer superior performance and versatility in a variety of industrial applications. With a maximum reading range of 18 meters, this tag makes it easier to quickly and easily identify and track returnable transport products, which improves operational effectiveness and reduces the possibility of inventory shrinkage.

Encstore offers UHF RFID strip tag that are simple to use, attachable with magnets, glue, and rivets, and suitable for all metal surfaces. The tag's wide scan range and fast data transfer speed enable quick and accurate inventory counts, decreasing the need for manual labor and the possibility of errors.

Specifications
Operating Frequency 865 - 867 MHz
Communication Protocol ISO 18000-6C EPC Class 1 Gen 2
Read Range Up to 18m
Chip Type Impinj Monza M730/ M750
EPC Memory 96 bits
User Memory 32 bits
Write Cycle Endurance 100,000 cycles
Data Retention 50 Years
Tag Material ABS

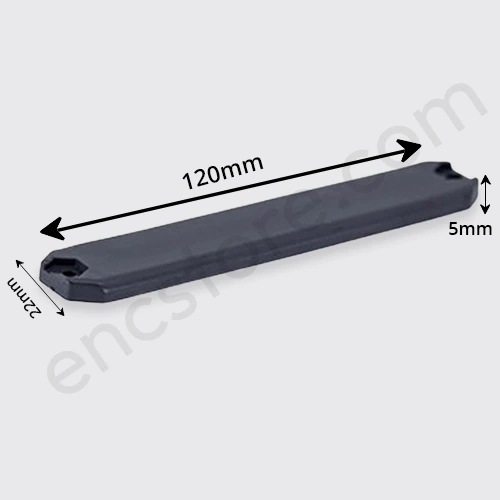

Tag Size 120mm(L) x 22mm(W) x 5mm(T)
Applicable Surface Metal Surfaces
Attachment /Mounting Method Screw
Operating Temperature -40°C to +85°C
Storage Temperature -40°C to +85°C
IP Ratings IP68
