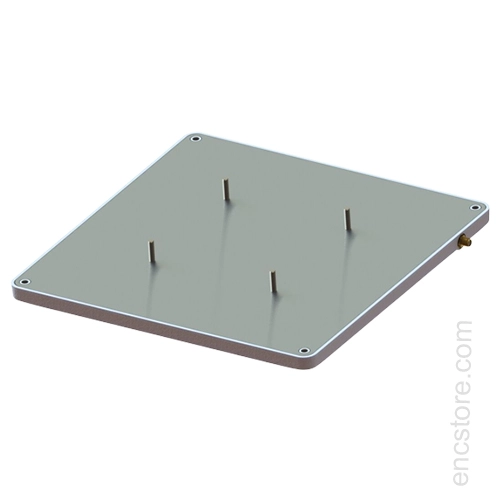

UHF, 9dBi Linear Polarised RFID Antenna

Linear Polarized RFID Antennas, 865-868MHz Frequency, 9dBi gain, High-Performance & Rugged Design, IP Rating-67, SMA female side connector, 3W Max Power

Check Availability
0 reviews
Write a review
Features
Operating Frequency: 865-868 MHz, Ultra High Frequency
Polarization: LP (Linear Polarised)
Gain: 9 dBic
Connector Type: SMA female (connects to SMA male)
Dimensions: 10 X 10 X 0.8 inches
Related Products
7.5dBi Linearly Polarised UHF RFID Antenna
Door Frame UHF RFID Linearly Polarized Antenna
9dBi Linear Polarized UHF RFID Antenna with Mounting Bracket
Enquire Now
Be the first to review this item
 Write a review
Wave Antenna is a high performance linear polarised antenna with 9dbi of gain, packed in a compact low profile polycarbonate covering with plenum rating and fire resistant properties, The antenna is designed aesthetically for industrial and commercial purpose usage, It can withstand under critical to harsh environmental conditions with an IP rating 68.
Specifications
Operating Frequency 865-868 MHz, Ultra High Frequency
Polarization LP (Linear Polarised)
Gain 9 dBic
Connector Type SMA female (connects to SMA male)
Dimensions 10 X 10 X 0.8 inches
Mounting Flush mount
Max Read Distance Up to 9m (29 ft)
IP Rating IP67
VSWR 1.3 typical
Front to back ratio -20 dB
Axial ratio 1 dB typical
Nominal impedance 50 O
Antenna detection 10 K O resistance
Maximum Input Power 3 W
Operating Temprature 0° to +65°C
Storage Temperatur 0° to +65°C
