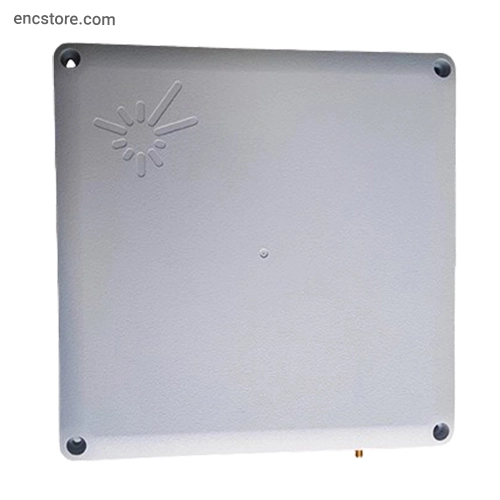

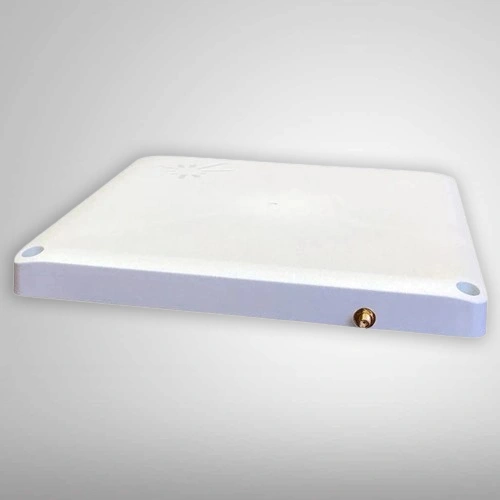

This high-performance 9dBi linear Polarized UHF RFID Antenna, with a long reading range, operates on the 865-867MHz Frequency, features a SMA female connection, 9dBi gain and an IP68 Rating

Check Availability
Write a review
Features
Operating Frequency: 865-867 MHz, Ultra High Frequency
Polarization: Linear
Gain: 9 dBic
Connector Type: SMA Female Type connector
Dimensions: 10 X 10 X 0.8 inches
Enquire Now
Be the first to review this item
 Write a review

Our high-performance UHF RFID antennas boast 9dBi gain and linear polarization for long-range (up to 9 meters) communication between RFID tags and readers. This makes them ideal for demanding industrial and commercial applications like retail, toll booths, parking management, warehouses, and more.  The compact, low-profile design with a fire-resistant polycarbonate enclosure makes them suitable for indoor spaces. These antennas are built tough with an IP68 rating to withstand harsh outdoor environments and provide 360-degree tag reading. We also offer a wide variety of UHF RFID labels, antennas, and readers from leading manufacturers, all with fast pan-India delivery and easy returns. Contact us today for a quote on the perfect RFID solution for your needs.

Specifications
Operating Frequency 865-867 MHz, Ultra High Frequency
Polarization Linear
Gain 9 dBic
Connector Type SMA Female Type connector
Dimensions 10 X 10 X 0.8 inches

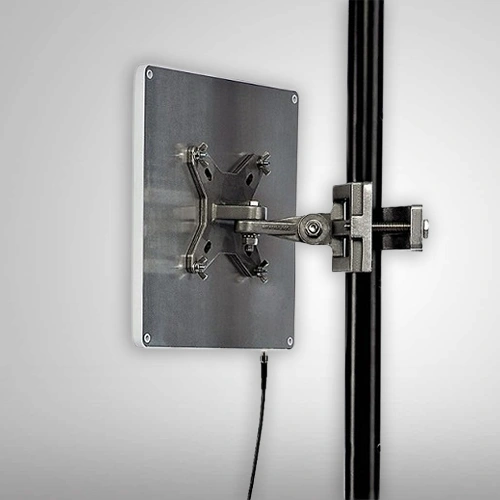

Mounting Flush and Vesa Mount
Max. Power Input 3 W
Max Read Distance Up to 9m (29 ft)
IP Rating IP68
VSWR 1.3 typical
Front to back ratio -20 dB
Operating Temprature -25°C to 70°C
