TSL 1128 Bluetooth UHF RFID Reader - Android RFID Scanner

Long read range, High-performance UHF RFID scanner, Best-in-Class, Bluetooth wireless technology, With & Without Barcode Scanner, Android/iOS/Windows SDK

Check Availability
0 reviews
Write a review
Features
Operating Frequency: 865-867 Mhz, Ultra High Frequency (UHF)
Air Interface Protocol: ISO 18000-6C EPC Clas 1 Gen 2
User input: Trigger button.
Power Source: Removable, rechargeable 3.7V, 2400mAh, 8.9Wh Lithium Polymer battery pack.
Dimension: 160mm(L) x 77mm(W) x 169mm(D)
Related Products
2128 Bluetooth UHF RFID Handheld/Sled Reader
Zebra RFD40 RFID SLED Handheld Reader
Zebra RFD9090 Long Range Ultra-Rugged UHF RFID Sled Reader
2128P Android Bluetooth RFID Reader, UHF RFID Sled Reader
R6 UHF RFID Sled Reader, Android Bluetooth RFID Reader
Enquire Now
Be the first to review this item
 Write a review

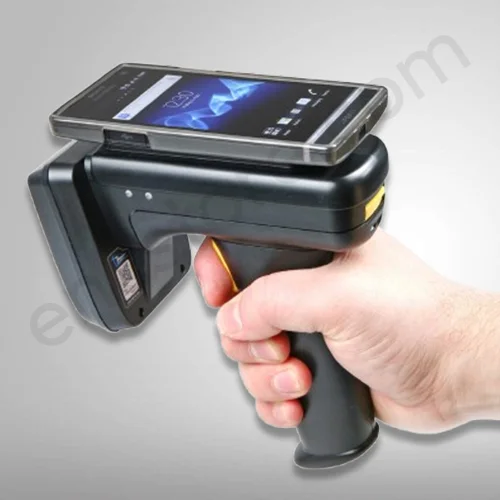

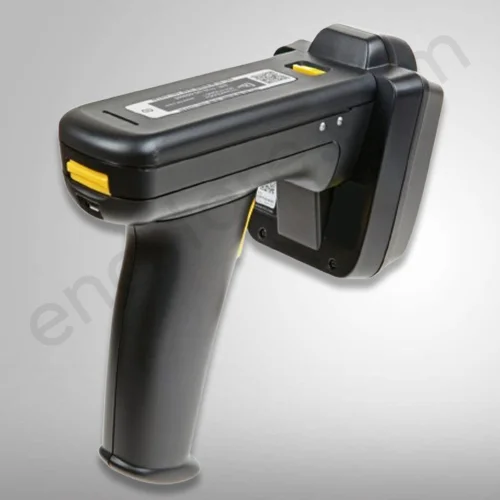

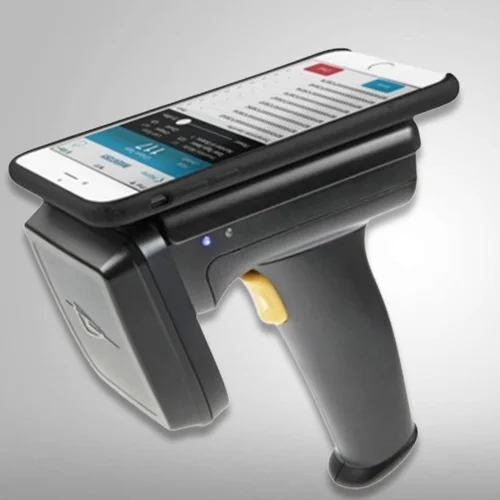

TSL 1128 Bluetooth UHF RFID Reader is a handheld, Bluetooth-enabled, ultra-high frequency (UHF) RFID reader. It is designed to read and write to EPC Class 1 Gen 2 (ISO 18000-6C) UHF transponders and communicates with a variety of host devices via Bluetooth. The TSL 1128 bluetooth UHF RFID handheld reader has a read distance of up to 7mtrs and a write distance of up to 2mtrs. Its rugged design ensures a long service life and excellent performance in indoor and outdoor environments. It is IP54 rated for outdoor use and is powered by a long-life Lithium-Ion rechargeable battery. It also has a built-in LCD display for configuration and status information.

Application: Warehouse inventory management, Asset tracking, Retail inventory management, Pharmaceutical supply chain management, Document tracking, Healthcare asset tracking, Vehicle tracking and Supply chain optimization.

Specifications
Operating Frequency 865-867 Mhz, Ultra High Frequency (UHF)
Air Interface Protocol ISO 18000-6C EPC Clas 1 Gen 2
User input Trigger button.
Power Source Removable, rechargeable 3.7V, 2400mAh, 8.9Wh Lithium Polymer battery pack.
Dimension 160mm(L) x 77mm(W) x 169mm(D)
User feedback Speaker, vibration motor, LED
Memory Supports up to 32 GB Micro SD/SDHD CARD
Operating Temperature -10°C to 40°C
Charging Temperature 5°C to 40°C
IP Rating IP54
Nominal read range Up to 7m
Nominal write range Up to 2m
Antenna Detachable, Circularly Polarized with optional 2D scanner
Output Power 10mW to 800mW
Sensor Resolution 752 x 480 pixels
Operating System Android, iOS, Windows 10, 8, 7, Vista, XP, Windows Mobile, Windows CE, and Windows Phone
Data Interface USB, Bluetooth
Scanner 2D Imager (Optional)
Antenna Type Circular polarized
