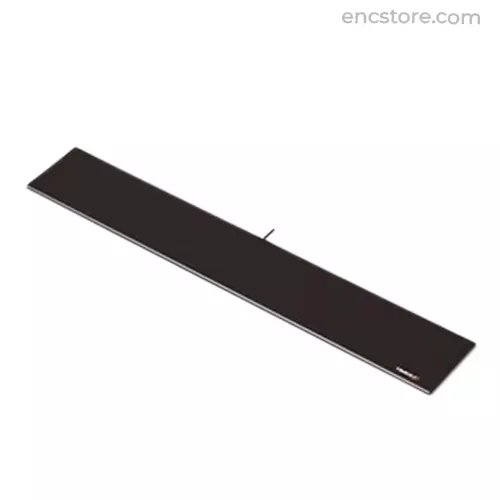

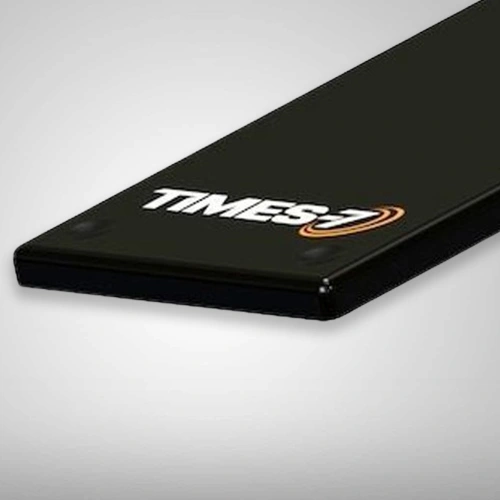

Times-7 Slimline A8060 Door Frame UHF RFID Antenna (LP)

Ultra High Frequency, 860-960Mhz A8060 Door Frame UHF RFID Antenna, High performance Linear Polarized Antenna with 5dBi gain, Long read range, 3W Maximum Input Power

Write a review
Features
Brand: Times 7
Operating Frequency: 865-868 MHz / 902-928 MHz
Polarization: Horizontally Linear
Far-field Gain: 5 dBi
Maximum Input Power: 3 W
Dimensions: 650 mm x 88 mm x 10.5 mm
Enquire Now
Be the first to review this item
 Write a review

The Times-7 Slimline A8060 Door Frame UHF RFID Antenna operates over the frequency range of 860–960 MHz with 5dBi gain, which results in a long read range even in harsh conditions.  With a sleek and versatile design, this antenna can be easily mounted on door frames or other surfaces to provide reliable and accurate RFID read rates.

The A8060 Door Frame UHF RFID Antenna features a simple and intuitive design for easy installation, reducing deployment time and costs. A8060 Door Frame UHF RFID Antenna is an ultra-low profile linear polarized flat panel UHF RFID antenna and at just 8 mm / 0.3 inch thickness, it offers outstanding far-field performance.

EnCStore is the leading UHF RFID antenna manufacturer in the market, offering unbeatable prices without compromising on quality. Our UHF RFID antennas are designed with the latest technology and are suitable for various industries, including logistics, retail, and healthcare.

Specifications
Operating Frequency865-868 MHz / 902-928 MHz
PolarizationHorizontally Linear
Far-field Gain5 dBi
Maximum Input Power3 W
Dimensions650 mm x 88 mm x 10.5 mm
Radome MaterialFire retardant ABS
Environmental RatingIP54
Operating Temperature:-20° to +55°C
Storage Temperature-30° to +65°C
MountingIntegrated mounting guides / Adhesive foam strip
Connector typeSMA female side fly lead (300 mm / 1 ‘)
VSWR1.8 typical
Front to back ratio-7 dB
Nominal Impedance50 ohm
Anti-static protectionYes, DC grounded
Antenna detection10 K ohm resistance
