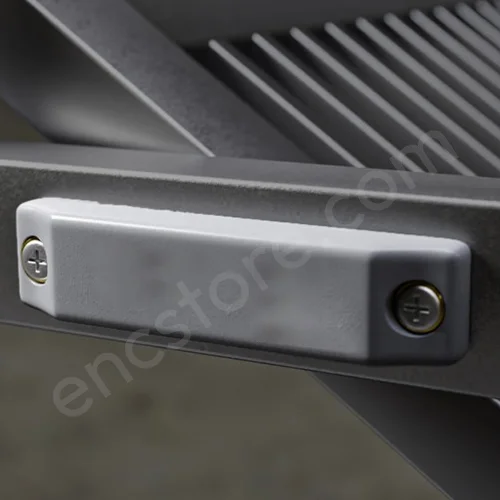

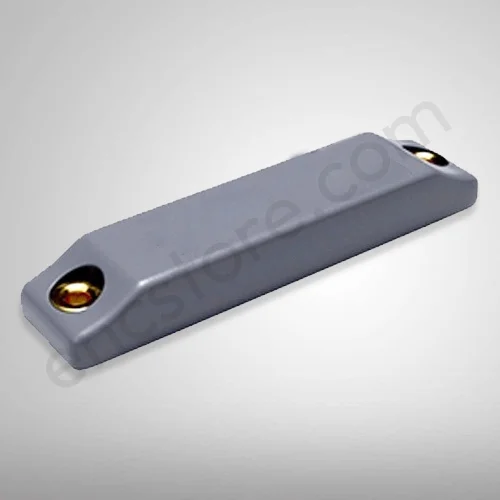

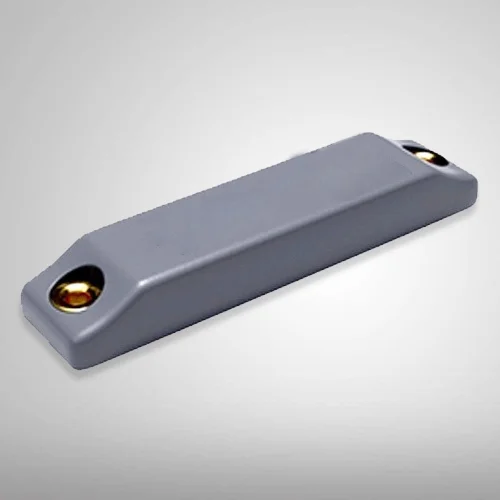

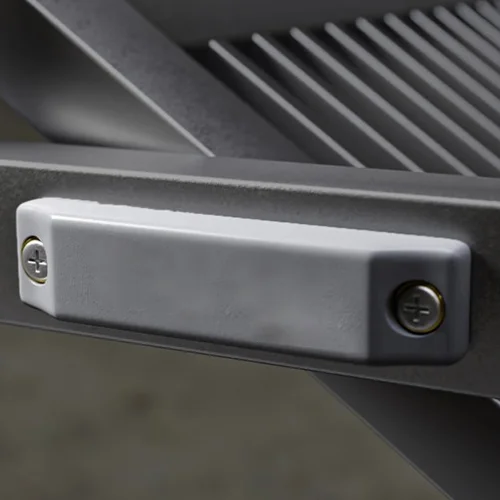

EDGE-11025 RFID UHF Anti-Metal Hard Tags

Global Frequency 868 - 928 MHz, EDGE-11025 RFID UHF Anti-Metal Hard Tags, Size: 110mm x 25mm, Lightweight and Reusable, Long read range up to 22 meters, High Performance RFID Tags for metal surfaces

Features
Operating Frequency: FCC: 902-928MHz ETSI: 865- 868 MHz
Interface Protocol: ISO 18000-63 and EPCglobal Gen2v2

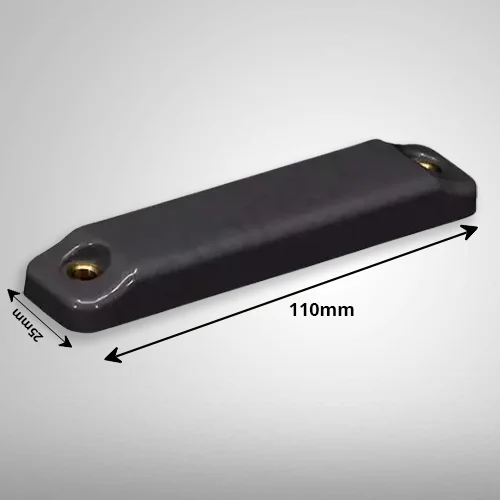

Tag Size: 110 x 25 x 12.5 mm/4.33 x 0.98 x 0.49 in
Chip Type: IMPINJ MONZA M781
Memory Configuration: EPC Memory – 128 bits, USER Memory – 512 bits
Enquire Now

EDGE-11025 RFID UHFAnti-Metal Hard Tags are specially optimized for securing metal assets and give excellent performance when mounted on metallic objects, overcoming interference from metals nearby.

The EDGE-11025 RFID UHF Anti-Metal Hard Tag operates on 868 MHz to 902 MHz and is compatible with ISO 18000-63 and EPCglobal Gen2v2 standards. The tag has been specially created for asset identification and tracking applications ranging from RTIs to other industrial metal assets where the risk of damage is higher.

The on-metal RFID tags provide long-range reading and high accuracy. They also have anti-metal properties, meaning they can be used on metal surfaces without interference. The RFID technology enables efficient and accurate asset tracking, reducing the risk of loss or theft.

Our RFID UHF Anti-Metal Hard Tags are easy to install and can be customized with logos, barcodes, and other crucial information. They are compatible with a variety of RFID readers and software systems, making integration seamless.

The EDGE-11025 RFID UHF Anti-Metal Hard Tag is suitable for applications in retail, inventory management, asset tracking, warehouse management, supply chain, and manufacturing applications.

These hard RFID tags are designed to be used in harsh environments where metal surfaces can interfere with the performance of traditional RFID tags.


Application of UHF Anti-Metal Hard Tags

• Asset Management

• Tool Management

• Logistics

• Supply-Chain Management

• Tools & Equipment in a Factory

Specifications
Operating Frequency FCC: 902-928MHz ETSI: 865- 868 MHz
Interface Protocol ISO 18000-63 and EPCglobal Gen2v2
Tag Size 110 x 25 x 12.5 mm/4.33 x 0.98 x 0.49 in
Chip Type IMPINJ MONZA M781
Memory Configuration EPC Memory – 128 bits, USER Memory – 512 bits
Read Range Upto 22 meter
Data Retention 50 Years
Write Cycle Endurance 100,000 cycles
Yield 100 %
Material ABS
Attachment Screw , Riviting
Operating Temperature -40 to +85 °C
Storage Temperature -40 to +85°C
IP Rating IP68
