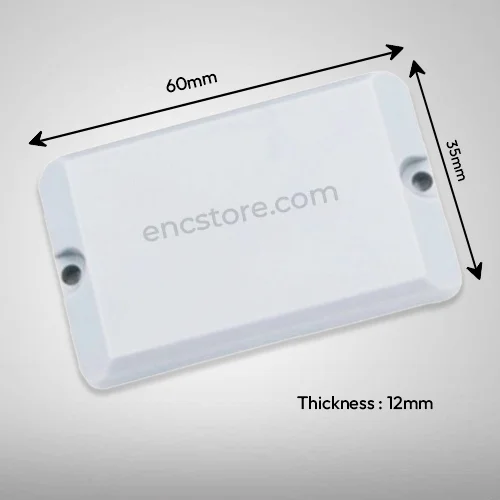

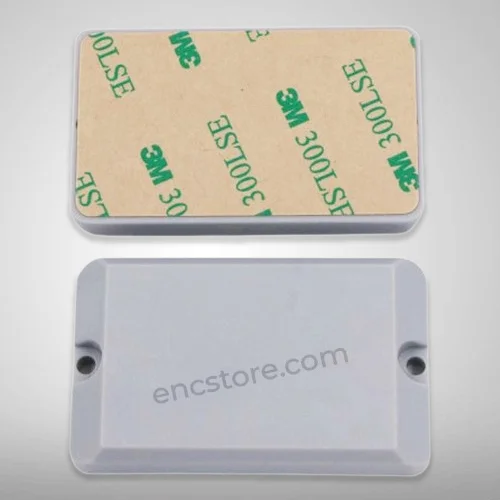

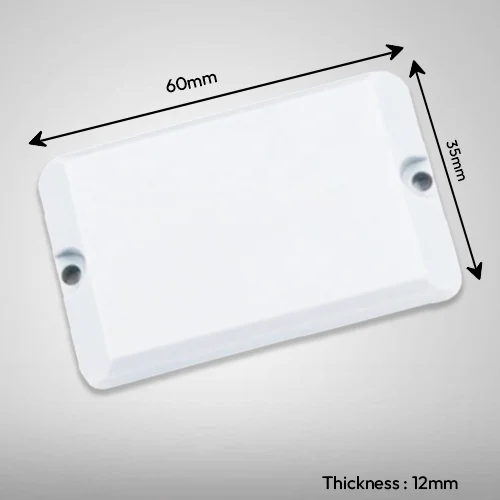

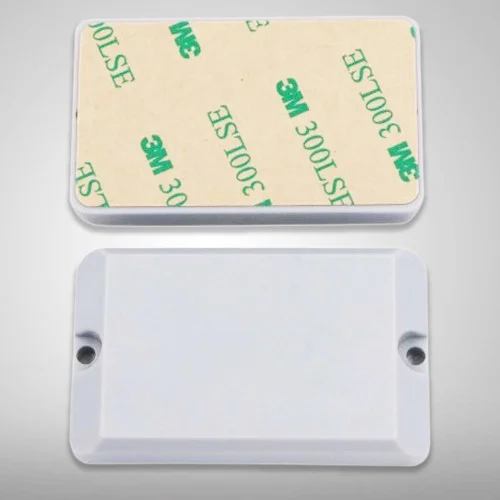

UHF RFID On-Metal Hard Tags

Ultra High frequency, 865–867 MHz, RFID Hard tag, Size: 60mm X 35mm (White), Reading Range: upto 8m, for Asset Tracking, Tool Tracking

Get Latest Price
Features
Operationg Frequency: 865–867 MHz Ultra High Frequency(UHF)
Communication Protocol: ISO 18000-6C EPC Clas 1 Gen 2
Color: ABS
Standard Label Size: 60mmX35mmX12mm
Read Range: 6-8 Meter
Enquire Now

RFID Hard Tags are Rugged in nature, durable & Tamper-Proof. These tags come in different shapes and sizes so they can be easily applied on all types of surfaces and on/off the metal product, these tags are available in both High Frequency (HF) and Ultra-High Frequency (UHF). An RFID tag is attached to the back side of the surface. They are used in applications where it is necessary to track and identify metal objects, such as containers, pallets, and other industrial assets


Features

• Operates in the UHF frequency range of 865-867MHz

• Read/write capabilities

• Can be used on metal surfaces and in harsh environments

• Compact design

• Highly resistant to weather, shock, and vibration

• High write/read range of up to 10 meters

• Small size for easy integration into existing systems


Application

• Asset Tracking,

• Pallet Tracking,

• Logistics & Supply-Chain Visibility,

• Tools & Equipment in a Factory,

• Plants & Machinery

Operationg Frequency 865–867 MHz Ultra High Frequency(UHF)
Communication Protocol ISO 18000-6C EPC Clas 1 Gen 2
Color ABS
Standard Label Size 60mmX35mmX12mm
Read Range 6-8 Meter
Operating Temperature -20 Degree C to +85 Degree C
Pattern Plain
Mounting rivets or adhesive
User Memory 32 bits
EPC Memory 128 bits
