UHF/Passive RFID Reader, 6dbi linear polarization antenna, Receiving Sensitivity: 60dBm, Frequency: 865–867 MHz, Vehicle management, Personnel management and Goods management

Write a review
Features
Operating Frequency: 865–867 MHz Ultra High Frequency(UHF)
Air Interface Protocol: ISO 18000-6C EPC Clas 1 Gen 2
Reading distance: Up to 6 meters (adjustable)
Working Voltage: 9~12V DC
Working Current: 150mA(Always Read)
Enquire Now
Be the first to review this item
 Write a review

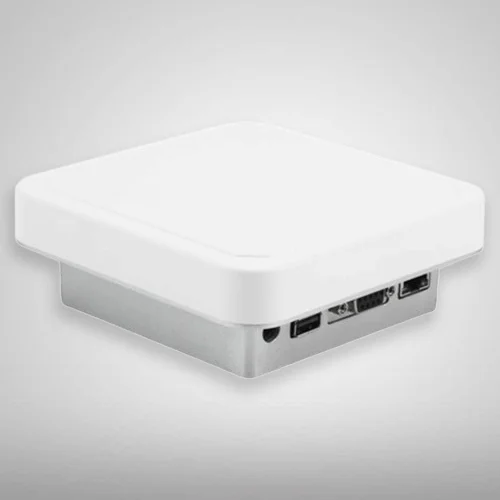

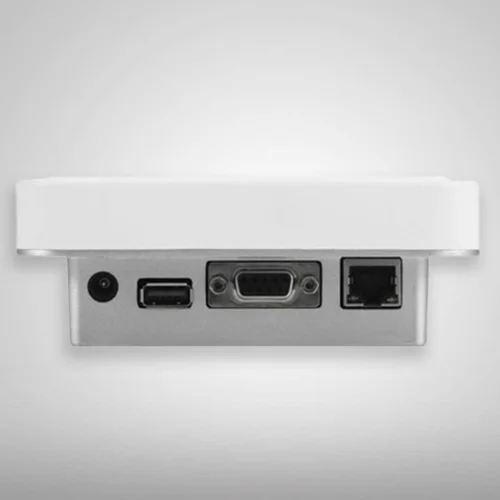

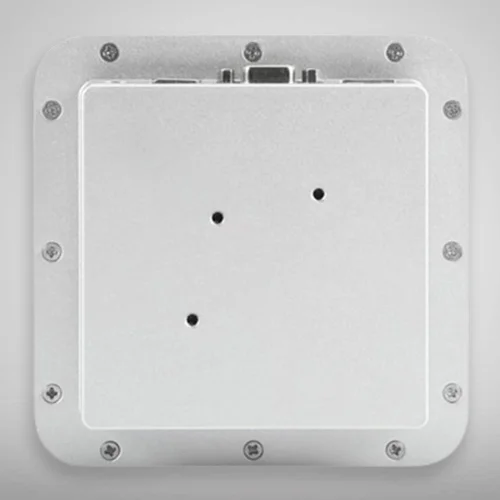

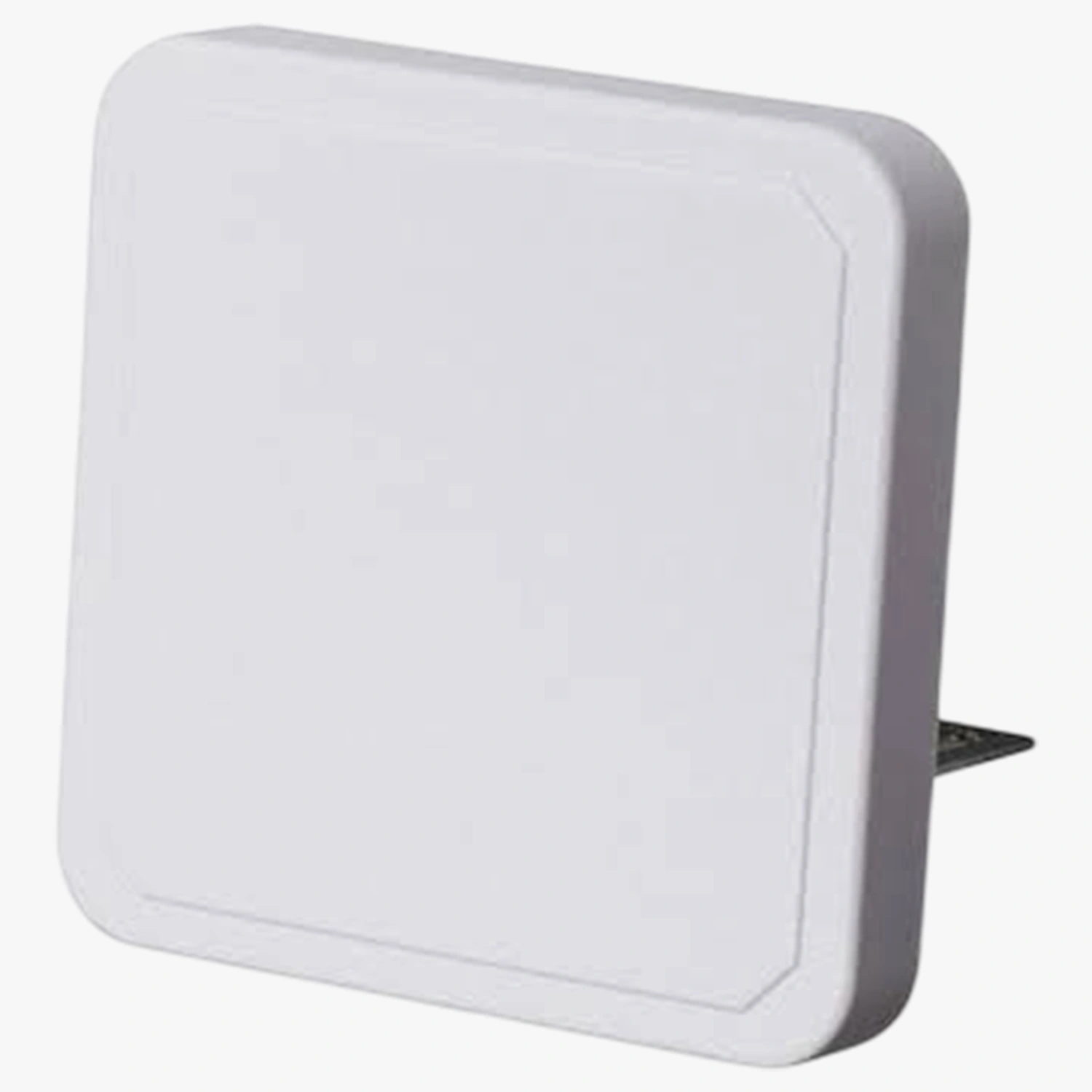

Mid Range unto 6 meters RFID Integrated Reader is a high-performance passive reader/writer with full USB, RJ45 ethernet and wifi connection optional and it also supports Wiegand communication protocol. The maximum power output of this reader/writer is 25dBm, Receiving Sensitivity is -60dBm, and the highest performance makes this reader more suitable for the harsh application environment. It has features of a multi-tags reading rate and can achieve a tag identification rate of 200 tags per second.

Applications

• Personnel and Vehicle access control,

• Manufacturing production line management,

• Warehouse logistic management,

• Assets inventory management etc

Specifications
Operating Frequency865–867 MHz Ultra High Frequency(UHF)
Air Interface ProtocolISO 18000-6C EPC Clas 1 Gen 2
Reading distanceUp to 6 meters (adjustable)
Working Voltage9~12V DC
Working Current150mA(Always Read)
Working Temperature-20 °C – 60 °C
Dimension260mm x 260mm x 65mm
Multi-tags Reading200tags/s
Antenna6dbi linear polarization antenna
IP GradeIP64
Receiving Sensitivity-60dBm
Maximum Power Output25dBm
