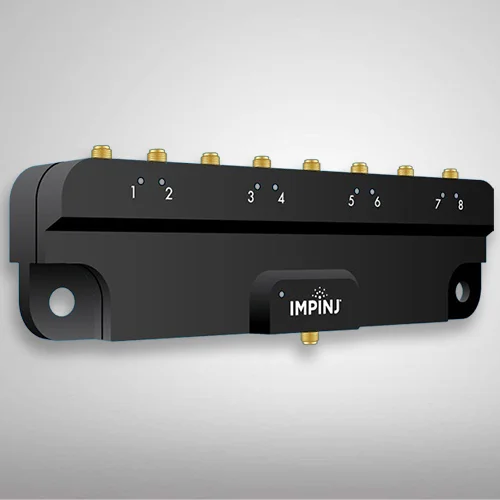

The Impinj R700 Antenna hub comes with 20 MW max power consumption, 1 input, and 8 Output Ports to connect more antennas with built-in R700 reader integration, and works on UHF 865–867 MHz frequency

Write a review
Features
Operationg Frequency:: 865–867 MHz Ultra High Frequency(UHF)
Power Consumption: 15 mW typical | 20mW Max
Input: RF Input: SMA female (connects to SMA male)
Output: 8 RF Outputs: SMA female (connects to SMA male)
Mounting Options: Two 1/4 in mounting holes
Enquire Now
Be the first to review this item
 Write a review

Get the latest Impinj R700 Antenna hub that comes with 1 input and 8 output ports (SMA female) with built-in R700 reader integration for easy setup. The R700 Antenna Hub by Impinj Inc. is a lightweight, smart solution to connect multiple antennas to a single Impinj R700 reader while saving costs and boosting RF signals minimizing signal power loss through cables.

The Impinj R700 Antenna hub is a cost-effective tool for multiple IoT solutions with distinct read zones such as tool tracking and smart shelving operations where a single R700 RFID Reader covers multiple read zones, offering great scalability.

Using the antenna hub, one can utilize an Impinj R700 reader with 4 ports to deploy 32 antennas while limiting the number and length of cables being used, saving on deployment costs and minimizing the RF signal loss through the cables.

The R700 Antenna hub by Impinj operates on UHF 865-867 MHz frequency range, is powered by the R700 RFID reader itself, and is designed for outdoor and indoor settings with IP50 rating, high humidity, and temperature resistance.

At EnCstore, we offer various RFID readers, tags, RFID printers, and antennas from popular brands such as Impinj Inc. and Zebra Technologies Corp., available at competitive prices and pan-India delivery.

Applications of Impinj R700 Antenna Hub

• Tool Tracking

• Smart shelving in retail and inventory management

• Asset management

• Inventory closets

Specifications
Operationg Frequency: 865–867 MHz Ultra High Frequency(UHF)
Power Consumption 15 mW typical | 20mW Max
Input RF Input: SMA female (connects to SMA male)
Output 8 RF Outputs: SMA female (connects to SMA male)
Mounting Options Two 1/4 in mounting holes
Antenna Port Numbering 1-32 on Antenna Hubs; 1, 9, 17, 25 on native ports
Dimensions 173mm x 53mm x 20 mm
Insertion Loss 1.7 dB (typical)
Return Loss 30 dB typical (common port) | 27 dB typical (antenna ports)
Max Input Power 33 dBm
IP Rating IP50
