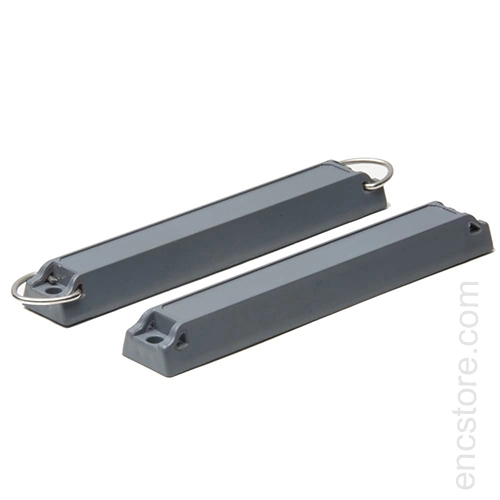

Passive RFID Mount On Metal Tags, Rivet or Screw Mounting, Long read range metal tags. High performance, Frequency: 865–867 MHz , IP Rating – 68, Difficult to damage

Check Availability
Write a review
Operating Frequency: 865 - 867 MHz
Communication Protocol: ISO 18000-6C EPC Class 1 Gen 2
Read Range: Up to 6m
Chip Type: Alien Higgs 3
Tag Material: ABS
Enquire Now
Be the first to review this item
 Write a review

Mount On metal RFID tags or Metal Mount RFID Tag prevent interference when attached to a metal asset for tracking and tracing purposes. Metal objects in manufacturing plants, hospitals, labs, etc. cause radio wave interference, rendering common RFID tags useless. This is where Metal Mount RFID Tag in handy for tracking and identification needs.

EnCStore offers a variety of RFID mount on metal tags that work well against interference from metal surfaces and provide long-range tracking. These tags follow the ISO 18000-6C EPC Class 1 Gen 2 communication protocols and work in the ultra-high frequency (UHF 865-867MHz) range to transmit data.

Metal mount RFID tags are ideal for real-time tool tracking, vehicle and container tracking, and asset and inventory management. These RFID tags for metal surfaces are also best suitable for access control systems, parking management systems, and security at office buildings and housing societies.

EnCStore Metal mount RFID tags are resistant to harsh weather conditions and harsh-industrial environments such as extreme temperatures, humidity, and UV radiation and provide protection against corrosion and abrasion in factories and warehouses. In warehouse and inventory management, mount on metal tags can be attached to metal pallets, bins, etc., providing interference-free identification and tracking.

These On-Metal Rain RFID hard tags are available in various shapes, sizes, and frequency ranges, depending on the application and designed to be secure with an anti-tamper mechanism that prevents any unauthorized access to the tag. These RFID tags also feature a robust mounting system that secures the RFID tags from being removed or dislodged.

Application of Metal Mount RFID Tags:

• Asset Tracking,

• Tool Tracking,

• Medical Equipment,

• Retail,

• Warehouse Storage Rack,

• Manufacturing,

• Container Tracking

Operating Frequency 865 - 867 MHz
Communication Protocol ISO 18000-6C EPC Class 1 Gen 2
Read Range Up to 6m
Chip Type Alien Higgs 3
Tag Material ABS

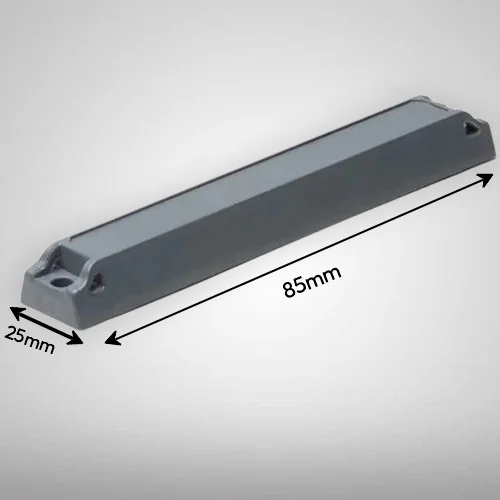

Tag Size 85mm(L) x 25mm(W)
Applicable Surface Metal Surfaces
Attachment /Mounting Method Screw
Operating Temperature -40°C to +85°C
Storage Temperature -40°C to +85°C
IP Ratings IP68
