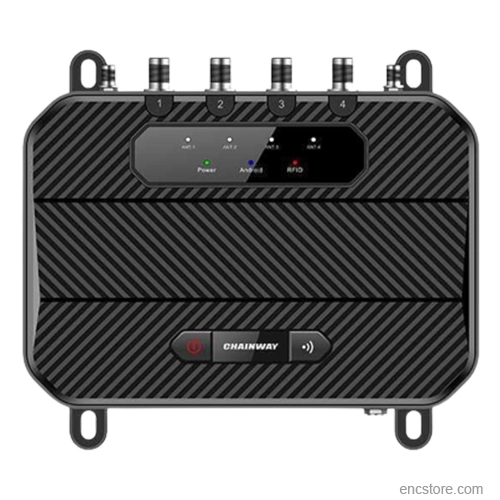

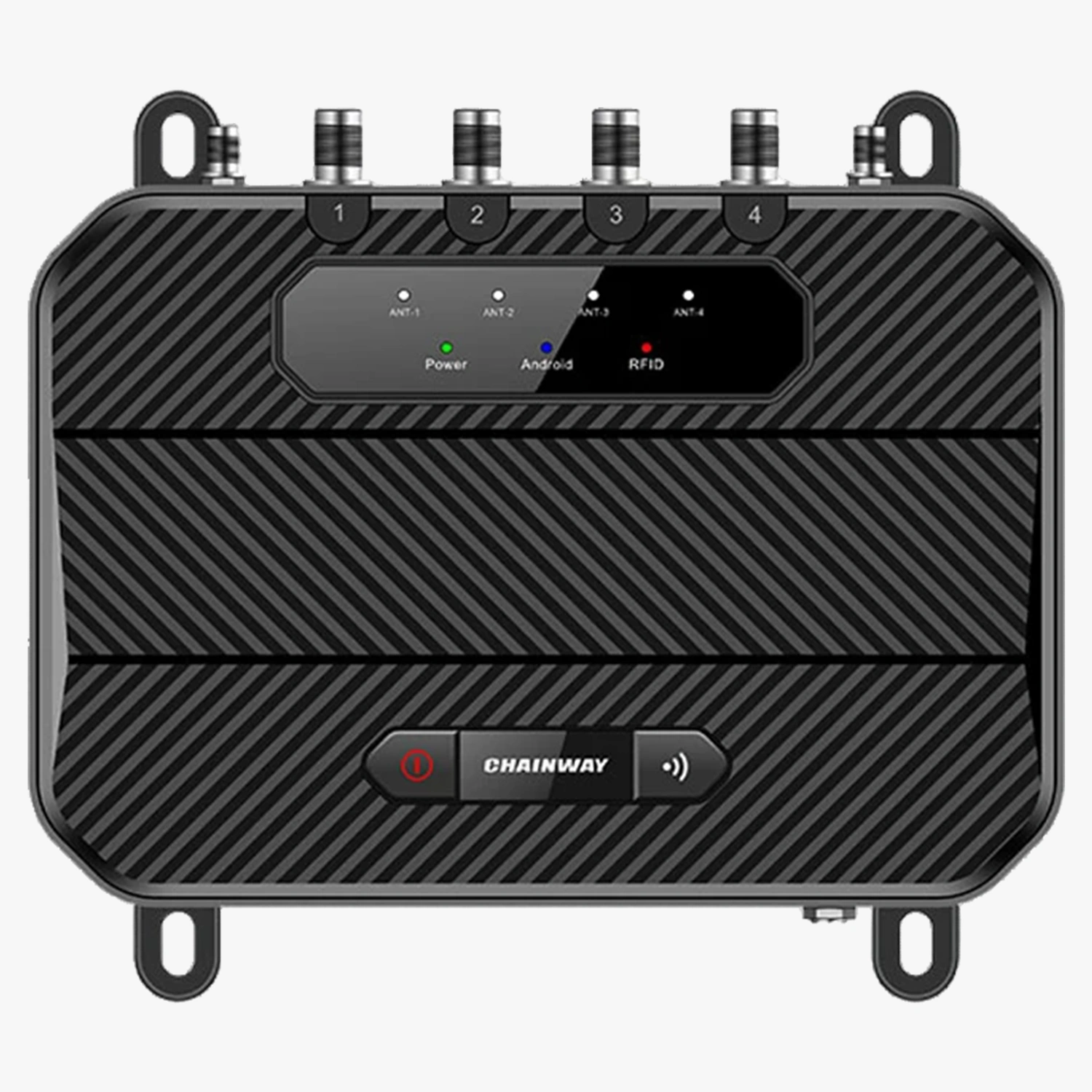

Chainway URA4 Fixed RFID Reader, Android OS, 4 Ports, 4G

The URA4 4-port long read range UHF RFID Android reader is a high performance, wall-mountable RFID fixed Reader which supports RS232, RJ45(POE / POE+), HDMI, USB, and GPIO connectivity.

Write a review

Features

Brand: Chainway
Operating Frequency: 865 - 928 MHz
Communication Protocol: EPCglobal UHF Class 1 Gen 2 v2 (ISO 18000-63)
Max Receive Sensitivity: < -84dBm
Max Read Rate: 1300+ tags/sec
GPIO: 4 Input Optical-couplings, 4 Output Optical-ouplings, isolation, 1 Wiegand (optional)
45000.00Ask Latest Price
Buy On Call
Order via Chat

Why Buy From EnCstore?

  • Authorized RFID Solution Provider.
  • GST Invoice & Billing Available.
  • Expert Support Before & After Sale.
  • Pan India Delivery.
  • Bulk Pricing & Best Rates.
  • Installation & Integration Support.

Need Help? Ask Experts

Be the first to review this item
 Write a review

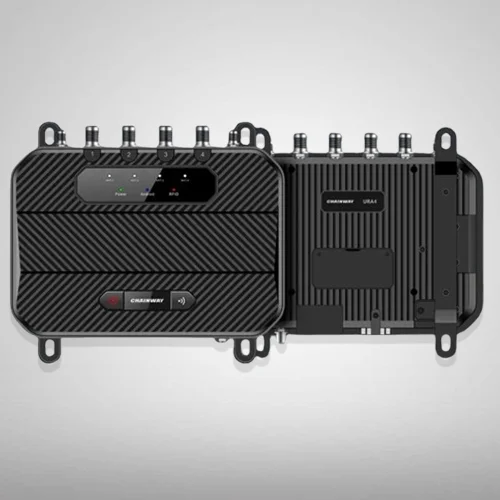

URA4 by Chainway, fixed Android RFID Reader, is a high-performance RFID reader that reads 1300+ tags per second and features a small display, a high-powered radio frequency (RF) antenna, and an internal battery that can last up to 12 hours.

EnCstore offers these RFID Fixed Readers that can read and write a wide variety of RFID tags, including HF, UHF, and NFC at market best prices. These also support ISO 18000-63 EPCGlobal Gen2v2  communication protocols and are compatible with major RFID software solutions. The URA4 supports a 4 channel TNC port with 50 ohm impedance for RFID antenna connections.

URA4 RFID reader also features a built-in buzzer and LED indicators, making it easy to use and configure with a variety of RAIN RFID tags. It also has a USB port, RS232, RJ45 and HDMI ports for connecting to a computer. With its versatile features, aluminium alloy body  and reliable performance, the URA4 passive RFID reader is a great choice for many commercial and industrial RFID applications as follows:

Applications of URA4 Fixed Android RFID Reader

• Access Control,

• Asset Tracking,

• Library Management,

• Logistics and inventory tracking, and

• Manufacturing and production.



Specifications

Operating Frequency865 - 928 MHz
Communication ProtocolEPCglobal UHF Class 1 Gen 2 v2 (ISO 18000-63)
Max Receive Sensitivity< -84dBm
Max Read Rate1300+ tags/sec
GPIO4 Input Optical-couplings, 4 Output Optical-ouplings, isolation, 1 Wiegand (optional)
Power SourceDC (12V), POE (802.3af 13W), POE+ (802.3at 25.5W)
RAM + ROM3 GB + 32 GB, 2 GB + 16 GB (optional)
ProcessorQualcomm 1.8 GHz Octa-core
MaterialAluminium alloy
Dimension214mm (L) x 148mm (W) x 30mm(D)

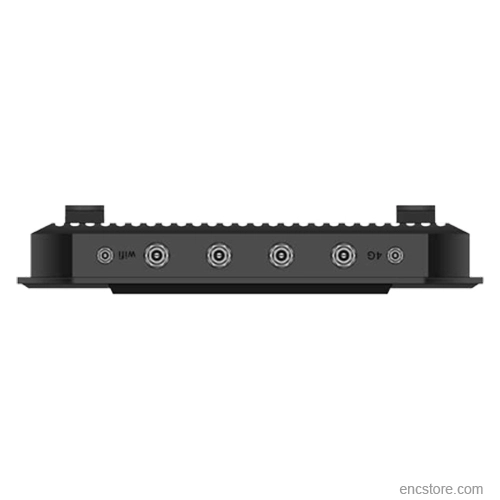

Antenna Ports4 channel 50 Ohm TNC port
Operating SystemAndroid 9.0

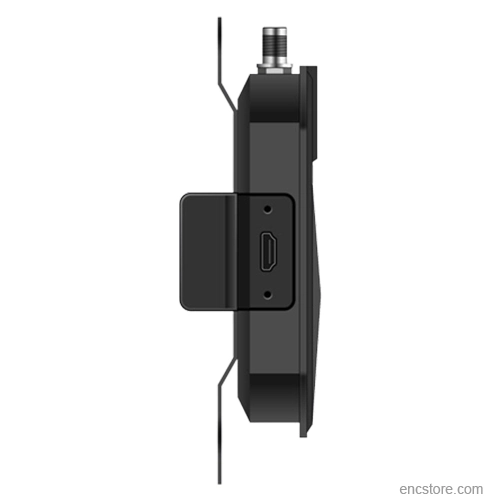

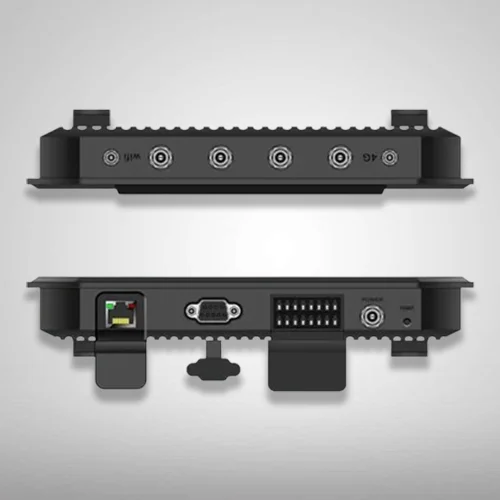

Communication Interface1*RS-232 , 1*RJ45, 3*USB2.0 Type A, 1*Type C, USB Host
MountingWall Mount
Weight1000g
Operating Temperature-25°C to +65°C
Storage Temperature-40°C to +85°C
Impinj Gen2XYes
