RFID technology adoption is on the rise, and consequently, businesses are labelling their assets, products, equipment, etc. with RFID labels. Selecting the right size of label thus becomes crucial as distinct assets require distinct sizes of RFID labels. Across industries such as retail, supply chain, healthcare, manufacturing, logistics, and transportation, RFID labels are being integrated in the frontline operations to improve visibility, efficiency, and traceability. The size of an RFID label directly impacts read performance, compatibility with the tagged item, and printing feasibility. Moreover, regulatory mandates, such as those from Walmart or the U.S. Department of Defense, often specify size tolerances to meet compliance standards for tracking.
Let’s understand why the right RFID label/barcode label size selection is important in detail:
Suggested Products
Why RFID Label Size is Important?
Selecting the right RFID label size directly impacts how well your RFID system performs. RFID labels contain both an antenna and a chip, and their performance depends on several factors linked to label dimensions:
1.Label Size Affects Read Range
At its core, label size directly impacts the antenna design within the RFID inlay, which determines the read range; the distance at which a reader can reliably communicate with the tag. Larger labels accommodate bigger antennas, enabling longer read ranges (up to 30 feet in ultra-high-frequency systems), which is essential for high-volume applications like warehouse logistics or pallet tracking in supply chains.
Conversely, smaller labels suit compact items, such as pharmaceuticals in healthcare or apparel in retail, where space is a constraint. Smaller labels, while more discreet, may have shorter read ranges.
2. Label Size and Surface Compatibility
The size of the label must suit the surface it’s being applied to: flat, curved, or metallic. Oversized labels on small items can peel off or fail to read properly, while undersized ones may have poor signal propagation. And this makes label size an important factor when applying to distinct assets.
Suggested Products
3. Application Requirements
Different industries have varying needs. For example, retail apparel tags must be compact and discreet, while pallet labels in warehouses require larger formats for visibility and performance. Pallets and RTIs (Returnable Retail Items) also require rigid tags that can withstand wear and tear, and that is why RFID hard tags and strip tags are needed for these assets.
4. Data Encoding Needs
Some applications require more data storage or specialized encoding, influencing label design and antenna size. Tags with an appropriate RFID chip with a larger EPC and User memory are thus recommended here. Choosing the right size ensures optimal performance, compliance, and integration with existing RFID infrastructure.
What About Printers? RFID Label Printing

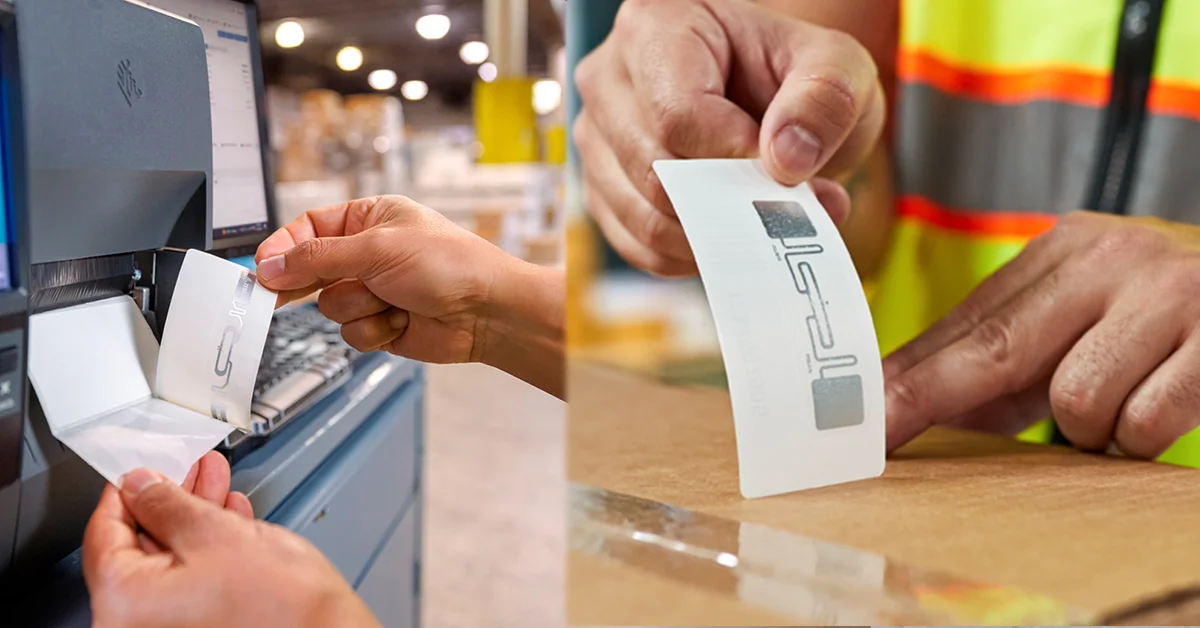

The selection of RFID label size also depends on the RFID or barcode printer you have, as different printers support distinct types of label sizes. Once the right RFID label size is chosen, it’s crucial to ensure that your RFID printer supports it. RFID label printing is more complex than standard barcode printing because it involves encoding data into the RFID chip as well as printing the visual label.
Printer selection hinges on volume, environment, and media compatibility. Desktop models (e.g., Zebra ZD411) handle low-to-medium volumes in office settings, while industrial units like the Zebra ZET411 and TSC T6000e industrial printers endure harsh manufacturing floors with all-metal construction. Mobile printers, such as the ZQ630 Plus, enable on-site encoding in transportation hubs. Software like Zebra's Print DNA simplifies design, ensuring data formats align with EPC Gen2 standards.
A.Printer Compatibility
Ensure the printer supports the inlay size and frequency (UHF, HF, or LF) of your labels. Popular RFID printers from Zebra, SATO, and TSC support a range of label sizes. Zebra’s ZD411, ZD421 desktop printers, ZD621R RFID Desktop printers, ZT411, ZT421 industrial printers, and from TSC, the TSC TH series desktop printers and the TSC DH series desktop printers are popular choices for 4-inch label printing. The TSC Printronix T6000e is also a very popular industrial RFID label printer.
B. Media Handling
Printer width and media path should accommodate the label dimensions. For instance, a 4-inch RFID printer may not handle oversized industrial tags.
C. Encoding Accuracy
Printers must align encoding precisely with the chip position. Label size and inlay placement tolerance can affect encoding success rates. Proper calibration of RFID printers ensures smooth label production, reduced waste, and consistent tag readability in the field.
10 Popular RFID Label Sizes Used Across Industries
The popular RFID or barcode label sizes mentioned below represent a fraction of customizable options but cover 80-90% of standard needs, often embedded with Gen2 UHF inlays for global interoperability. Selection should factor in printer specs, such as core size (typically 1-3 inches) and outer diameter (up to 8 inches), to avoid compatibility issues.
|
S/no.
|
RFID Label Size (W mm x H mm)
|
Typical Use Case / Industry
|
Notes
|
| 1. |
54 x 34 mm
|
Retail item-level tagging, IT assets, laptops
|
Common for apparel, accessories, IT asset labelling, and small consumer goods. Compact and discreet.
|
| 2. |
45mm x 18 mm
|
Supply chain / logistics
|
A popular mid-size hard tag for pallets, bins, or product-level tagging. Balances readability and size.
|
| 3. |
97 mm x 27 mm
|
Shipping and logistics, Assets
|
Smarttrac dogbone, standard for carton, tote, and pallet labeling; assets, offers longer read range.
|
| 4. |
102mm x 152 mm
|
Pallet and shipping labels
|
Compatible with logistics label standards (e.g., GS1). Ideal for warehouse and distribution
|
|
5.
|
38mm x 38 mm
|
Healthcare asset tagging
|
Compact for medical devices, vials, or instrument trays. Used in sterilization tracking.
|
|
6.
|
74mm x 18 mm
|
Retail/Manufacturing / tool tracking
|
Slim design fits small metal or non-metal tools and components.
|
|
7.
|
34mm x 15 mm
|
Jewelry and eyewear tagging
|
Extremely small, designed for retail display items with limited surface space.
|
|
8.
|
75 mm x 25 mm
|
Asset tracking / IT equipment
|
Used for laptops, servers, and office assets. Provides better visibility and read range.
|
|
9.
|
102mm x 25 mm
|
Supply chain / case-level tagging
|
Widely used in retail distribution centres and warehouse automation.
|
|
10.
|
102mm x 102 mm
|
Returnable transport items /pallets/ bulk tracking
|
Ideal for large bins, containers, or logistics crates requiring maximum read distance.
|
How to Decide Which is the Right Label for Your Application?
When deciding on label size, consider:
1.Object size and material (metal, plastic, cardboard, etc.)
2. Required read distance (close-range scanning vs. long-range portals)
3. Environmental conditions (temperature, moisture, chemicals)
4. Printing and encoding equipment compatibility
For example, a retail apparel tag may prioritize aesthetics and size, while a logistics pallet label emphasizes durability and readability through shrink-wrap or long distances.
In short, the right RFID label size can make or break your RFID project. A well-matched label enhances read accuracy, ensures compatibility with your printing equipment, and supports efficient tracking throughout your operations. Whether you’re in retail, healthcare, manufacturing, or logistics, understanding standard RFID label sizes helps streamline your tagging strategy and ensures consistent performance across your supply chain.
If you require guidance on RFID label selection, printing, or deployment, as a reliable RFID supplier, we, at EnCstore.com, can help you identify the optimal label sizes and inlay types tailored to your unique needs.
