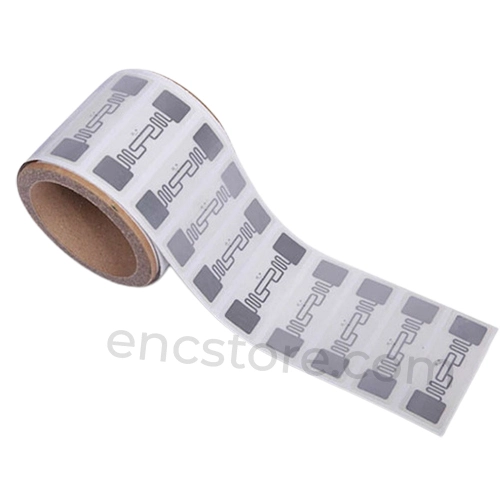

Ultra High Frequency, 865–867MHz, Transparent RFID Wet inlay Tags for Asset Tracking, Tool Tracking, Logistics & Warehouse Management

Write a review
Features
Operating Frequency: 865 - 867 MHz
Communication Protocol: ISO 18000-63 and EPCglobal Gen2v2
Read Range: Up to 10m
Chip Type: Impinj Monza R6
EPC Memory: 198 bits
Enquire Now
Be the first to review this item
 Write a review

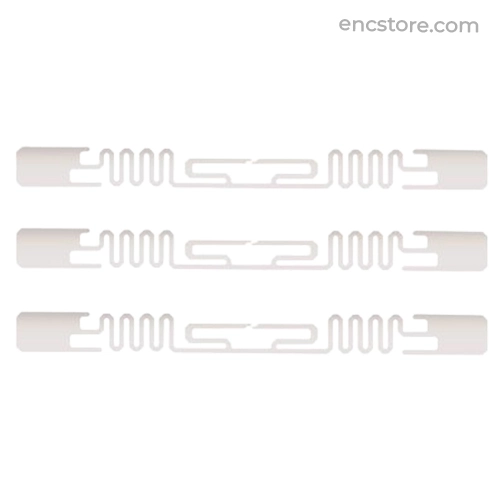

Transparent UHF RFID wet inlay tags are considered “wet” due to their adhesive backing, so they are essentially industrial RFID tags/labels. An RFID Inlay contains an IC/Chip with a dipole antenna. It can just peel it from the paper cover and put it on the product and that will work as perfectly as any other RFID tag or RFID tracking tool that takes out a bit of time to get applied.

Application

• Inventory tracking and access control in stores.

• Asset Management

• Library & Rental Service Management

• Supply Chain Management

Specifications
Operating Frequency865 - 867 MHz
Communication ProtocolISO 18000-63 and EPCglobal Gen2v2
Read RangeUp to 10m
Chip TypeImpinj Monza R6
EPC Memory198 bits
User Memory512 bits
Tag MaterialWet Inlays/Paper Label/Polyester Label
Antenna MaterialAluminium

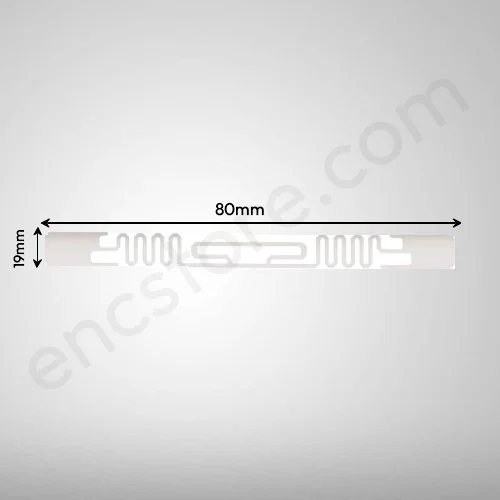

Inlay Size19mm(L) x 80mm(W)
Applicable SurfaceGlass, Plastic, Wood, Cardboard
Attachment /Mounting MethodAdhesive
