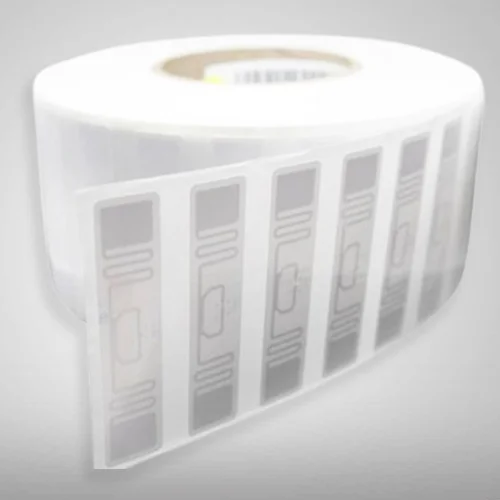

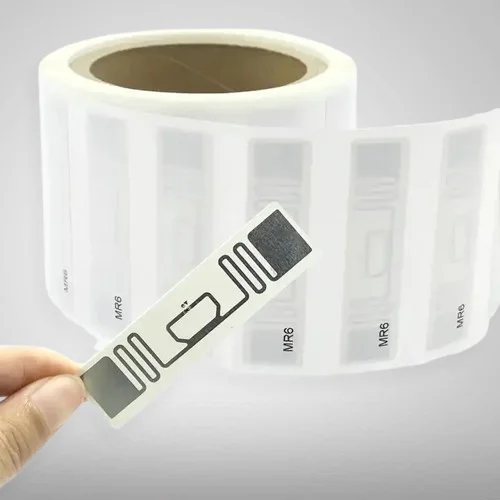

Ultra High Frequency, 860-960 Mhz, PID-9727 UHF RFID polyester Label, Size: 97mm x 27mm in size,Long read range Up to 8 mtr Read Range, High performance RFID Label for metallic and non-metallic assets

Write a review
Features
Operating Frequency: FCC: 902-928MHz ETSI: 865-868 MHz
Communication Protocol: ISO 18000-63 and EPCglobal Gen2v2
Read Range: Up to 22m
Chip Type: NXP UCode 9
EPC Memory: 96 bits
Enquire Now
Be the first to review this item
 Write a review

A PID-9727 long Range UHF RFID Paper Label is a label that works well on various non-metal surfaces, such as plastic or rigid cardboard like cases and surfaces made of glass, makes it useful for deployment in various applications in industry.They are usually made of paper and have an adhesive backing that allows them to be easily mounted to any surface.They use Ultra High Frequency( 860-960 MHz) and ISO 18000-63 and EPCglobal Gen2v2 communication protocols to transmit data, can be read from a wider distance ( upto 22 meter) than regular RFID Label/tags.



Specifications
Operating Frequency FCC: 902-928MHz ETSI: 865-868 MHz
Communication Protocol ISO 18000-63 and EPCglobal Gen2v2
Read Range Up to 22m
Chip Type NXP UCode 9
EPC Memory 96 bits
Write Cycle Endurance 100,000 cycles
Data Retention 50 Years
Tag Material Polyester
Tag Size 97mm(L) X 27mm(W)
Antenna Size 94mm(L) X 24mm(W)
Applicable Surface Glass, Plastic, Wood, Cardboard
Attachment /Mounting Method Adhesive
Operating Temperature -30°C to +80°C
Storage Temperature -30°C to +80°C
IP Ratings IP67
