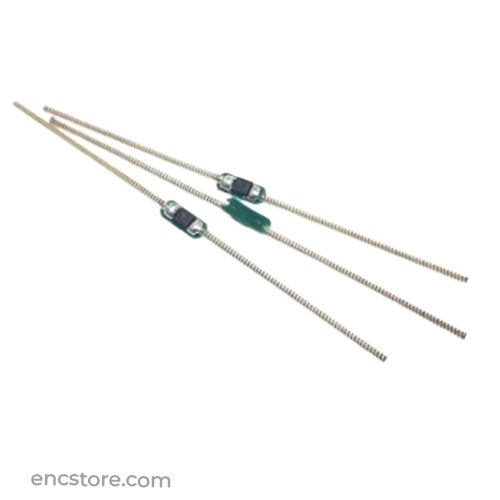

Ultra High Frequency, 865–867 MHz, Flexible Spring Vehicle Tire Tracking Tag, for Tire asset Tracking, Tire factory control

Check Availability
Write a review
Features
Operating Frequency: 865 - 867 MHz
Communication Protocol: ISO 18000-6C EPC Class 1 Gen 2
Read Range: Up to 2.4m
Chip Type: Alien Higgs 3
EPC Memory: 96 bits
Enquire Now
Be the first to review this item
 Write a review

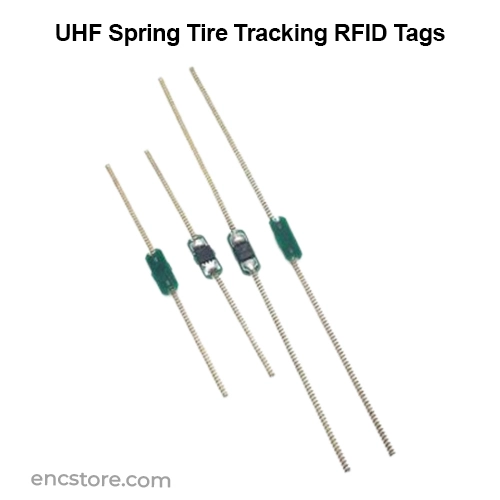

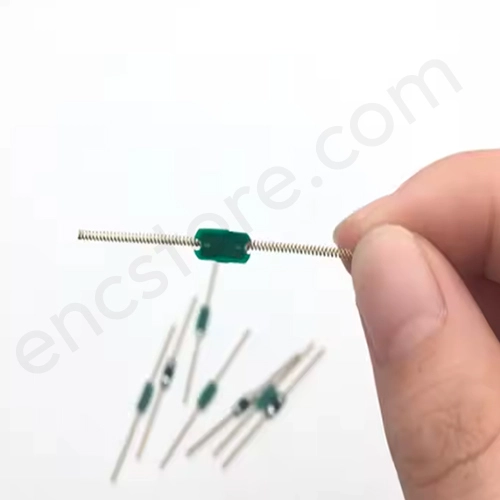

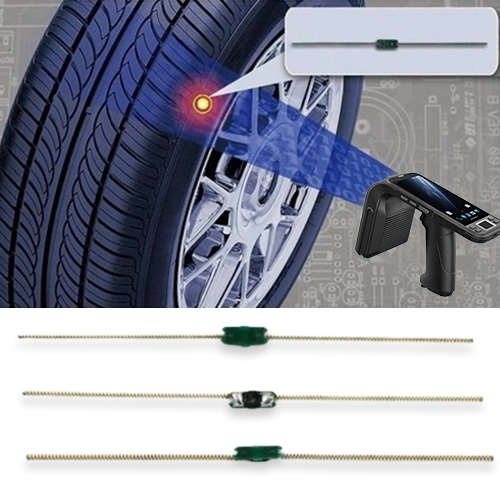

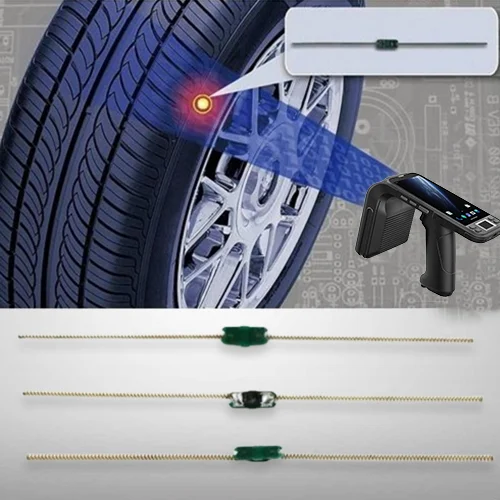

UHF long-range spring tire tracking RFID tags has been developed to be embedded within the tire during the manufacturing process, where it will last the lifetime of the tire. They have very high performance, are easy to install and provide a unique identification number that can be tracked to prevent tire theft and cloning. They feature an embedded RFID chip that stores tire information and can be read by an RFID reader. These tags are made of durable materials that can withstand the harsh environmental conditions of the road.

Application: Tire Factory Control, Tire Asset Tracking, Automotive Factory Tire Tracking, etc

Specifications
Operating Frequency 865 - 867 MHz
Communication Protocol ISO 18000-6C EPC Class 1 Gen 2
Read Range Up to 2.4m
Chip Type Alien Higgs 3
EPC Memory 96 bits
User Memory 512 bits
Write Cycle Endurance 100,000 cycles
Data Retention 10 Years

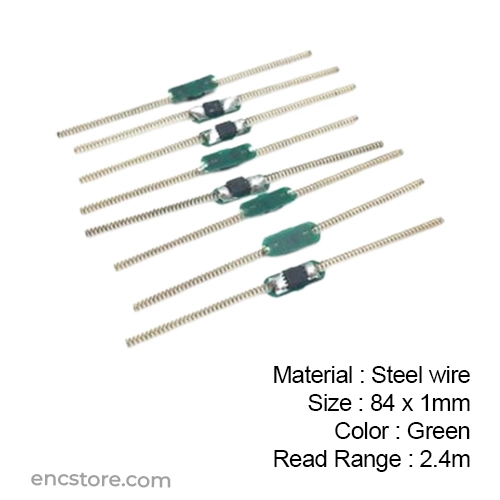

Tag Material Steel wire
Tag Size 84mm(L) x 1mm(W)
Applicable Surface Tires
Attachment /Mounting Method Inner side of the Tire
Weight 0.2g
Operating Temperature -40°C to +85°C
Storage Temperature -40°C to +200°C
