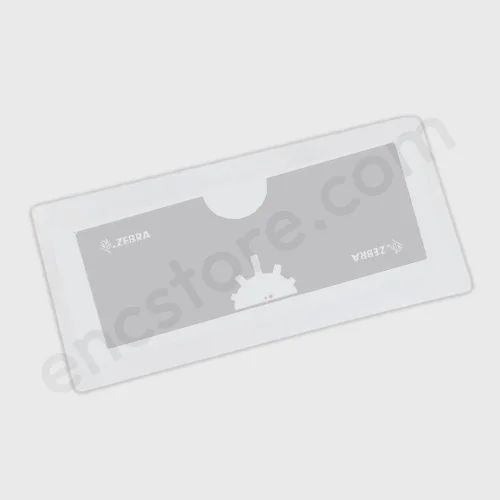

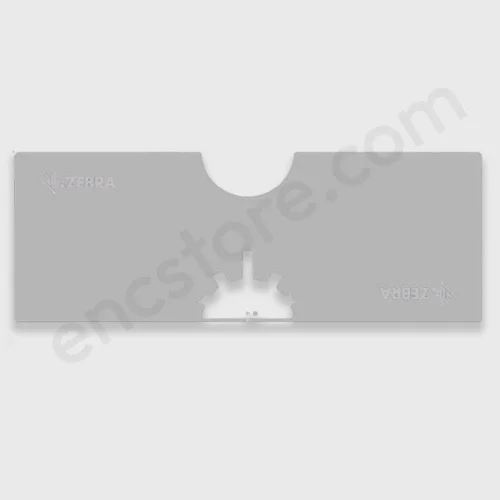

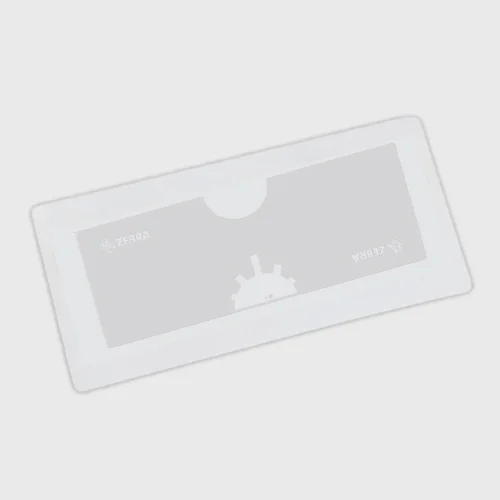

The Zebra ZBR4100 RFID Inlay works on UHF 865-867 offering a long read range, up to 20m, 95mm x 8mm size, designed with UCode9 chip, Suitable for Pallet labeling and transportation

Write a review
Features
Brand: Zebra
Operating Frequency: 865 - 867 MHz
Communication Protocol: ISO 18000-63 and EPCglobal Gen2v2
Read Range: Up to 20m
Chip Type: NXP Ucode 9
EPC Memory: 96 bit
Enquire Now
Be the first to review this item
 Write a review

Enhance visibility across critical assets with Zebra ZBR4100 RFID labels and inlays. Built using the highly advanced NXP UCODE 9 chip, these inlays by Zebra Technologies deliver high read sensitivity and reliable performance for demanding environments such as supply chain, retail logistics, transportation, and industrial inventory control. Designed for both plastic and non-metallic surfaces, the ZBR4100 labels are thermal transfer printable and offer enhanced durability for long-term use.

With an improved -24 dBm read sensitivity and robust 96-bit EPC memory, ZBR4100 RFID tags provide superior encoding accuracy and read ranges up to 20 meters in open-air environments; ensuring seamless item-level tracking and efficient throughput in high-volume operations.

EnCstore offers Zebra ZBR4100, ZBR2100, and other RFID labels and inlays throughout India, along with RFID readers, antennas, printers, and enterprise mobile computers for end-to-end AIDC solutions, at industry best-prices.

Key Features of Zebra ZBR4100 RFID Labels & Inlays

1. High Read Accuracy-Integrated with UCODE 9 chip for ultra-reliable read rates in dynamic environments.

2. Optimized Adhesive-Bonds well to paperboard, plastics, shrink wraps, and lightly curved surfaces.

3. Thermal Transfer Printable-Compatible with Zebra resin ribbons for crisp, long-lasting barcodes and encoding.

4. Industrial-Grade Read Range-Performs consistently up to 20 meters for warehouse, distribution, and inventory tracking.

What are the Applications of ZBR4100 RFID Labels?

• Retail shelf and item tracking
• Inventory control in warehouses
• Inbound and outbound logistics
• Asset tracking across distribution centres

Why Choose ZBR4100 Labels?

• Read Range: Up to 20 meters (free-air)
• Inlay Size: 95mm x 8mm
• Chip: NXP UCODE 9
• EPC Memory: 96-bit
• Print Method: Thermal Transfer
• Material: White TT paper or film with general-purpose adhesive



Related Products:  Zebra RFID PrintersZebra FX9600 ReaderRFD40 Reader, and Zebra Antenna AN480Zebra ZBR2000 Inlays and Tags

Specifications
Operating Frequency 865 - 867 MHz
Communication Protocol ISO 18000-63 and EPCglobal Gen2v2
Read Range Up to 20m
Chip Type NXP Ucode 9
EPC Memory 96 bit
Read Sensitivity -24 dBm
Write Sensitivity -22 dBm
Tag Material Wet Inlays/Paper Label/Polyester Label

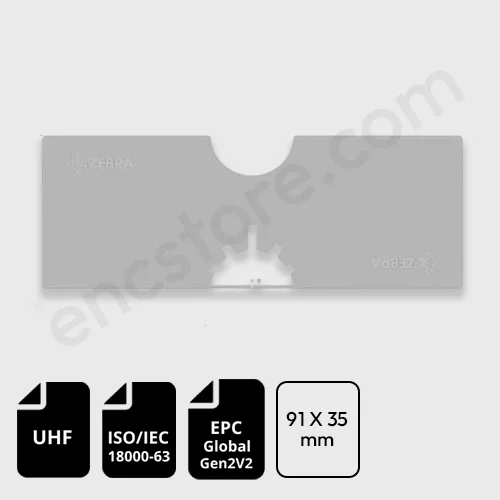

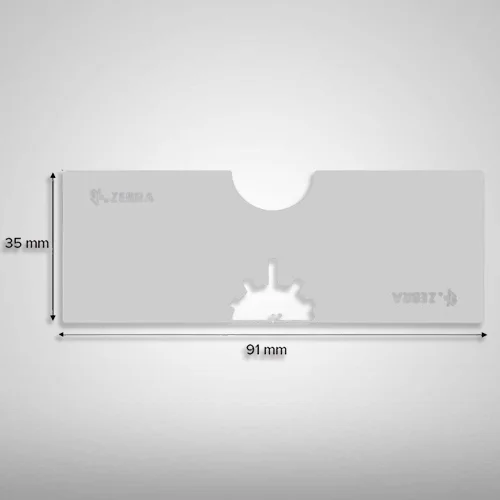

Inlay Size 91mm(L) x 35mm(W)
Applicable Surface Glass, Plastic, Wood, Cardboard
Attachment /Mounting Method Adhesive
