Ultra High Frequency (865 – 868 MHz Frequency), UHF RFID Silicone Laundry Tags, highly durable and waterproof, Long Lasting, up to 200 Washing Cycle, Sewing Mounting

Write a review
Features
Operating Frequency: 865 - 867 MHz
Communication Protocol: ISO 18000-63 and EPCglobal Gen2v2
Chip Type: Alien Higgs 3
EPC Memory: 96 bits
User Memory: 512 bits
Enquire Now
Be the first to review this item
 Write a review

UHF RFID Silicone Laundry Tags are made from durable, flexible, high-quality silicone and feature a UHF RFID chip that can store information such as garment size and style, item cost, and other relevant data. These silicone RFID laundry tags are small in size, lightweight, and waterproof UHF passive RFID tags, designed to be attached to clothing items for real-time tracking and identification purposes.

These RF labels are waterproof, heat resistant, and can withstand high temperatures and harsh chemicals, making them perfect for use in laundry and clothing management applications. The UHF RFID laundry tags operate over UHF frequency 865–867 MHz and follow ISO 18000-6C EPC Class 1 Gen 2 communication protocol to provide a long read range of up to 12m.

These silicone RFID laundry tags, when attached to clothing, use radio frequency signals to provide accurate and efficient tracking of such items, reducing the risk of loss or misplacement. These UHF RFID silicone laundry tags can be easily attached to any garment or linen using a standard sewing machine or special adhesives.

With the silicone RFID laundry tag, laundry managers can streamline their operations and improve their inventory management and RFID technology ensures that all items are accounted for and returned to the correct location.


Applications of Silicone RFID Laundry Tags

• Industrial washing

• Management of uniforms

• Medical apparel management

• Personnel patrol management

• Military Clothing Management.

Specifications
Operating Frequency865 - 867 MHz
Communication ProtocolISO 18000-63 and EPCglobal Gen2v2
Chip TypeAlien Higgs 3
EPC Memory96 bits
User Memory512 bits
Write Cycle Endurance100,000 Cycles
Data Retention50 years
Tag MaterialSilicone

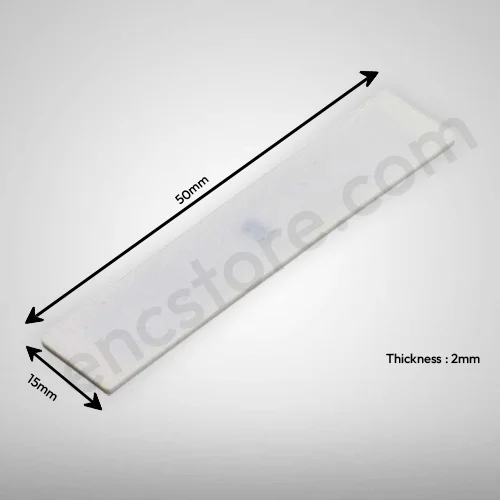

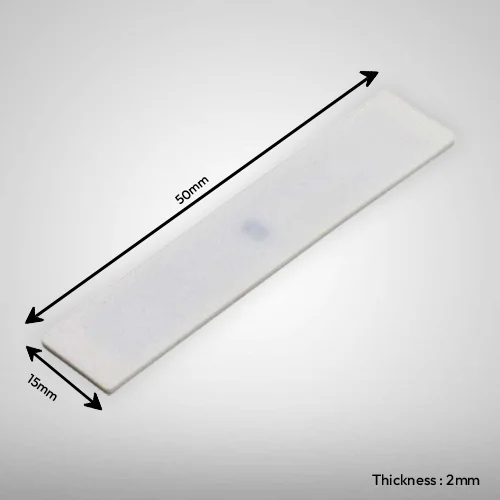

Tag Size50mm(L) x 15mm(W) x 2mm(T)
Applicable SurfaceLinen and garments
Attachment /Mounting MethodSewing and Insert
Weight3g
Read RangeUp to 5m
Operating Temperature-40°C to +85°C
Storage Temperature-40°C to +180°C
IP RatingsIP68
Drying120°C / 30 min
Washing Cycle200
