Ultra high frequency, 865-867 MHz, UHF RFID Mount On Metal Tag, Compact and lightweight, Read range up to 7.8m, IP Rating-68

Write a review
Features
Operating Frequency: 865 - 867 MHz
Communication Protocol: ISO 18000-63 and EPCglobal Gen2v2
Read Range: Up to 11m
Chip Type: NXP Ucode 8
EPC Memory: 128 bits
Be the first to review this item
 Write a review

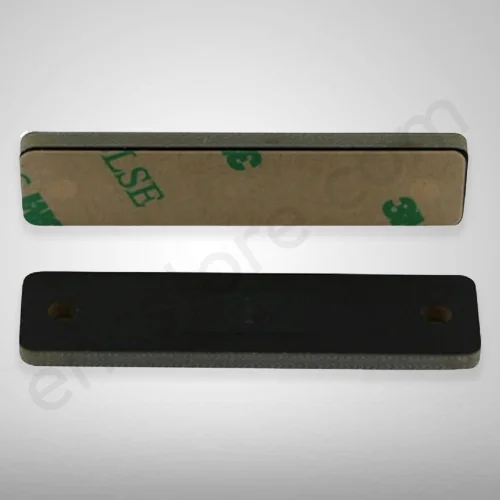

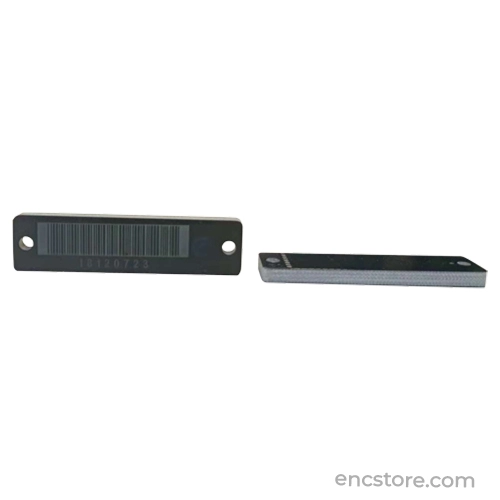

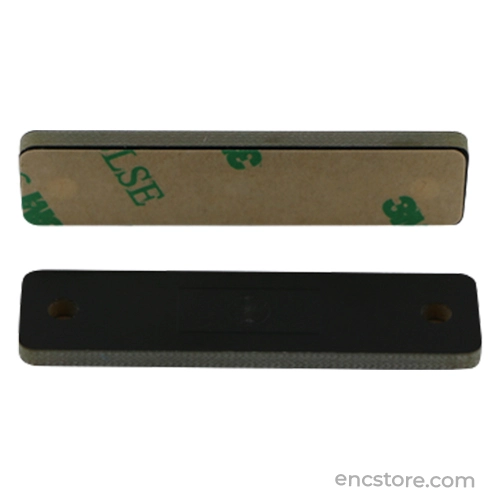

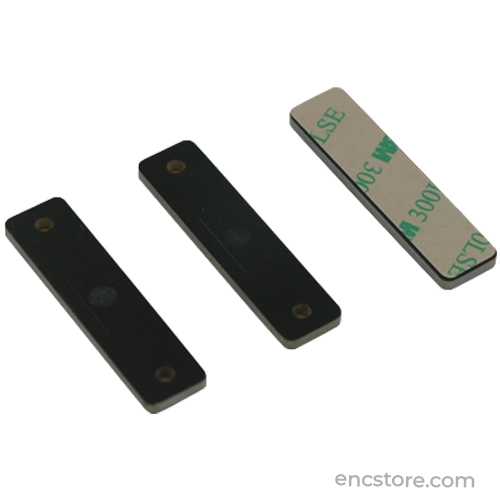

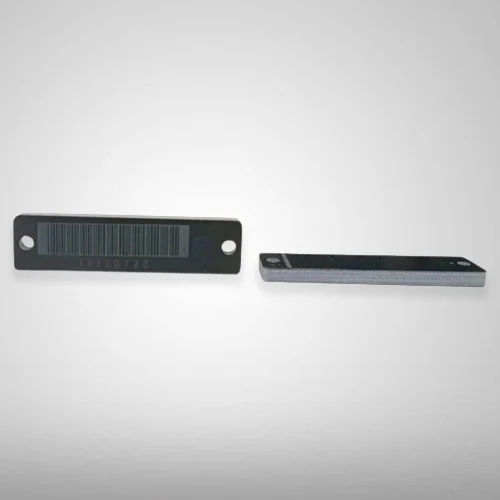

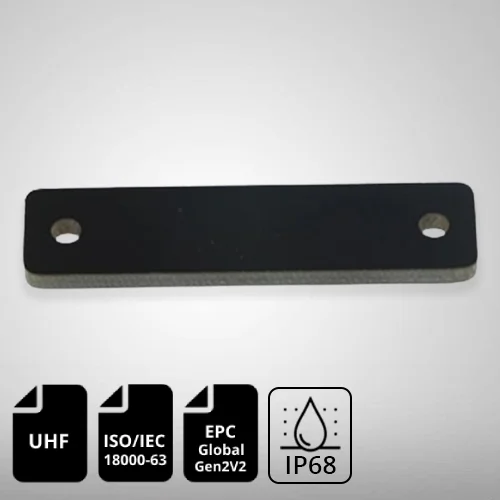

UHF RFID PCB On-Metal Asset Tags are small, flat tags that are designed to be attached to metal assets. They use RFID technology to provide a unique identifier for each asset, allowing them to be tracked and monitored remotely. The tags are typically made of PCB material and contain a UHF RFID chip, antenna, and other components. These tags have a wide range of applications, from retail to industrial, and are increasingly being used in asset tracking and management.

They are typically small, lightweight, and durable and can be read from up to several feet away. The tags can be used to track the location and movement of assets throughout a facility, as well as to identify and authenticate them. These tags can also be used to monitor maintenance and trigger alerts when assets are moved or accessed.

Application: IT asset management, Inventory management, Metallic Asset management, Automotive component tracking, etc

Specifications
Operating Frequency865 - 867 MHz
Communication ProtocolISO 18000-63 and EPCglobal Gen2v2
Read RangeUp to 11m
Chip TypeNXP Ucode 8
EPC Memory128 bits
User Memory512 bits
Write Cycle Endurance100,000 cycles
Data Retention10 Years
Tag MaterialFR-4
Tag Size52mm(L) x 13mm(W) x 3mm(T)
Applicable SurfaceMetal Surfaces
Attachment /Mounting MethodAdhesive or Screw
Weight4g
Operating Temperature-40°C to +85°C
Storage Temperature-40°C to +150°C
IP RatingsIP68

No file found !

FAQs

What RFID Communication Standards are used by RFID tags?

Most UHF RFID tags follow the EPCglobal Class 1 Gen 2 standard (ISO/IEC 18000-6C). This protocol ensures compatibility with standard UHF RFID readers and enables reliable long-range asset tracking.

Why are PCB - based RFID tags preferred for metal assets?

PCB RFID Tags work well on metal because they are durable, avoid signal interference, antenna detuning, and give stable, long-range reading in difficult environments.

What is the cost of RFID PCB Anti-metal tags?

UHF RFID PCB anti-metal tags cost INR 25- INR 40 per tag, depending on the size of the tag, RFID chip, chip memory size, and order quantity. These PCB RFID tags are designed specially for metal assets, metal equipment in manufacturing, supplychain and healthcare, etc. are slightly costly than ABS mount on metal hard tags.

Where to buy RFID PCB anti-metal tags in India?

You can easily buy RFID PCB hard tags, anti-metal tags from EnCstore.com. These tags are quite durable and best suited for tagging metal equipement in rugged, high temperature and high abrasion, rugged environments.
