UHF High Temperature Resistance On-Metal RFID Tag

Ultra High Frequency (865–867 MHz ), High Temperature Resistance Metal RFID Tag suitable for indoor and outdoor production process management, asset management,

Check Availability
0 reviews
Write a review
Features
Operating Frequency: 865 - 867 MHz
Communication Protocol: ISO 18000-6C EPC Class 1 Gen 2
Read Range: Up to 3m
Chip Type: Alien Higgs 3
EPC Memory: 480 bits
Related Products
Black UHF RFID On-Metal Tag
ABS UHF RFID Anti-Metal Tag
UHF High Quality On-Metal RFID Tag
UHF Long Read Range Anti Metal RFID Tag
UHF Long Range Anti Metal RFID Tag
Enquire Now
Be the first to review this item
 Write a review

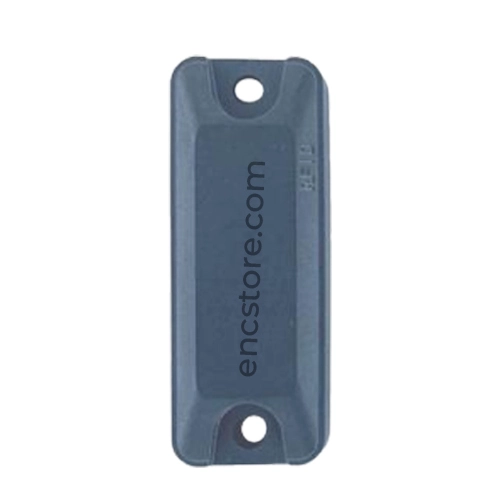

The UHF High-Temperature Resistance On-Metal RFID Tag is a type of radio frequency identification (RFID) tag that is designed to operate in harsh environments with high temperatures. It is a passive RFID tag that uses UHF (Ultra High Frequency) radio frequencies and can be attached to metal surfaces.This tag is comprised of high-temperature-resistant plastic and ceramic material that is resistant to mild acids and bases and can be waterproof. When mounted on a metal surface, it offers good radio frequency performance. The tag uses a UHF chip and can withstand tough environments.

Application

• Industry equipment manufacturing,

• Automobile manufacturing,

• Production line process management.

Specifications
Operating Frequency 865 - 867 MHz
Communication Protocol ISO 18000-6C EPC Class 1 Gen 2
Read Range Up to 3m
Chip Type Alien Higgs 3
EPC Memory 480 bits
User Memory 512 bits
Write Cycle Endurance 100,000 cycles
Data Retention 10 Years
Tag Material High quality engineering plastics

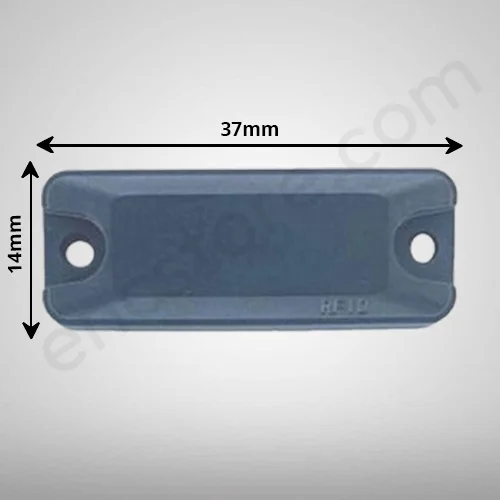

Tag Size 37mm(L) x 14mm(W) x 5.9mm(T)
Applicable Surface Metal Surfaces
Attachment /Mounting Method Adhesive or Screw
Weight 6.5g
Operating Temperature -25°C to +115°C
Storage Temperature -45°C to +200°C
IP Ratings IP67
