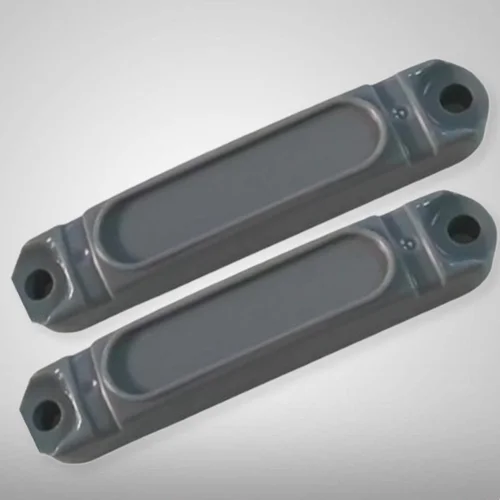

EXO600 UHF RFID Anti-Metal Tag

Ultra High Frequency (865–867 MHz ), Passive RFID Metal Tag, Size: 80mm x 15mm, Compatible with metal and non-metal, IP Rating-68

Get Latest Price
Features
Operating Frequency: 865–867 MHz Ultra High Frequency(UHF)
Communication Protocol: ISO 18000-6C EPC Clas 1 Gen 2
Size: 80mm(L) x 15mm(W) x 12.5mm(D)
Material: ABS rigid plastic
Installation: Screws, rivets installation
Enquire Now

The Exo600 UHF RFID Anti-metal tag is a type of RFID tag specifically designed to be used in metal environments. It is a long range passive UHF RFID tag capable of reading on, off, and near metal surfaces. It has a very small form factor and is designed to be used in tight spaces. It is designed to be used on metal surfaces such as metal racks, metal carts, and metal containers. It is typically used in industrial and commercial applications where metal surfaces are present.

Application

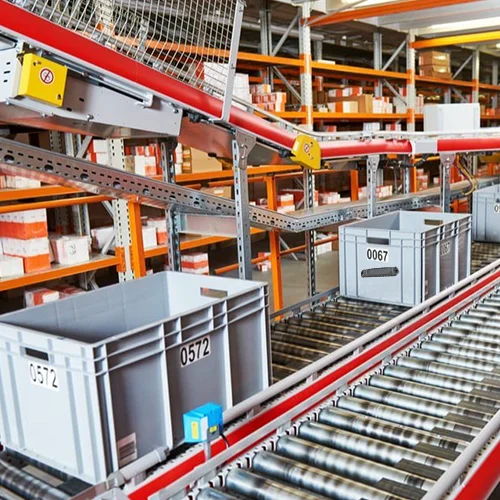

• Logistics and supply chain management

• Automated warehouse management

• Manufacturing process management

• Asset tracking

Specifications
Operating Frequency 865–867 MHz Ultra High Frequency(UHF)
Communication Protocol ISO 18000-6C EPC Clas 1 Gen 2
Size 80mm(L) x 15mm(W) x 12.5mm(D)
Material ABS rigid plastic
Installation Screws, rivets installation
Color Grey
Read Range Up to 6m (on metal), Up to 4m (off metal)
Operating temperature -40 °C to 85 °C
IP Rating IP68
Chip Impinj Monza 4QT
