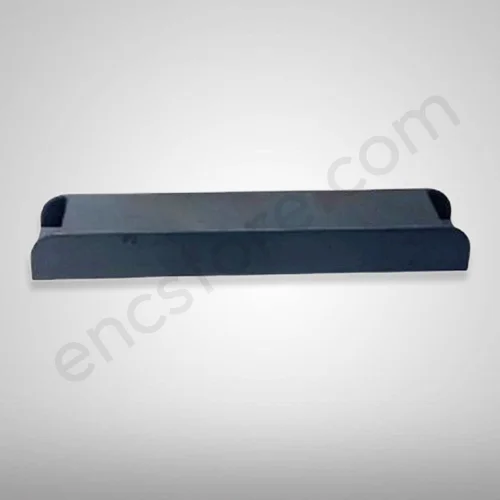

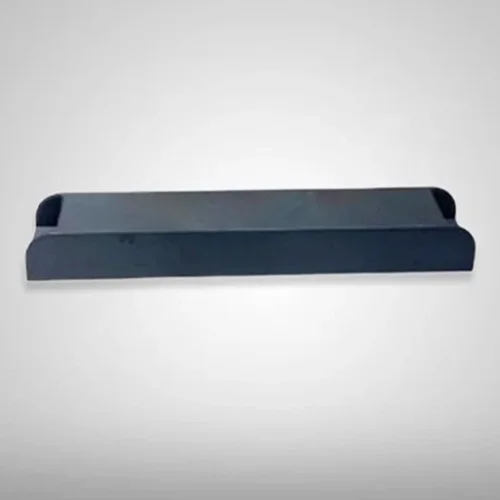

Rock-UHF Long Range RFID Hard Tags

Rock-UHF Long Range RFID Hard Tags with UHF Frequency, Rivet and Screw Mounting, High performance, Read range up to 14mtrs, High-Quality, IP Rating-67, Lightweight and Reusable

By Perfect iD
i
Features
Operating Frequency: FCC: 902-928MHz ETSI: 865-868 MHz
Communication Protocol: ISO 18000-63 and EPCglobal Gen2v2
Read Range: Up to 14m
Chip Type: Impinj Monza R6P/ Impinj M730
EPC Memory: 128 bits /96 bits
Enquire Now

Rock-UHF Long Range RFID Hard Tags are the most suitable for tracking and trace of metal objects such as tools, bins, containers, etc. as these tags overcome the RF interference offered by metal surfaces and provide long range RFID tracking.

When a passive UHF Long Range RFID Hard Tag is in the range of an UHF RFID reader, the RF antenna in the tag catches the RF signal coming from the reader and sends the encoded data to the reader in the form of RF signals. The reader captures this signal and decodes it for the end users. These tags follow the ISO 18000-63 and EPCglobal Gen2v2 communication standard.

EnCStore offers UHF RFID hard metal tags that are easy to use on all metal surfaces and can be affixed with rivets, glue, and magnets. These metal mount RFID tags function well over distances up to 14m and come in an standard dimension of 112mm x 20mm.

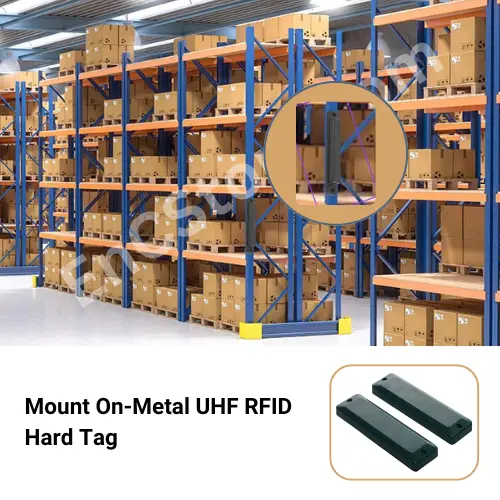

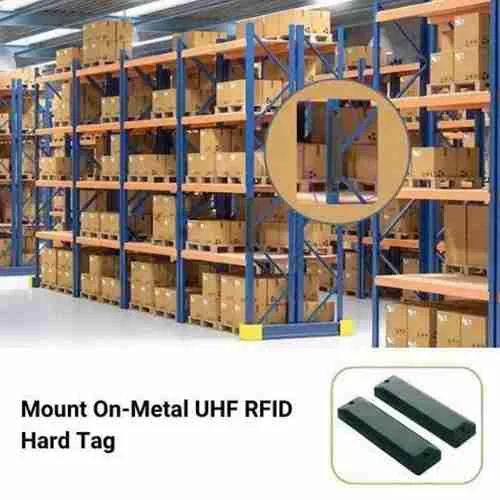

These metal mount RFID tags are ideal for asset tracking, Mount On-metal applications, warehouse management, tool tracking, inventory management, etc., where these tags can easily withstand harsh conditions such as vibrations, shocks, chemical exposures, and temperature changes.


Application of UHF Long Range RFID Hard Tags

• Asset Tracking

• Tool Tracking

• Logistics

• Warehouse Storage Rack

• Manufacturing

• Container Tracking

• Automotive

Specifications
Operating Frequency FCC: 902-928MHz ETSI: 865-868 MHz
Communication Protocol ISO 18000-63 and EPCglobal Gen2v2
Read Range Up to 14m
Chip Type Impinj Monza R6P/ Impinj M730
EPC Memory 128 bits /96 bits
User Memory 32 bits
Write Cycle Endurance 100,000 cycles
Data Retention 50 Years
Yield 100%
Tag Material ABS

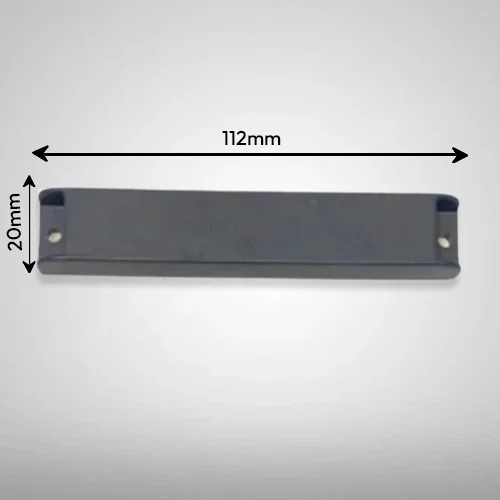

Tag Size 112mm(L) x 20mm(W) x 14mm(T)
Applicable Surface Metal Surfaces
Attachment /Mounting Method Screw
Operating Temperature -40 to +95°C
Storage Temperature -40 to +95°C
IP Ratings IP67
