13.56 Mhz Frequency, 1000 mAh battery capacity, IP Rating 54, Wireless HF RFID & Barcode Hand Scanner

Write a review
Features
Scanner imager: 1D Laser scanner or 2D imager
RFID Operating frequency: 13.56MHz
Operational time per single battery charge: Approx 20 hrs laser scanning every 15s
Battery capacity: 1000 mAh
Operating Temperature: 20°C to +50°C (-4 to 122 °F
Enquire Now
Be the first to review this item
 Write a review

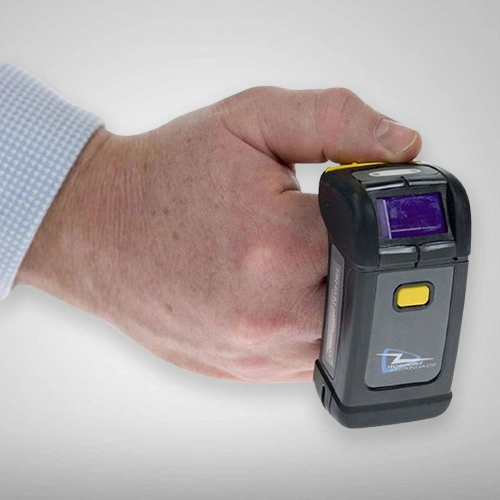

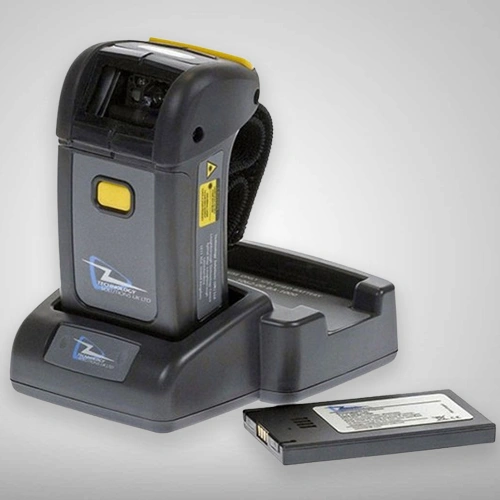

1062 Bluetooth ® HF RFID & Barcode Hand Scanner is battery operated and communicates wirelessly with a host computer via a standard Bluetooth® wireless technology interface. This Bluetooth interface hand scanner enables the operator to use the scanner up to 100m from the host computer, it is compatible with devices running Windows Mobile 5/6, Windows CE, and Windows XP/Vista/7. The dual technology scanner combination also provides the ability to read and write to ISO15693 13.56MHz high frequency smart label/tags transponders.


Specifications
Scanner imager 1D Laser scanner or 2D imager
RFID Operating frequency 13.56MHz
Operational time per single battery charge Approx 20 hrs laser scanning every 15s
Battery capacity 1000 mAh
Operating Temperature 20°C to +50°C (-4 to 122 °F
Storage Temperature 30°C to +60°C (-22 to 140 °F
Charging Temperature 0°C to +45°C (32 to 113 °F
Relative Humidity 5% to 90% RH Non Condensing
Dimensions 92×48×50 mm (3.6×1.9×2.0 inches
Weight 92g (3.25 oz)
Drop Specification Multiple drops to concrete from 5ft
Enclosure material PC/ABS with TPU overmoulds
Compliance EN 300 330, EN 301 489,CSA, CE, FCC
HF Transponder type supported ISO15693 compliant tags
Environmental rating Nominal IP54
Typical HF Read range Max 5cm (2 inches) using ISO7810 size credit card format transponders.
