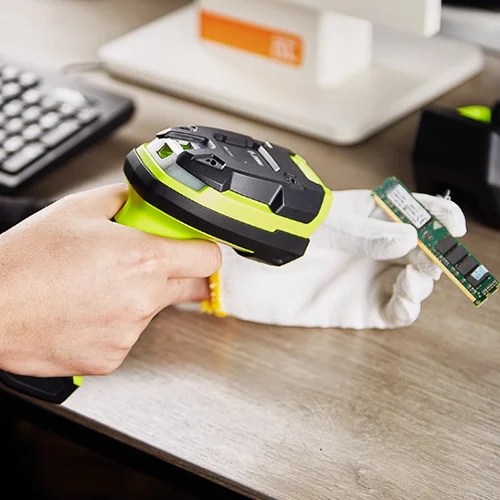

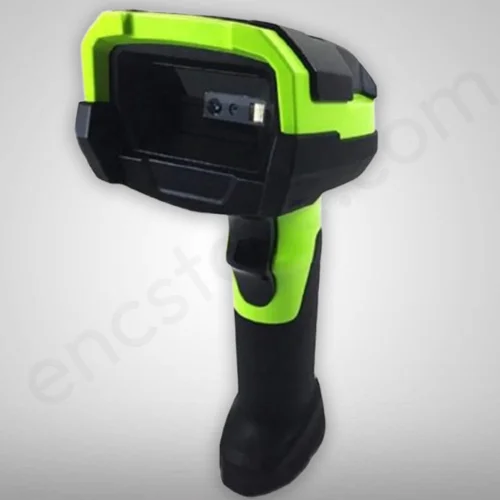

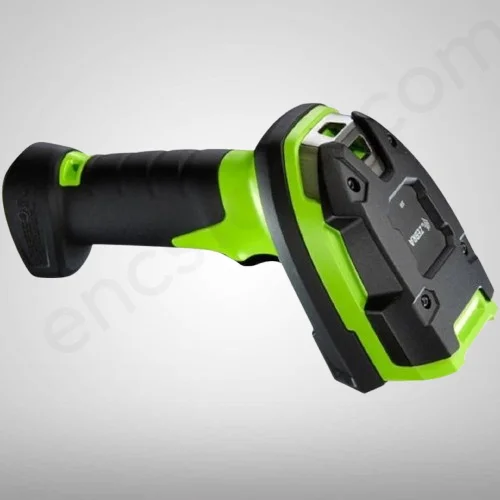

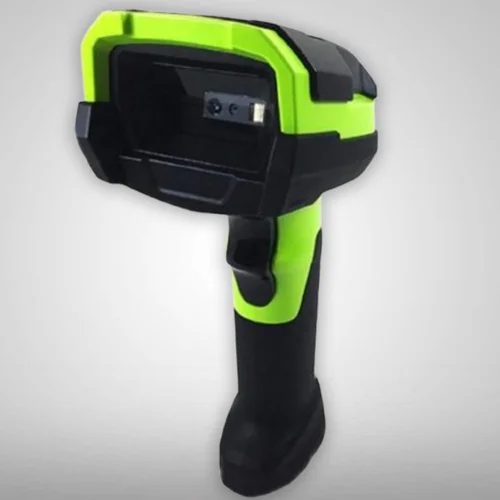

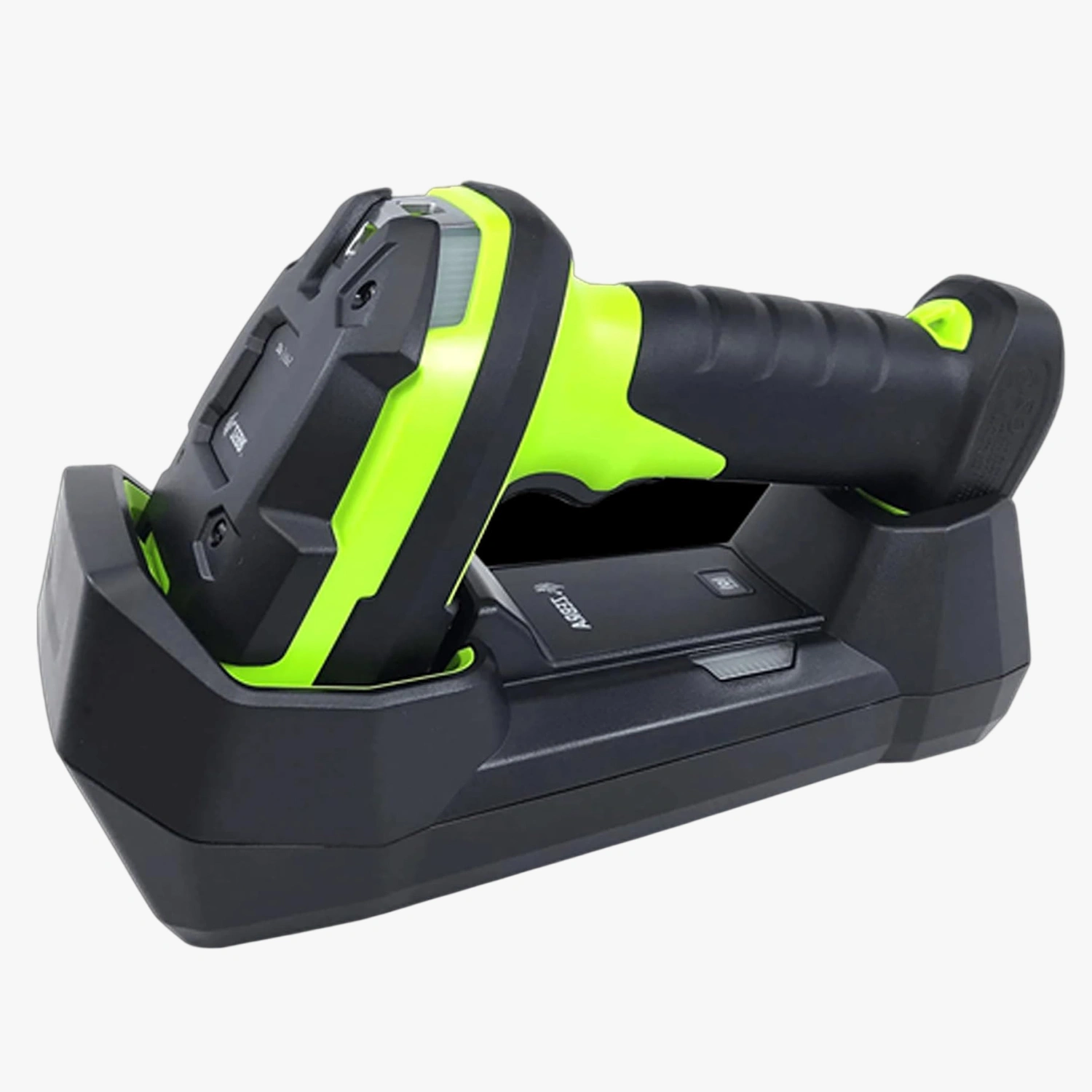

Zebra DS3678-SR ultra-rugged barcode scanner with 1D/2D scanning, IP65/IP68-rated, Bluetooth connectivity, 2.4m drop tolerance, and advanced decoding algorithms, 3100mAh battery, corded, and cordless

Write a review
Features
Brand: Zebra
Dimensions: Corded: 185mm(H) x 76mm(W) x 132mm(D), Cordless: 185mm(H) x 76mm(W) x 142mm(D)
Weight: Corded: 305g, Cordless: 407g
Input Voltage Range: Host powered: 4.5 VDC min., 5.5 VDC max, External power supply: 11.4 VDC min., 12.6 VDC max.
Operating Current: DS3608-SR (corded): 360 mA (RMS typical)
Standby Current: DS3608-SR (corded): 100 mA (RMS typical)
Enquire Now
Be the first to review this item
 Write a review

Buy the Zebra DS3678-SR Ultra-Rugged Scanner, designed for the toughest warehouse and manufacturing environments. With extreme durability (IP65/IP68), Bluetooth connectivity, and lightning-fast 1D/2D scanning capabilities, the DS3678-SR by Zebra scanners maximizes workforce efficiency.



Its DataCapture DNA software provides remote management, multi-code scanning, and intelligent data parsing. While the corded model DS3608-SR weighs 305 grams and comes with 1D barcode scanning, the advanced DS3678-SR cordless model weighs 407g and supports cordless scanning of 1D/2D barcodes. The scanner also supports Digimarc digital watermark technology. The DS3678-SR scanner has a 610nm aimer, and the massive 3100 mAh battery ensures that the scanner runs a full shift, scanning 100,000+ barcodes in a single full charge. It is designed to work in large volume scanning environments such as retail, supply chain, logistics, etc.



The IP65/68 rated rugged housing, 8 feet drop tests on concrete, ensure that you have a durable scanner for harsh conditions.



EnCstore is a leading supplier of premium quality Zebra Barcode scanners, mobile computers, printers, RFID scanners, and antennas. We offer various Zebra DS3600 series scanners in India at industry-best prices.



Key Features of Zebra DS3678-SR Barcode Scanner

1D/2D barcode capture, OCR capability

IP65/IP68 rating with 2.4m drop resistance

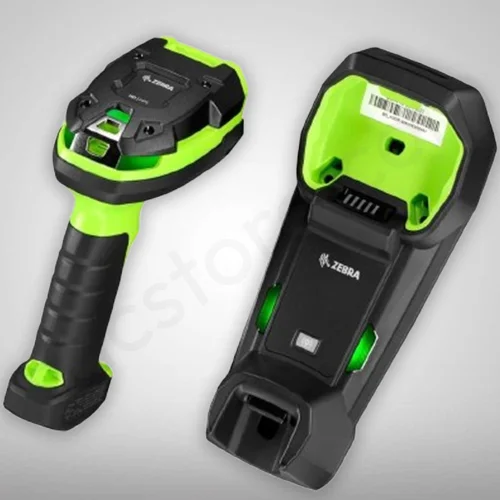

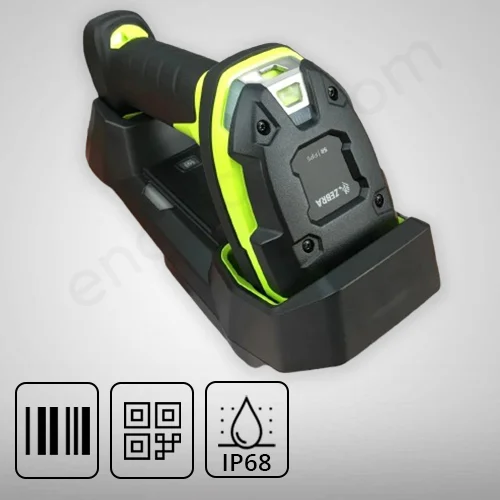

Corded and cordless options with cradle charging

DataCapture DNA with remote device management

An extended range model is available

Image Sensor: 1280x800 pixels

Scan Range: Standard Range

Corded/Cordless: Cordless

Battery Capacity: 3,100 mAh

What are the Applications of the Zebra DS3678-SR Barcode Scanner?

Pallet and carton scanning in logistics

Industrial WIP scanning

Inventory management in warehouses

Outdoor yard management

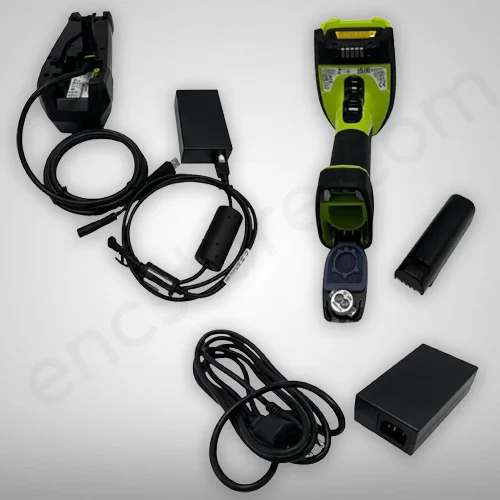

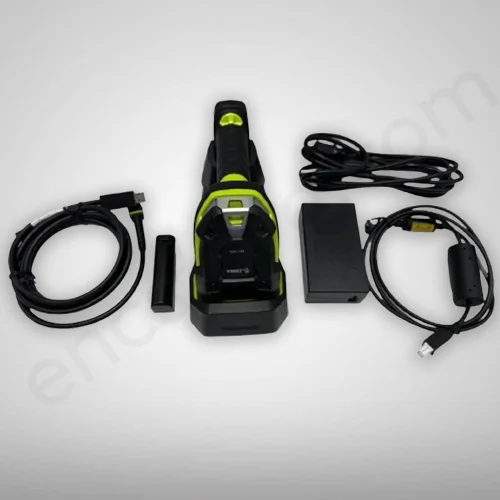

In the Box:

DS3678-SR Ultra-rugged Handheld Scanner

USB cable

Standard cradle (cordless model)

Power supply (cordless model)

DC line cord (cordless model)

Specifications
Dimensions Corded: 185mm(H) x 76mm(W) x 132mm(D), Cordless: 185mm(H) x 76mm(W) x 142mm(D)
Weight Corded: 305g, Cordless: 407g
Input Voltage Range Host powered: 4.5 VDC min., 5.5 VDC max, External power supply: 11.4 VDC min., 12.6 VDC max.
Operating Current DS3608-SR (corded): 360 mA (RMS typical)
Standby Current DS3608-SR (corded): 100 mA (RMS typical)
Supported Host Interfaces USB, RS232, Keyboard Wedge Industrial Ethernet: EtherNet/IP, Profinet, Modbus TCP & Std TCP/IP
Battery PowerPrecision+ 3100 mAh Li-Ion rechargeable battery
Bluetooth Radio Bluetooth Class 1, Version 4.0 (LE), serial port and HID profiles
Data Rate 3 Mbit/s (2.1 Mbit/s) for Classic Bluetooth, 1 Mbit/s (0.27 Mbit/s) for Low Energy
Scans per Full Charge 100,000+
Imager Field of View Horizontal: 42°, Vertical: 28°
Operating Temperature -30° C to 50° C
Storage Temperature -40° C to 70° C
Tumble Specification 7500 3.3 ft./1.0 m tumbles
Sealing IP65 and IP68
