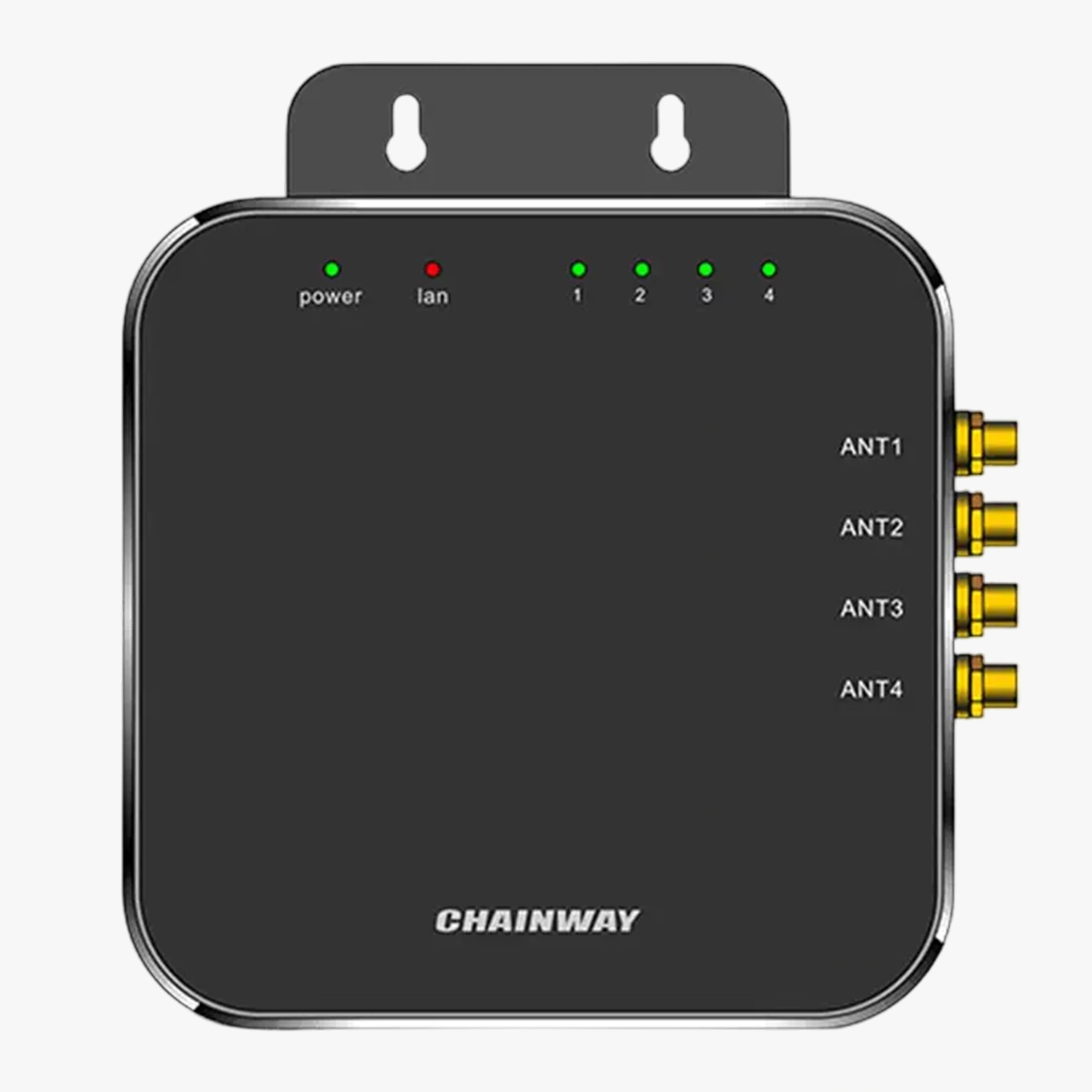

UR4, 4-Port Fixed Long Range UHF RFID Reader

UR4 4-port long read range UHF RFID reader, high-performance, wall-mountable, supports RS232/RJ45, < -84 dBm Receive Sensitivity

Get Latest Price
Features
Operating Frequency: 865–867 MHz Ultra High Frequency(UHF)
Communication Protocol: ISO 18000-6C EPC Clas 1 Gen 2
Material: Aluminium alloy
Input Voltage: DC 9V – 12V
Receive Sensitivity: < -84 dBm
Realated Products
IMPINJ Speedway R220 2 Port Fixed Long Range RFID Reader
IMPINJ Speedway Revolution R420 UHF RFID Reader (4 Port)
U300 Fixed RFID Reader (Android 11)
R1 Dual Frequency UHF & HF RFID Reader/Writer

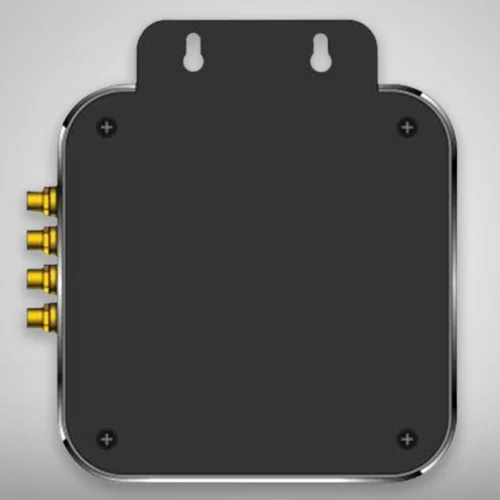

URA4C Fixed Android UHF RFID Reader
Enquire Now
UR4 is a self-developed 4-port fixed UHF RFID reader, configured with an E710 / R2000 RFID chip. It can work with a variety of antenna types and supports RS232 and RJ45. It effectively disperses heat and is resistant to electromagnetic interference. With a high level of integration and consistent capability, the fixed UHF RFID reader can be deployed in complex environments, such as warehousing, archives, library management, banking, laundry, production line, medical equipment cabinets, and vending machines.
Operating Frequency 865–867 MHz Ultra High Frequency(UHF)
Communication Protocol ISO 18000-6C EPC Clas 1 Gen 2
Material Aluminium alloy
Input Voltage DC 9V – 12V
Receive Sensitivity < -84 dBm
Fastest Read Rate 900+ tags/sec
Antenna Port 4 channel 50Ohm SMA port
Operating Temperature -25 °C to 65 °C
Storage Temperature -40 °C to 85 °C
Dimensions 102.8 mm(L) x 102.8 mm(W) x 28 mm(H)
Standby Current < 30mA
Comm Interface RS-232 / RJ45
GPIO 2 channel input optical coupling, 1 channel output electric relay, 1 channel output optical coupling (in reserve)
Storage Temperatre -40 °C to 85 °C
Antenna Supporting a variety of antennas, such as 6dBic, 9dBic
Output Power 1W (30dBm, support +5~+30dBm adjustable)
Output Power Precision +/- 1dB
Output Power Flatness +/- 0.2dB
SDK Windows, Linux, Android
