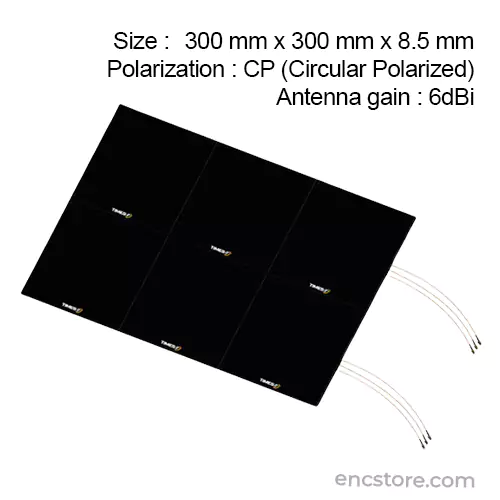

A7030C UHF RFID Multipurpose Antenna (CP)

Circular Polarized, 6dBi antenna gain, High performance , IP54 Max input power , for real-time asset & inventory management

Get Latest Price
Features
Dimensions: 300 mm x 300 mm x 8.5 mm
IP Rating: IP54
Mounting: Integrated mounting guides
Connector Type: SMA female standard
Frequency: 865–867 MHz Ultra High Frequency(UHF)
Enquire Now

A7030C Multipurpose Antenna combines an ultra-low profile and smart scalable design, with the performance of a ultra high frequency circularly polarized (CP) antenna. They are ideal for Vehicle fleet management, Real-time asset and inventory management, shelving systems.



Specifications
Dimensions 300 mm x 300 mm x 8.5 mm
IP Rating IP54
Mounting Integrated mounting guides
Connector Type SMA female standard
Frequency 865–867 MHz Ultra High Frequency(UHF)
Polarization CP (Circular Polarized)
Antenna gain 6dBi
Max. Power Input 3W
Operating Temperature -20° to +55°C
Storage Temperature -30° to +65°C
