Ultra High Frequency, 865-867 Mhz frequency, Passive Anti-Metal RFID Tag, Read range upto 10mtrs, Reusable tag, Waterproof and dustproof

Write a review
Features
Operating Frequency: 865 - 867 MHz
Communication Protocol: ISO 18000-63 and EPCglobal Gen2v2
Read Range: Up to 8m
Chip Type: Alien Higgs 3
EPC Memory: 96 bits
Enquire Now
Be the first to review this item
 Write a review

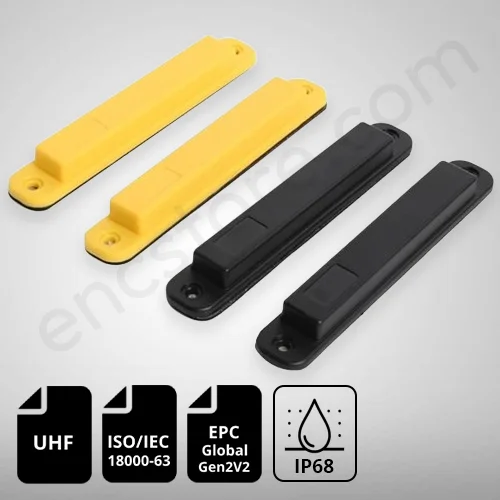

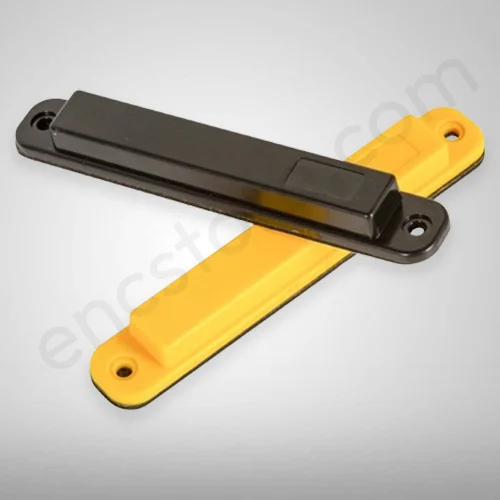

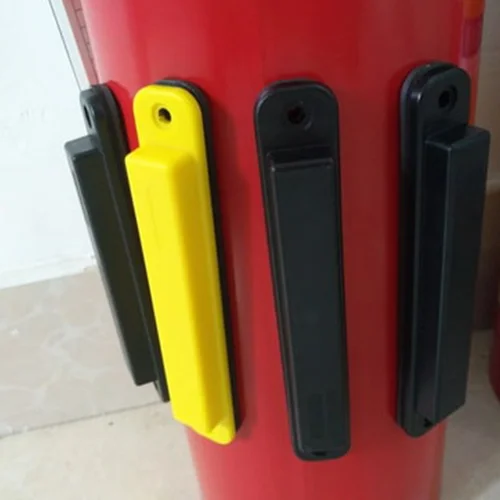

UHF Anti-Metal RFID Tag Strips are suitable for applications in industrial and manufacturing settings where metal surfaces are present. These Metal Mount RFID tags provide resistance against interference from metal surfaces and can be attached to rail cars, vehicles, bins and containers, pallets, and tools using tow screws, rivets, or self-adhesive tape.

EnCStore offers industry-grade RFID anti-metal hard tag strips that use UHF RFID chips to communicate information to an RFID reader. These hard tags are encased in rigid ABS plastic materials and function efficiently in harsh environments.

The anti-metal RFID Tag for asset tracking applications is popular in metallic conditions, supports a long read range of up to 12m, and gives optimum performance when mounted on metallic objects. These UHF anti-metal RFID tags operate in the 865 MHz to 867 MHz UHF frequency range and follow the ISO18000-6C (EPC Class 1 Gen 2) communication standard.

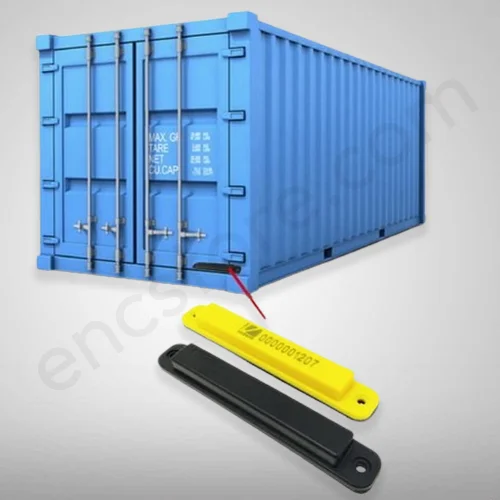

EnCStore UHF RFID Anti-Metal Tag Strips are best suitable for asset tracking, tool tracking, logistics, warehouse management, automotive, manufacturing, and container and bin tracking applications amongst others

Specifications
Operating Frequency865 - 867 MHz
Communication ProtocolISO 18000-63 and EPCglobal Gen2v2
Read RangeUp to 8m
Chip TypeAlien Higgs 3
EPC Memory96 bits
User Memory512 bits
Data Retention10 Years
Tag MaterialABS
Tag Size135mm(L) x 20mm(W) x 15mm(T)
Applicable SurfaceMetal Surfaces
Attachment /Mounting MethodAdhesive or Screw
Operating Temperature-40°C to +85°C
Storage Temperature-40°C to +85°C
IP RatingsIP68
