Black UHF RFID On-Metal Tag, Excellent performance, Compact Size Tag, RFID Tags For Metal Surfaces, Easily Screwed, Long read range metal tags. High performance, IP68

Check Availability
Write a review
Features
Operating Frequency: 865 - 867 MHz
Communication Protocol: ISO 18000-6C EPC Class 1 Gen 2
Read Range: Up to 6m
Chip Type: Impinj Monza 4E
EPC Memory: 96 bits
Enquire Now
Be the first to review this item
 Write a review

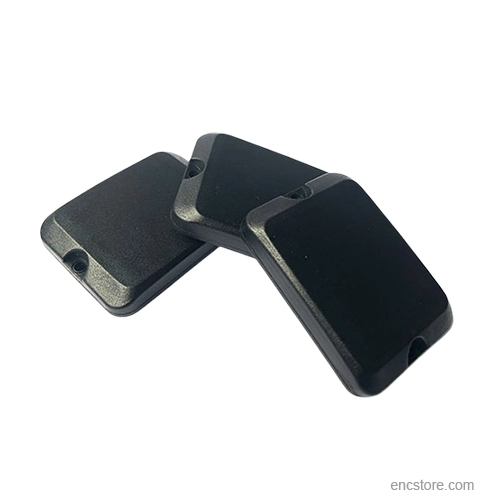

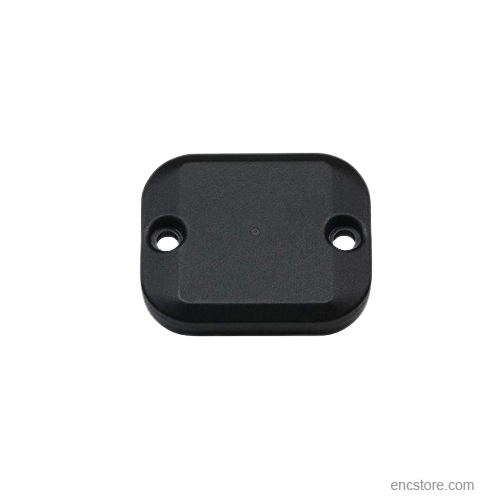

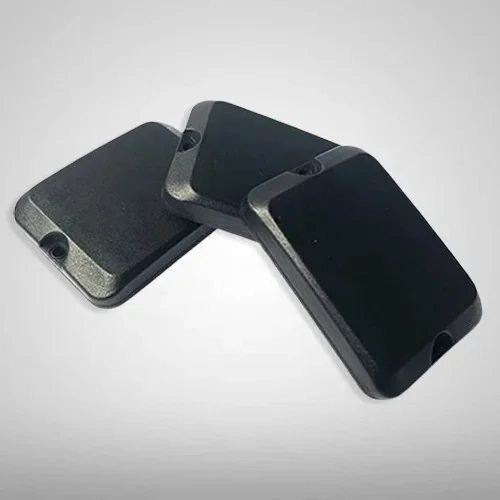

The black UHF RFID on-metal tag or UHF Tag Over-Molded Metal Square is a type of RFID tag consisting of a metal square encased in a durable ABS plastic shell. It works on passive ultra-high frequency (UHF 865-867 MHz) technology, best suitable for asset tracking, bin and container tracking, tool tracking, warehouse and inventory management, healthcare, retail, supply chain, and logistics management applications.

The Mount On-Metal UHF RFID Tags contain an RFID chip and an antenna and can wirelessly transmit data to a compatible Rain RFID reader, such as a smartphone or RFID-enabled device. These on-metal RFID tags are resistant to chemicals and water (IP68 rating) and are the most suitable for harsh environments outdoors.

EnCStore is a leading on-metal RFID Tag Manufacturer in India, providing metal RFID tags in various shapes and sizes that can be easily attached to all surfaces, especially on metal objects, at the lowest prices. These UHF on-metal RFID Tags for equipment provide flexible installation, including screw installation, rivet installation, and adhesive background glue installation.


Application of UHF On-Metal RFID Tag

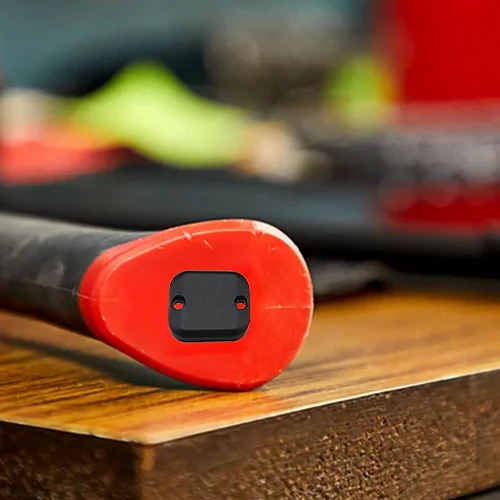

• Asset Tracking

• Tool Tracking

• Logistics

• Warehouse Storage Rack

• Manufacturing

• Container Tracking

• Automotive

Specifications
Operating Frequency 865 - 867 MHz
Communication Protocol ISO 18000-6C EPC Class 1 Gen 2
Read Range Up to 6m
Chip Type Impinj Monza 4E
EPC Memory 96 bits
User Memory 128 bits
Write Cycle Endurance 100,000 cycles
Data Retention 10 Years
Tag Material Nylon

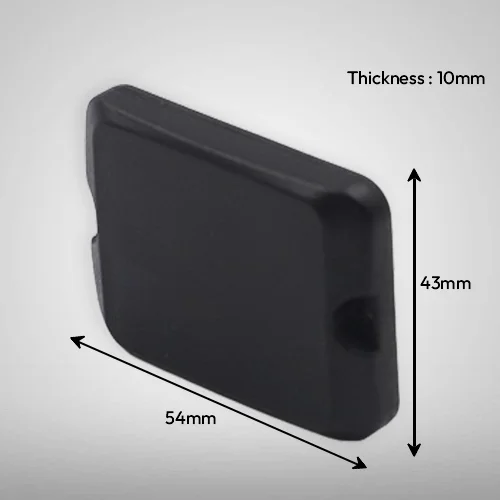

Tag Size 54mm(L) x 43mm9W) x 10mm(T)
Applicable Surface Metal Surfaces
Attachment /Mounting Method Screw
Weight 28g
Operating Temperature -40°C to +85°C
Storage Temperature -40°C to +120°C
IP Ratings IP68
