C71 Handheld with Built-in UHF/NFC RFID Reader/Writer

Built-in UHF/NFC RFID Reader/Writer, Android-11, Lightweight and Portable, Ultra High Frequency, 865-867 Mhz, Upto 4mtrs long read range, 5000mAh Powerful Battery, Bluetooth, IP Rating 65

Write a review
Features
Operating Frequency: 865-867 Mhz, Ultra High Frequency (UHF)
Air Interface Protocol: ISO 18000-6C EPC Clas 1 Gen 2
Antenna: Circular polarization (1.5 dBi)
Bluetooth: Android 8.1: Bluetooth v2.1+EDR,3.0+HS,v4.1+HS Android 11.0: Bluetooth 5.0
Data Interface: USB, OTG
Enquire Now
Be the first to review this item
 Write a review

C71 Handheld device with built-in UHF RFID reader & writer, It is an innovative and powerful device that enables users to quickly and accurately scan and read UHF RFID tags.  The newly-upgraded Octa-Core CPU delivers an enhancement in overall performance that enables high-speed and stable possessing. It has excellent RFID performance with a read distance of 4m and enables optional barcode scanning and iris recognition. The C71 mobile computer is a lightweight phone-size reader built for short-distance applications.

Its portability allows users to quickly and conveniently read tags in any environment. C72 UHF RFID reader integrated software suite also offers a variety of features to maximize its functionality, including adjustable read speed, support for custom label formats, and customizable reports. It features an Android 11 operating system, a 5.2'' large screen, Dual-band Wi-Fi, a powerful battery, 13MP camera, and optional barcode scanning.

Application

• Retail Inventory Management

• Warehouse Management

• Asset Tracking

• Inventory Control

• Supply Chain Management

• Manufacturing Process Automation

• Logistics Optimization

• Vehicle Access Control

Specifications
Operating Frequency 865-867 Mhz, Ultra High Frequency (UHF)
Air Interface Protocol ISO 18000-6C EPC Clas 1 Gen 2
Antenna Circular polarization (1.5 dBi)
Bluetooth Android 8.1: Bluetooth v2.1+EDR,3.0+HS,v4.1+HS Android 11.0: Bluetooth 5.0
Data Interface USB, OTG

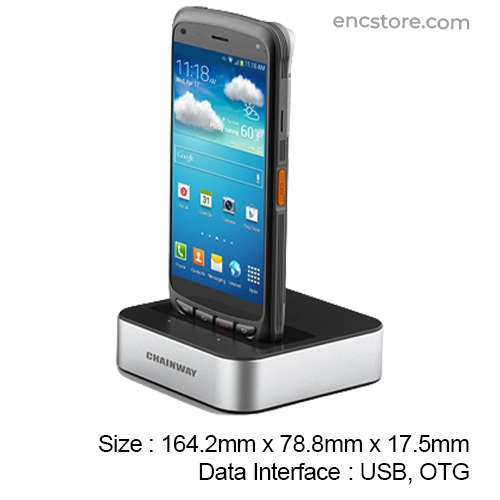

Dimensions 164.2mm x 78.8mm x 17.5mm
Battery 5000mAh Powerful Battery
RAM+ROM 3GB + 32GB
Max Read Range Up to 4m (depend on tags and environment)
IP Rating IP65
Camera 13MP Autofocus Camera
Operating Temperature -20 °C to 50 °C
Operating System Android 11/8.1
Display 5.2'' IPS LTPS 1920 x 1080
Touch Panel Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported
Notification Sound, LED indicator, vibrator
Sensors Light sensor, proximity sensor, gravity sensor
Power 1W (+19 dBm to +30 dBm adjustable)
Max Read Range Impinj E310 chip:3m (Impinj MR6 tag, size 70 x 15mm), 3m (Impinj M750 tag, size 70 x 15mm), 4m (Alien H3 Anti-Metal tag, size 130 x 42mm)
Operating Temperature -20 °C to 35 °C
Storage Temperature -40 °C to 70 °C
