Ultra high frequency, 865-867 MHz, Wall Mounted, Supports RS232/RJ45/HDMI, DC 10V – 24V, High performance, Up to 950 tags/s read rate

Write a review
Features
Brand: Chainway
Operating Frequency: 865–867 MHz Ultra High Frequency(UHF)
Communication Protocol: ISO 18000-6C EPC Clas 1 Gen 2
Dimensions: 247mm x 151mm x 35mm
Material: Aluminum Alloy
Input Voltage: DC 10V – 24V
Enquire Now
Be the first to review this item
 Write a review

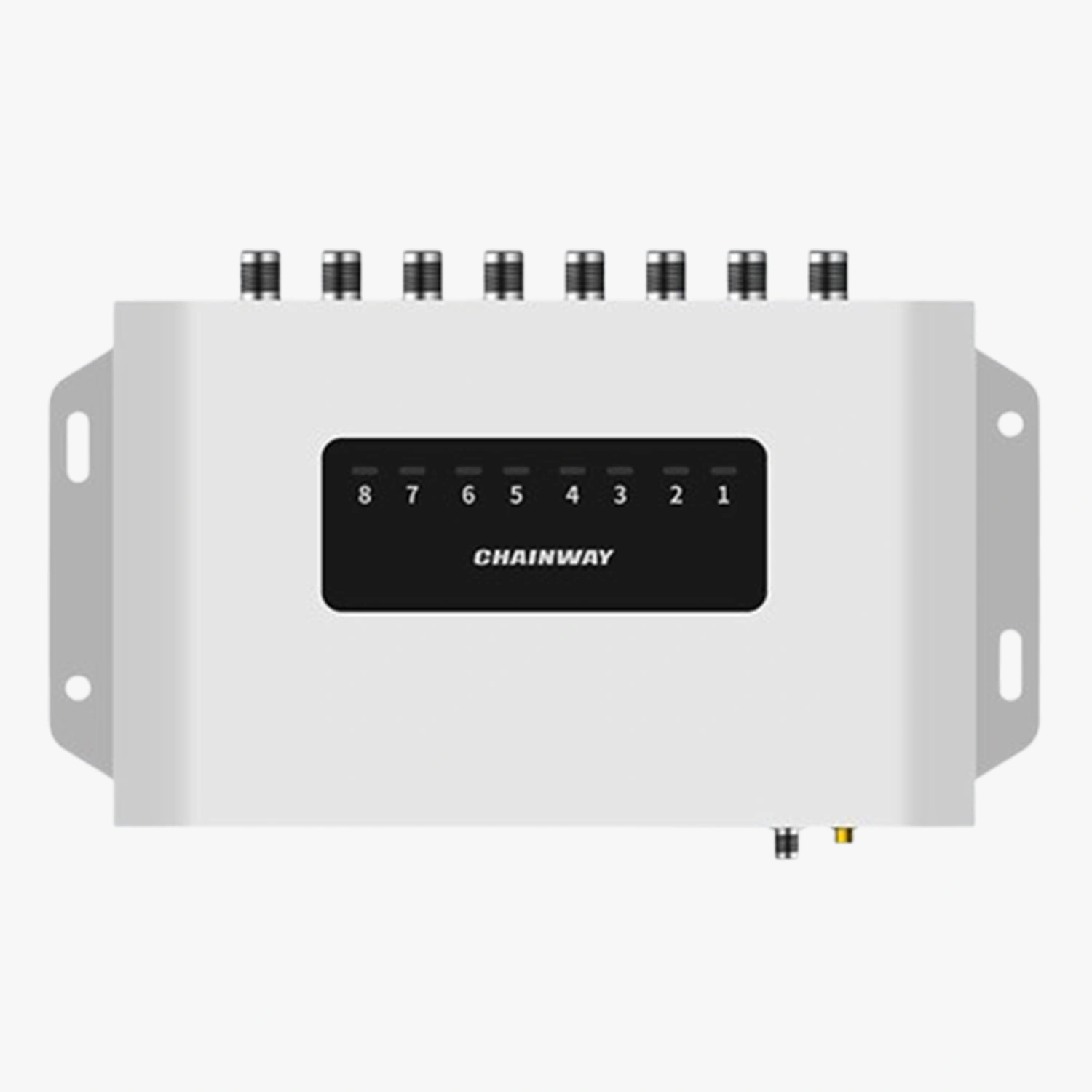

Chainway U300 Fixed RFID Readers are designed for fast and secure data capturing in file management systems, production line management systems, medical device cabinets, etc.

We offer reliable and secure U300 Fixed RFID Readers which can connect to various systems and networks, allowing easy integration into existing infrastructure. The UHF U300 Fixed RFID Readers operate on an 865–867 MHz (Ultra-High Frequency) frequency range and can read UHF RFID tags, offering a high read rate and a read range of up to 15m.

These fixed readers are designed with aluminum alloy material with an integrated antenna to enhance the read range and accuracy of readers. U300 Fixed RFID Reader is based on the Android 11 operating system and the CPU is powered by Quad–Core 2.0GHz processor which helps speed up the processing power.

EnCstore offers U300 Fixed RFID Readers equipped with multiple security features, such as encryption, authentication, and access control enabling applications like warehousing, file management, Library management, Production line management, Medical device cabinet, etc.

Specifications
Operating Frequency865–867 MHz Ultra High Frequency(UHF)
Communication ProtocolISO 18000-6C EPC Clas 1 Gen 2
Dimensions247mm x 151mm x 35mm
MaterialAluminum Alloy
Input VoltageDC 10V – 24V
Standby Current< 140mA

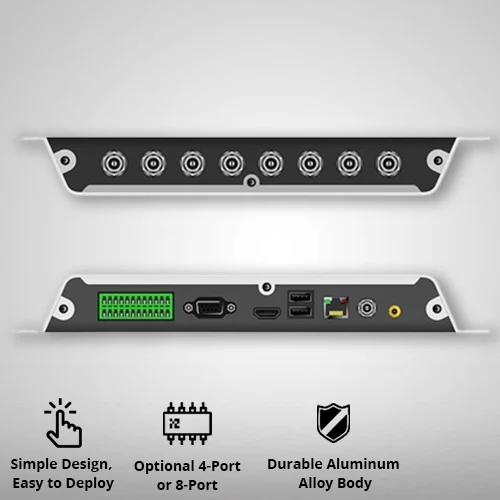

Communication Interface1 x RS-232 ,1 x RJ45,1 x USB Host,1 x USB Device
GPIO4 x input optocouplers, 4 x output optocouplers, with isolation, 1 x wiegand
Operating SystemAndroid 11
SDKSupport Software Development Kit
CPUQuad - Core 2.0GHz
RAM+ROM2GB + 16GB
AntennaSupport multiple antennas, such as 6dBic, 9dBic, etc.
PowerDC (24V)?POE (802.3af 13W)?POE+ (802.3at 25.5W)
Output Power1W (30dBm, support +5~+30dBm adjustable, POE / DC power supply)
Output Power Precision+/- 1dB
Output Power Flatness+/- 0.2dB
Receive Sensitivity< -84dBm
Fastest Read RateUp to 950 tags/s
Antenna Port4 / 8 Channel 50O RF Connector RP-TNC Female
