Ultra High Frequency, 865-867 MHz, 17dBm Output power, USB Interface, upto 60 cm read range, upto 10cm write range

Write a review
Features
Operationg Frequency: 865–867 MHz Ultra High Frequency(UHF)
Air Interface Protocol: ISO 18000-6C EPC Clas 1 Gen 2
Dimension: 142mm x 85mm x 20mm
Material: ABS
Output power: 0~17dBm
Enquire Now
Be the first to review this item
 Write a review

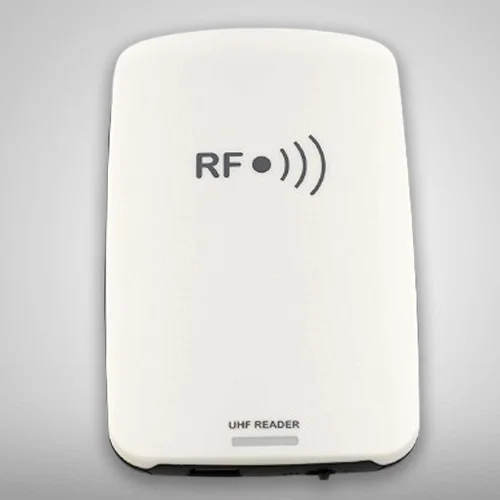

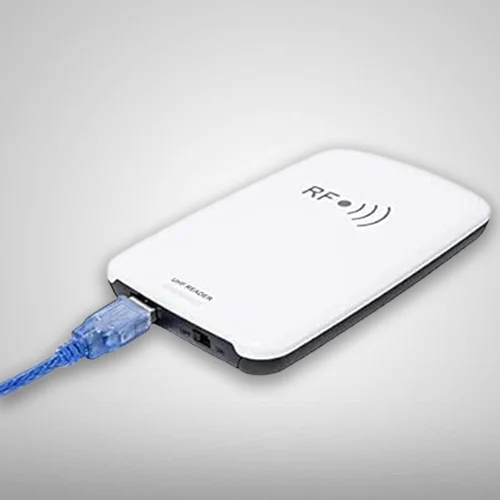

The SR3308 UHF RFID Reader Writer is a high-performance, high-density UHF RFID reader and writer. It has a built-in antenna and is capable of simultaneous reading and writing of multiple tags, making it ideal for asset tracking, access control, and other RFID applications. It features an 860-960MHz frequency range and supports protocol ISO 18000-6C EPC Class 1 Gen 2. The RFID card issuer connects to the computer without installing drivers, using an advanced plug-and-play interface through a USB connection with the PC and related equipment.

Application: Employee identification, Time and attendance, Access control management, Library management, Consumer management, etc

Specifications
Operationg Frequency865–867 MHz Ultra High Frequency(UHF)
Air Interface ProtocolISO 18000-6C EPC Clas 1 Gen 2
Dimension142mm x 85mm x 20mm
MaterialABS
Output power0~17dBm
Reading rangeupto 60 cm
Writing rangeupto 10 cm
Communication interfaceUSB
Operating Temperature-20°C ~ +55°C
Storage temperature-20°C ~ +55°C
Communication portLeft USB to serial port / Right USB to Data output
Power supply+5V DC
