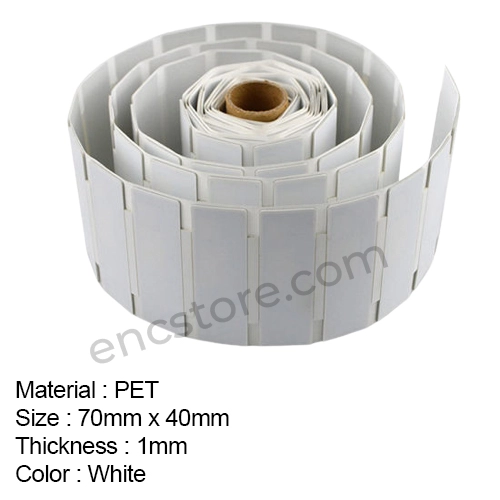

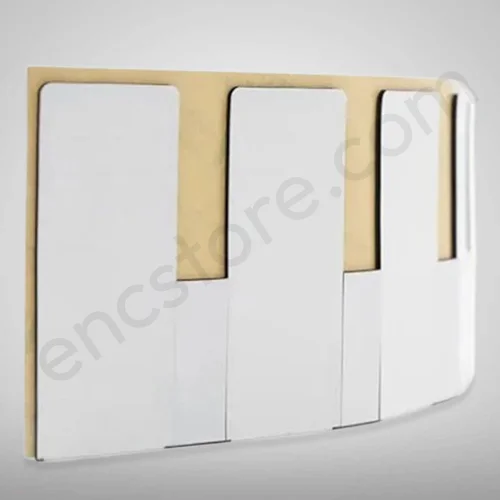

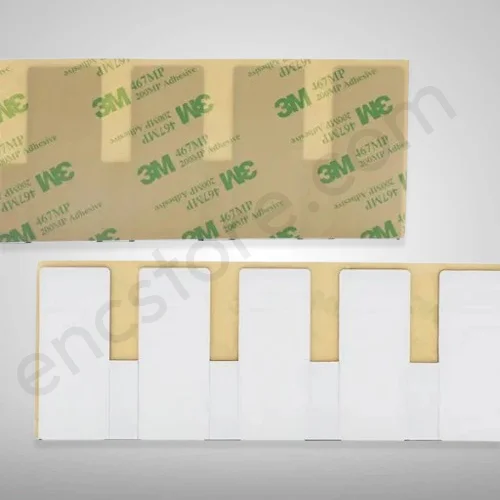

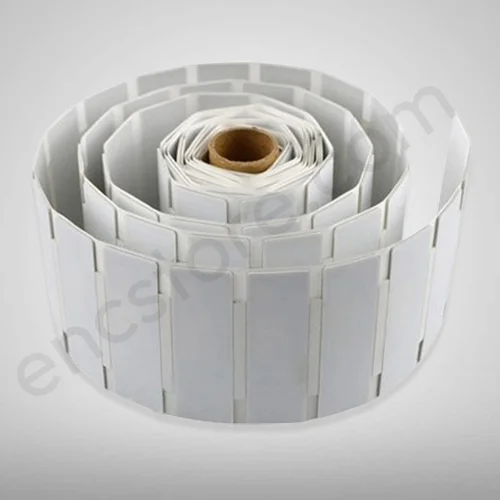

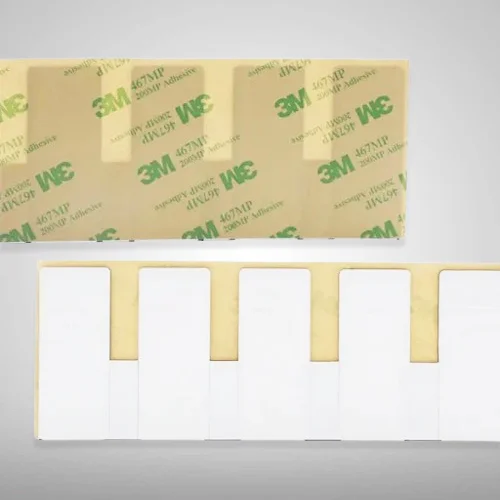

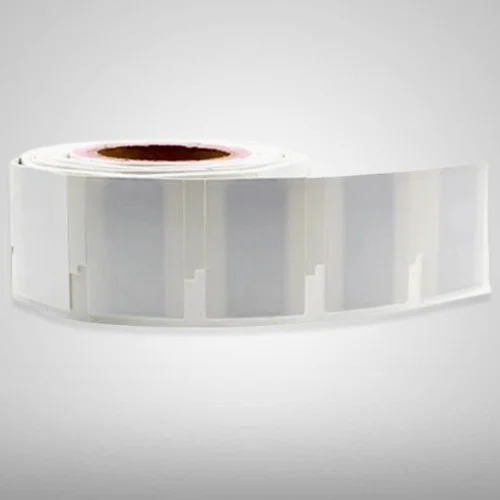

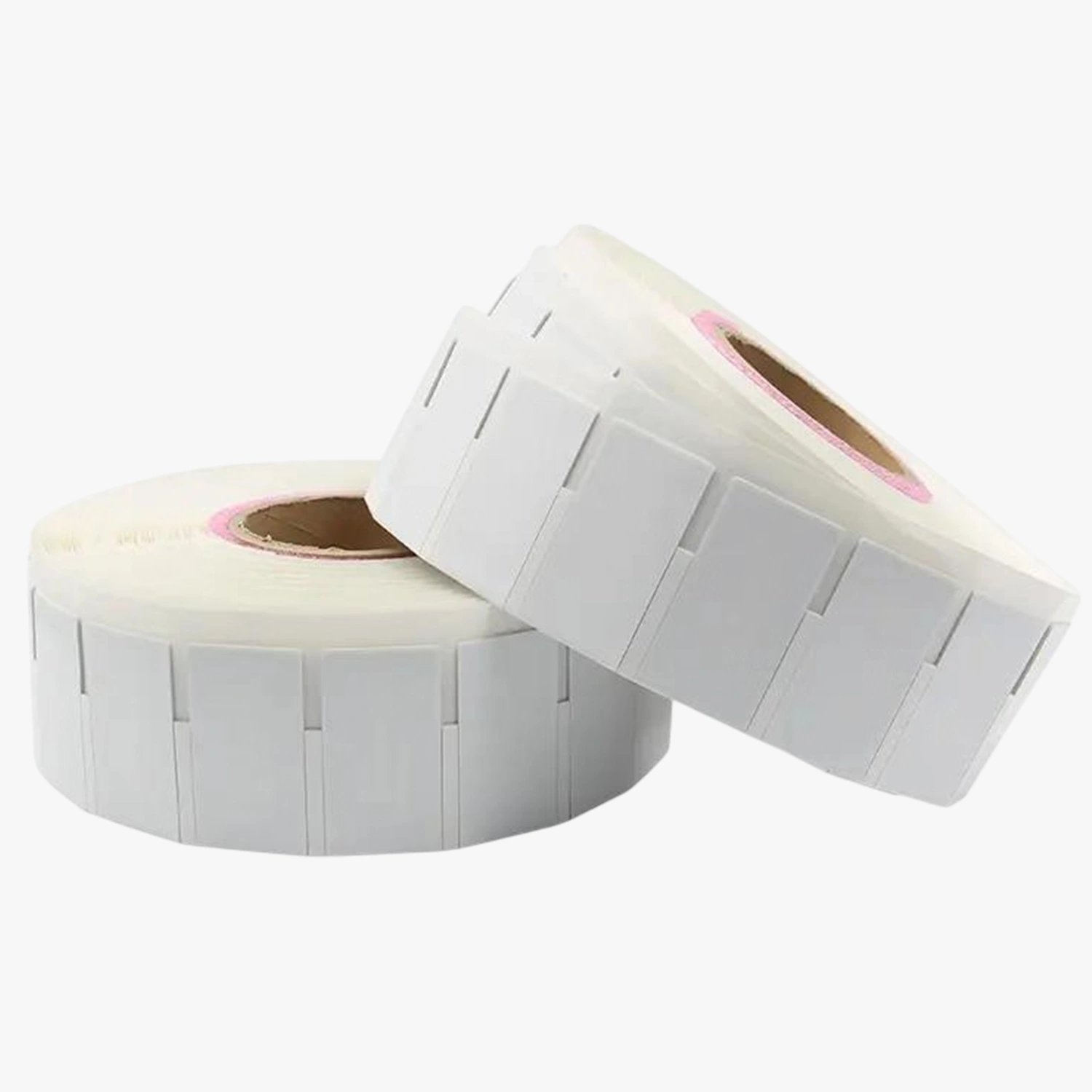

Flexible On-Metal RFID Tags, Size: 70mm x 40mm (White), Ultra High Frequency, 865–867 MHz, suitable for Indoor office assets, IT assets management

Write a review
Features
Operating Frequency: 865 - 867 MHz
Communication Protocol: ISO 18000-63 and EPCglobal Gen2v2
Read Range: Up to 8m
Chip Type: Impinj Monza M730
Tag Material: PET
Be the first to review this item
 Write a review

The UHF RFID Flexible Anti-Metal Tags are specialized tags designed to be used in harsh environments or on metal surfaces. The tags are made of flexible material that allows them to be bent and shaped to fit around metal objects or curved surfaces. The tags are equipped with high-performance UHF RFID chips and antennas which allow them to be read from a far distance and with a high degree of accuracy. The tags are designed to operates at 865MHz to 867MHz UHF frequencies and are resistant to water, dust, and extreme temperatures. The tags also feature a built-in antenna which allows for better signal transmission and receiving.

Application

Tracking and inventory management,

Access control,

Asset tracking,

Logistics management

Automotive industry to track vehicles and parts

Specifications
Operating Frequency865 - 867 MHz
Communication ProtocolISO 18000-63 and EPCglobal Gen2v2
Read RangeUp to 8m
Chip TypeImpinj Monza M730
Tag MaterialPET
Tag Size70mm(L) x 40mm(W) x 1mm(T)
Applicable SurfaceMetal Surfaces
Attachment /Mounting MethodAdhesive

No file found !

FAQs

How far can these Anti-metal RFID Flexible Tags be read from?

The Anti-metal tags operate at UHF frequencies (860–960 MHz) and provide a read range of  3-6 meters. The read range typical depends on the size of the tag, antenna design, and the choice of RFID chip, apart from the operating environments and RFID readers and antennas in use.

What RFID tags are best for laptops (metal interference)?

Use on-metal/anti-metal RFID tags designed with tuned antennas or spacers to compensate for metal detuning, ensuring reliable RF performance on laptop chassis.
