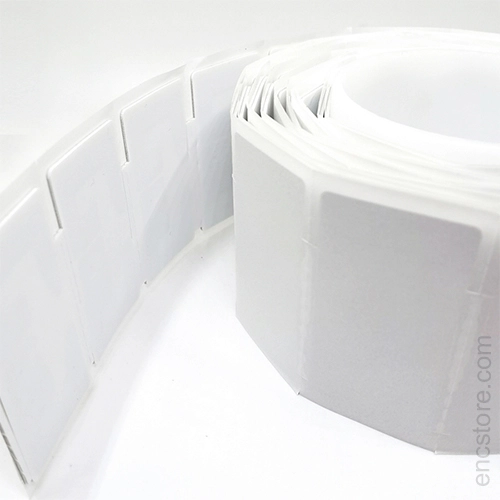

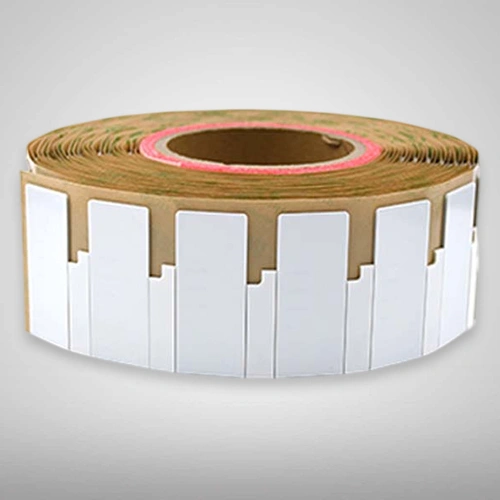

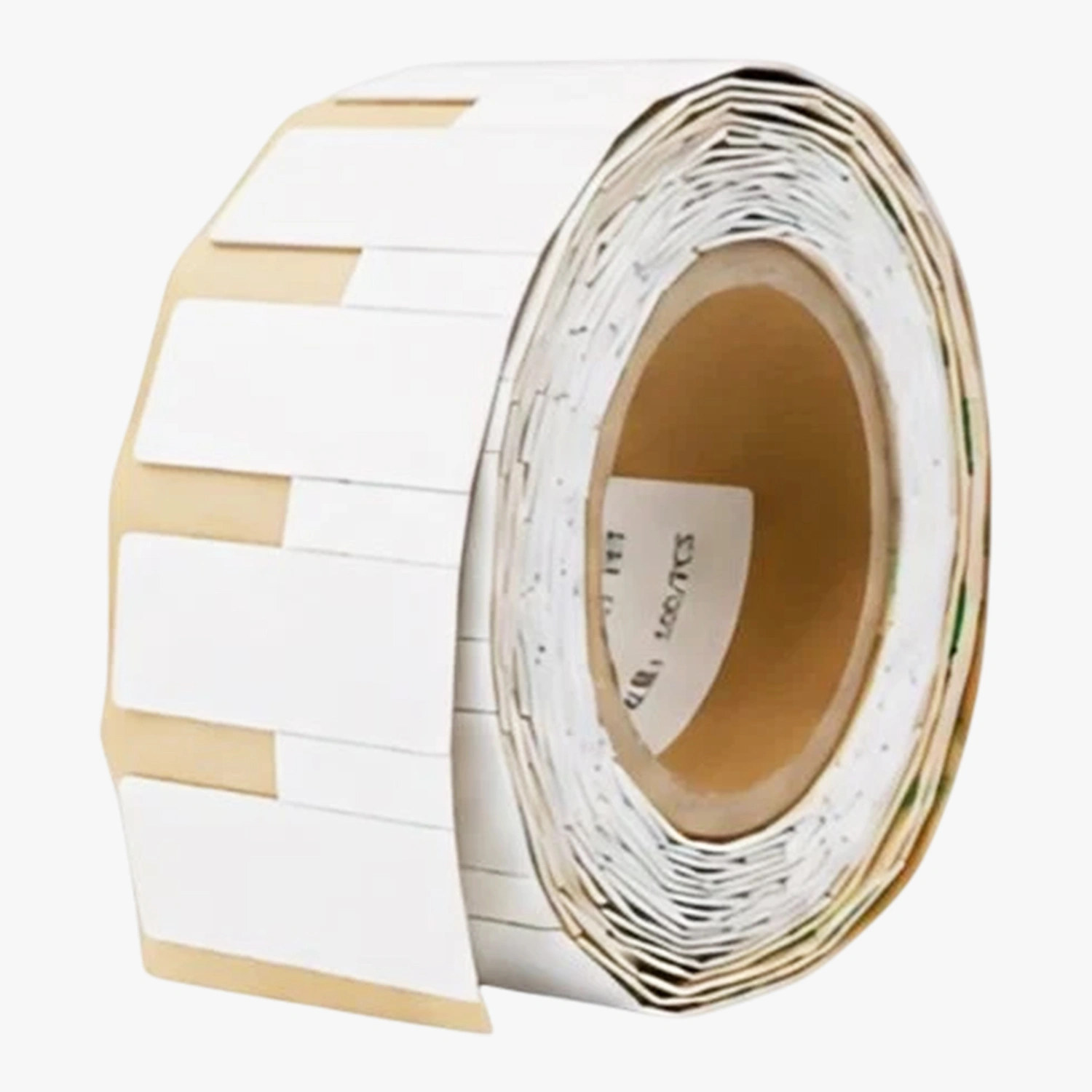

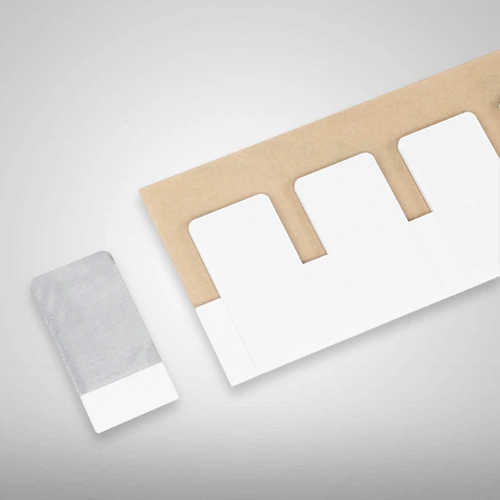

UNI-7030 Self Adhesive UHF RFID Flexi On-Metal Labels/Tags

Self Adhesive, UNI -7030 Flexible On-Metal RFID Tags, Size: 70mm x 30mm (White), Ultra High Frequency, 860–960 MHz, Up to 12mtrs Read Range, High performance RFID Label for metallic assets

Write a review
Features
Operating Frequency: 865 - 867 MHz
Communication Protocol: ISO 18000-63 and EPCglobal Gen2v2
Read Range: Up to 12m
Chip Type: Impinj Monza M730
EPC Memory: 128 bits
Be the first to review this item
 Write a review

Self-adhesive UHF RFID Flexi-on-metal labels/tags are RFID labels/tags that are attached to metal surfaces using a self-adhesive backing. These labels are designed to work with UHF RFID reader systems and are capable of withstanding harsh environments and temperatures. They are made of a flexible material that enables them to conform to curved surfaces and provide excellent read range and performance. The self-adhesive backing provides a strong bond to metal surfaces, and these labels are ideal for asset tracking and inventory management applications.


Application of RFID Flexible Tag

• Asset tracking and management

• Inventory management

• Warehouse management

• Logistics and supply chain management

•  Access control and security

• Healthcare Identification and Management

Specifications
Operating Frequency865 - 867 MHz
Communication ProtocolISO 18000-63 and EPCglobal Gen2v2
Read RangeUp to 12m
Chip TypeImpinj Monza M730
EPC Memory128 bits
Write Cycle Endurance100,000 cycles
Data Retention50 Years
Tag MaterialSynthetic Polyester
Tag Size70mm(L) X 30mm(W) X 1mm(T)
Applicable SurfaceMetal Surfaces
Attachment /Mounting MethodAdhesive
Operating Temperature-30°C to +80°C
Storage Temperature-30°C to +80°C
IP RatingsIP68

No file found !

FAQs

How far can these Anti-metal RFID Flexible Tags be read from?

The Anti-metal tags operate at UHF frequencies (860–960 MHz) and provide a read range of  3-6 meters. The read range typical depends on the size of the tag, antenna design, and the choice of RFID chip, apart from the operating environments and RFID readers and antennas in use.
