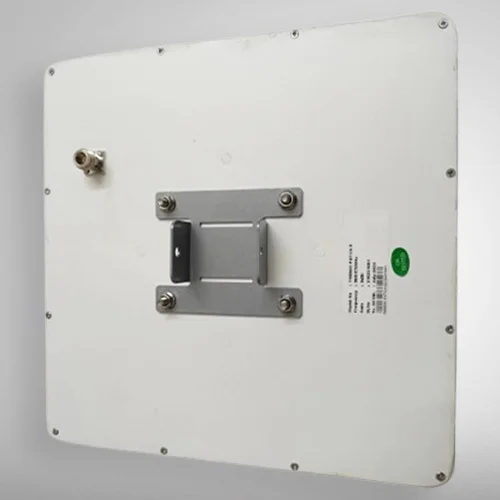

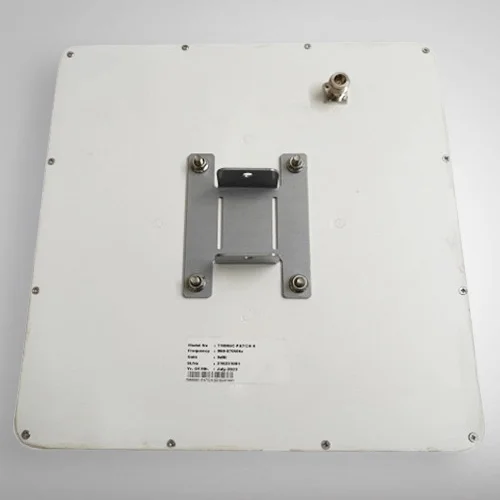

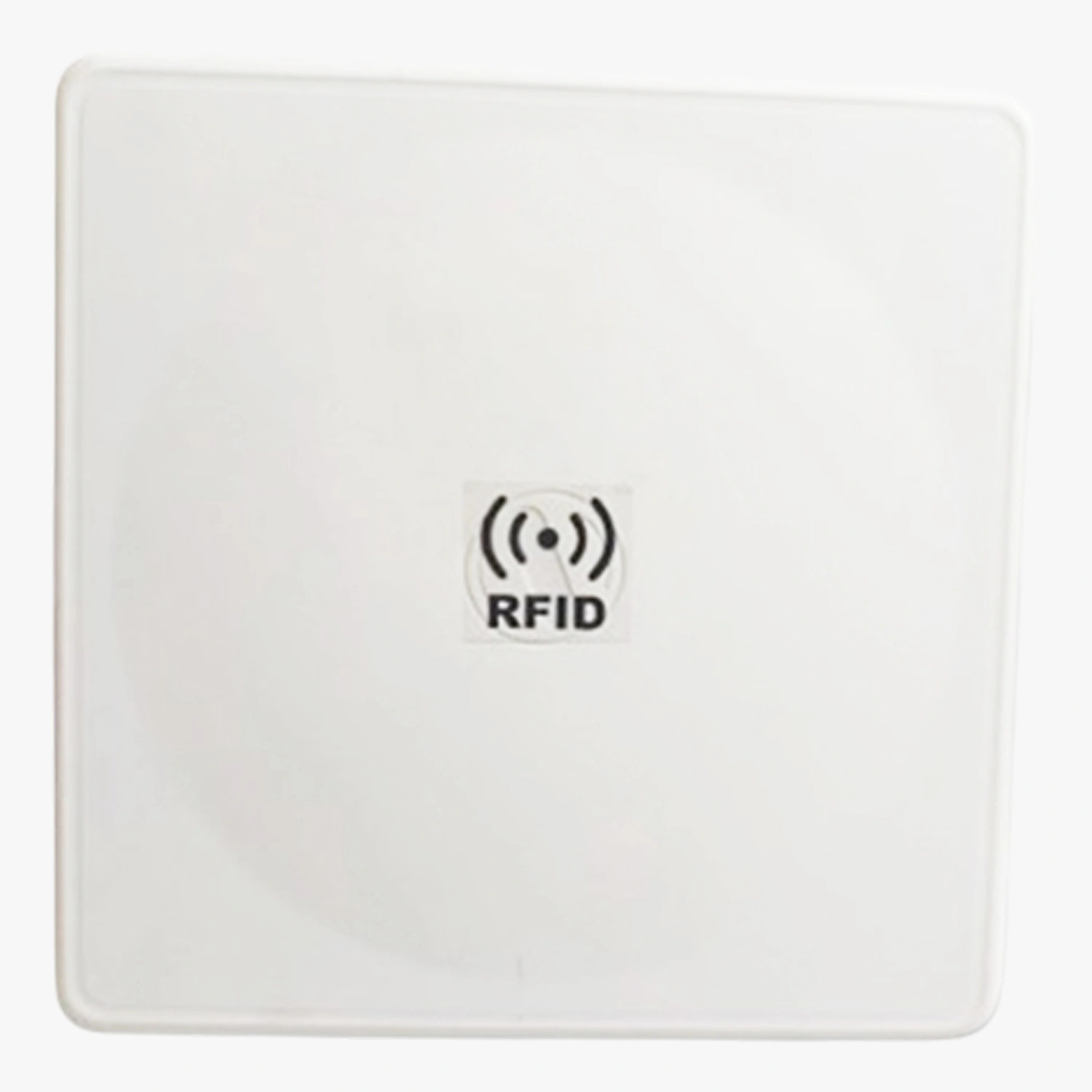

9dBi Circular Polarized UHF RFID Antenna with Bracket

Long Range RFID Antenna with Mounting Bracket, 865-868 MHz Frequency, IP Rating - 65, High Performance UHF RFID Antenna, 9dBi gain, Circular Polarized Panel Antenna

Get Latest Price
Features
Operating Frequency: 860-870 MHz, Ultra High Frequency
Polarization: Circular Polarization (RHCP/LHCP)
Model: UHF/T9NC
Gain: 9 dBic
Connector Type: N Connector
Enquire Now

The UHF 9dBi circular Polarized antenna that we offer is a long range, UHF Frequency (860-960MHz) RFID antenna that is well suited for use in heavy demand logistics and supply chain operations, warehouse management as well as access control systems in smart buildings and offices. It is suitable for both item-level tracking and keeping track of people as well, enabling communication between an RFID reader and RFID tag.

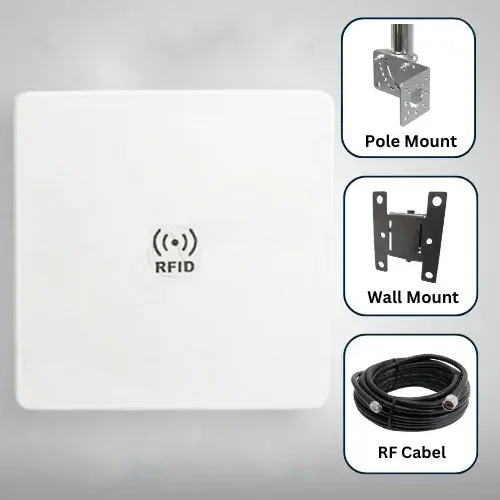

The circular polarized antenna is available in 9dBi gain and comes with Flush and Vesa Mount and N connectors for easy installation. The packing is compact and packs a polycarbonate covering with plenum ratings offering fire resistance. The circular polarization UHF RFID antenna allows it to work efficiently in all directions no matter the reader alignment.

The high gain, long range UHF antenna is suitable for industrial and commercial operations and performs well under harsh environments and outdoor conditions with IP68 rating and a read range of up to 9m/29 feet.

EnCStore offers long range UHF RFID antennas from the best antenna manufacturers in India and well known international brands at competitive prices. Contact us for a quotation on long range, high gain RFID antenna prices in India.


Application of Circular Polarised UHF RFID Antenna

• Inventory management,

• Asset management,

• Toll plaza automation,

• Hospital access control,

• Automatic Time Attendance for Schools


Why choose this UHF RFID Antenna?

Circular Polarized antennas are a great choice because they have longer reading distances, work with tags in any direction, reduce interference, cover a wider area, and provide accurate readings. This UHF RFID antenna offers convenience, reliability, and improved performance for RFID tracking and identification systems

Specifications
Operating Frequency 860-870 MHz, Ultra High Frequency
Polarization Circular Polarization (RHCP/LHCP)
Model UHF/T9NC
Gain 9 dBic
Connector Type N Connector
Dimension(mm) 300 X 300 X 10
VSWR(Max) 1.5:1
AxialRatio(dB) 2(Max)
Max.Power Input (Watts) 50
Impedance 50 ohm
Front to Back Ratio(dB) >20
Lightning Protection DC Grounded
Gross Weight(Kg) 1.5
Radome UV Stabilized ABS
Mounting Hardware MS Galvanized & Powder Coated
Mounting Style Wall/Pole
Water Proofing IP65
Operating Temprature -40° to +70°C
