The Time-7 Slimline A6034 UHF RFID Antenna is a Far-field RFID antenna working on UHF 865-868 MHz Frequency range, comes with 3W input power, 9dBi gain, wall and ceiling mounting features.

Write a review

Features

Brand: Times 7
Dimensions: 747 x 314 x 12mm
Frequency Range: 902-928MHz (FCC); 865-867MHz (ETSI)
Connector Type: SMA female
Antenna Gain: 9 dBi Circular
Polarization: Circular
Planning a bulk purchase?Speak with our team at +91-8130501117

Why Buy From EnCstore?

  • Genuine Products. Trusted Support.
  • GST Invoice & Bulk Order Discounts.
  • Expert Support Before & After Sale.
  • PAN India Delivery.

Need Help? Ask Experts

Be the first to review this item
 Write a review

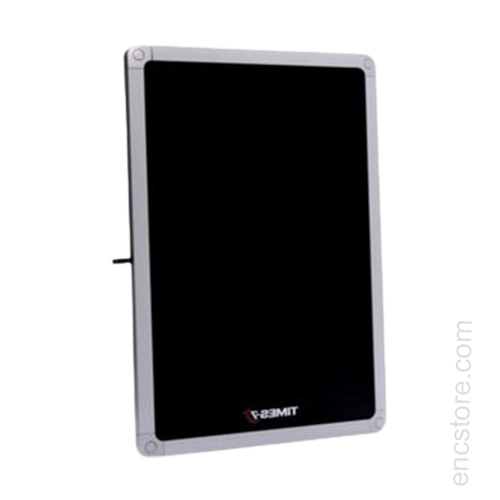

The SlimLine A6034 UHF RFID Antenna is an ultra-low profile, circular polarised, flat panel, high 9dBi gain antenna with an overall thickness of just 12 mm (0.5 inches). It is 747mm long (29.4 inches) and can be fixed on the wall or ceiling or integrated into dock entrances and  portals.

EnCStore provides the Time-7 Slimline A6034 UHF RFID Antenna, designed and manufactured by industry best RFID manufacturer, at competitive market prices.

Applications of SlimLine A6034 UHF RFID Antenna

The SlimLine A6034 UHF RFID Antenna is used in applications that require a sleek, high-performance antenna with a long read range (up to 9m/29ft), as follows:

• Parking Management

• Asset Management

• Access Control

• Inventory Management

• Space constrained or customer-facing environments

• Rugged design makes it suitable for  industrial applications.

Specifications

Dimensions747 x 314 x 12mm
Frequency Range902-928MHz (FCC); 865-867MHz (ETSI)
Connector TypeSMA female
Antenna Gain9 dBi Circular
PolarizationCircular
VSWR1.4 typical
Front to back ratio25 dB
Axial Ratio< 2 dB at boresight
Nominal impedance50 Ohm
Anti-static protectionDC grounded
Antenna detection10 K O resistance
Maximum Input Power3 W
