Bluetooth 5.0 (Bluetooth Low Energy) Standard, Upto 100m read range, IP Rating-67, Easy setup, Battery power supply, 4dBm output power

Write a review
Features
Bluetooth Standard: Bluetooth 5.0 (Bluetooth Low Energy)
Frequency Band: 2.4 ISM band
Size: 40 mm x 30 mm x 10 mm
IP rating: IP67
Power Supply: Battery
Enquire Now
Be the first to review this item
 Write a review

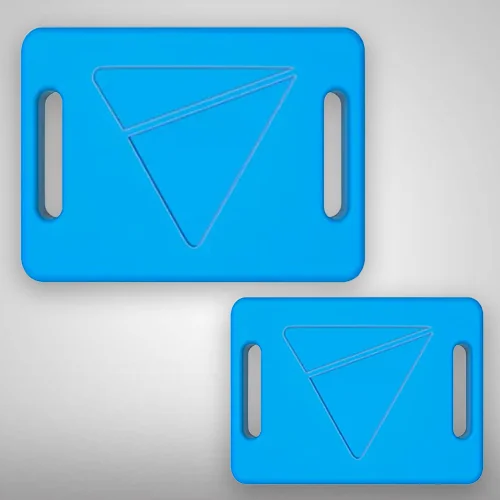

Nimble BLE Beacon is an innovative Bluetooth Low Energy (BLE) beacon technology designed to help businesses engage with their customers in a more interactive way. It is a small, battery-powered device that transmits a Bluetooth signal at regular intervals, which allows businesses to detect the presence of customers in a given area. The beacon can be used to send out notifications or messages to customers or to provide contextual information about the environment or products in the surrounding area. Nible BLE Beacon is easy to install and is compatible with both iOS and Android devices.


Specifications
Bluetooth StandardBluetooth 5.0 (Bluetooth Low Energy)
Frequency Band2.4 ISM band
Size40 mm x 30 mm x 10 mm
IP ratingIP67
Power SupplyBattery
ReplaceableYes (Field replaceable)
TypeCR2032 (3V, lithium)
Expected Battery Life1 to 5 Years
Read RangeUp to 100m
Current Consumption5.3mA – 7.5mA – TX at +4dBm output power
Size Tolerance1mm
Weight: 25gm (0.88 ounce)
Antenna TypeHigh Performance Chip Antenna
Radiation PatternOmnidirectional
