High Quality, Silver Printed, High Frequency, 13.56 MHz, Passive HF Dry Inlays Tags for product identification

Write a review
Features
Operating Frequency: 13.56 MHz
Air Interface Protocol: ISO/IEC 15693
Dimensions: 45mm x 45 mm
Memory: 2k bits organized in 64 blocks × 32-Bit
Base Material: PET
Be the first to review this item
 Write a review

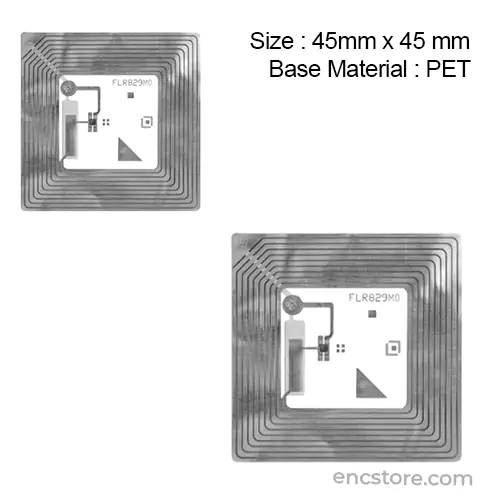

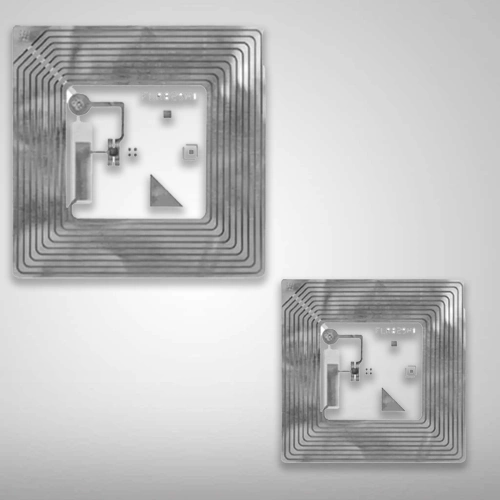

HF/Mifare Dry Inlays RFID Tags are considered “Dry” due to their lack of adhesive backing, with 13.56-MHz high-frequency (HF) transponders that are compliant with the ISO/IEC 15693 standard protocol. An RFID HF dry inlays tag has an integrated circuit (IC) and an antenna attached to a material or substrate, which is usually formed of film or paper material, they seem laminated and come standard with no adhesive.

Application: Healthcare, Document tracking, Product Authentication, Library, Supply-chain Management, Asset management, and Ticketing/stored value.

Specifications
Operating Frequency13.56 MHz
Air Interface ProtocolISO/IEC 15693
Dimensions45mm x 45 mm
Memory2k bits organized in 64 blocks × 32-Bit
Base MaterialPET
Antenna MaterialAluminium
Operating Temperature–20°C to 70°C
