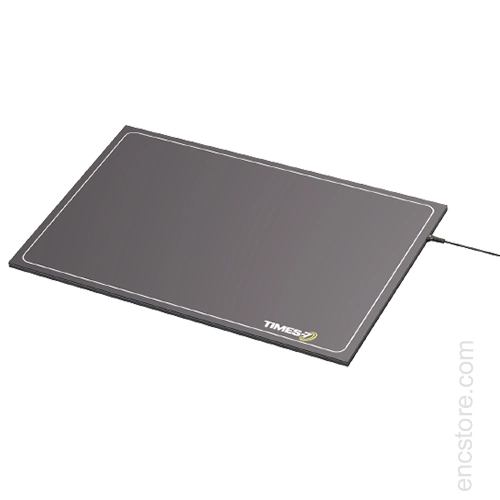

UHF RFID Multi-Purpose Antenna

860-960MHz, High-performance, IP Rating-65, suitable for real time asset and inventory management

Get Latest Price
Features
Operating Frequency: 865–867 MHz Ultra High Frequency(UHF)
Polarization: Linear
Connector Type: SMA female (connects to SMA male)
Antenna Gain: 7.5dbi
Dimensions: 400 mm x 250 mm x 8 mm
Enquire Now

The Multipurpose UHF RFID Indoor Antenna are come with a sleek, aesthetic form factor suitable for customer facing environments and provide strong performance over the entire frequency range of 865–867 MHz with Gain 7.5dBi. This antenna especially designed for existing shelving systems, providing real-time asset and inventory management.

Applications: Access control, Asset and Inventory Management, Ticketing, Document control and Packaging lines.

Specifications
Operating Frequency 865–867 MHz Ultra High Frequency(UHF)
Polarization Linear
Connector Type SMA female (connects to SMA male)
Antenna Gain 7.5dbi
Dimensions 400 mm x 250 mm x 8 mm
Nominal Impedence 50 ohm
Usage/Application Asset and Inventory Management
IP Rating IP53
