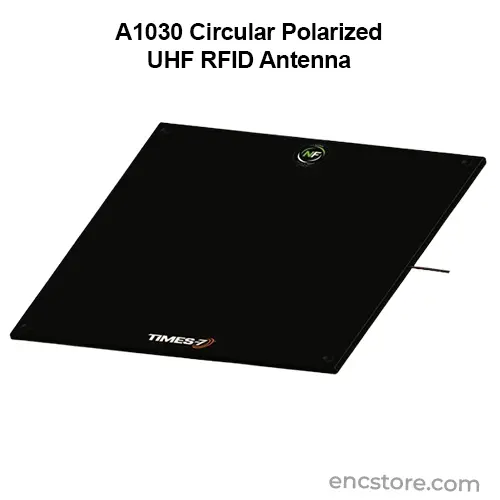

Slimline A1030 Circular Polarized UHF RFID Antenna

Circular Polarised Antenna, A1030 UHF RFID Antenna, 865 -868 MHz Frequency, Up to 15 mtrs Read Range, IP Rating 53, High Gain, High Performance

Get Latest Price
Features
Operating Frequency: 865-868MHz
Polarization: Circular
Gain: < -15 dBi typical
Maximum Input Power: 6W
Connector Type: SMA female side fly lead (300 mm / 1’)
Enquire Now

Slimline A1030 Circular Polarized UHF RFID Antenna is the world’s largest working surface in a near-field antenna, and at just 6.5 mm / 0.25 inch thick, also offers outstanding near-field performance in a unique and optimized footprint, improving workflow and eliminating stray tag-reads. It's opening up new possibilities for item-level RFID tracking where a short-range read is required.

Application:  Libraries, Jewellery, Retail POS, Pharmacy & Healthcare.

Specifications
Operating Frequency 865-868MHz
Polarization Circular
Gain < -15 dBi typical
Maximum Input Power 6W
Connector Type SMA female side fly lead (300 mm / 1’)
Mounting Integrated mounting guides
Dimensions 300mm(L) x 300mm(W) x 6.5mm(D)
Radome Material Fire retardant ABS
IP Rating IP53
Operating Temperature 0° to +50°C
Storage Temperature -30° to +60°C
