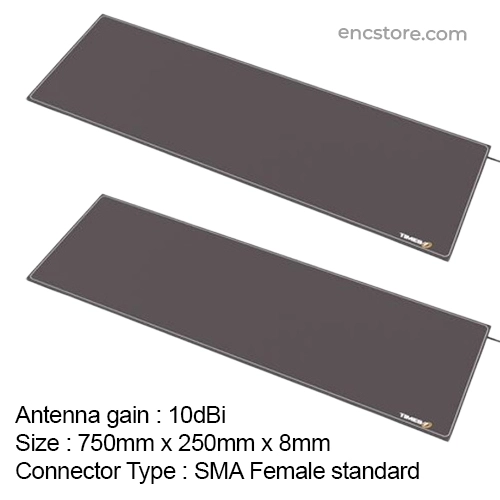

A7075 Linear Polarised UHF RFID Shelf Antenna

10dBi antenna gain, IP Rating-65, 860-960MHz Frequency, 6W max input power, for product identification/inventory management

Check Availability
Features
Frequency: 865–867 MHz Ultra High Frequency(UHF)
Antenna gain: 10dBi
Polarization: Linear
Impedance: 50 ohm
Maximum Input Power: 6W
Enquire Now

A7075 Linear Polarized Shelf Antenna is an ultra-low profile flat panel antenna, total thickness of A7075 is just 8 mm (0.3 inch). It is specially designed to be installed into existing shelving systems and come with a sleek, aesthetic form factor suitable for customer facing environments and provide strong performance over the entire frequency range of 865–867 MHz with Gain 10 dBi.

Application: Real-time asset & product identification / inventory management.

Specifications
Frequency 865–867 MHz Ultra High Frequency(UHF)
Antenna gain 10dBi
Polarization Linear
Impedance 50 ohm
Maximum Input Power 6W
Connector Type SMA Female standard
Dimensions 750mm x 250mm x 8mm
IP Rating 750mm x 250mm x 8mm
Operating Temperature -20° to +55°C
Storage Temperature -30° to +65°C
