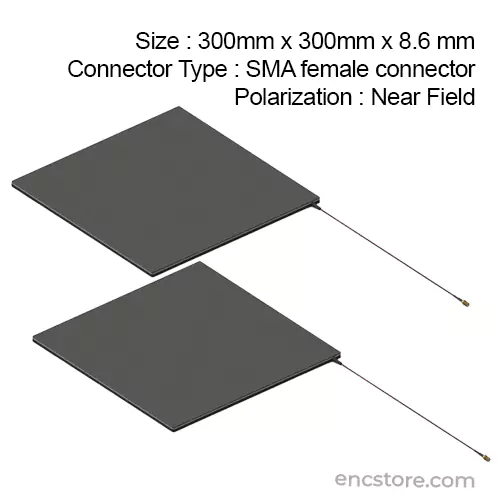

A1130 Near-Field UHF RFID Antenna

Ultra High Frequency, 865-867 Mhz, Short Range UHF RFID Antenna, Up to 30 cm read range, IP54 rating, High Gain, High Performance

Get Latest Price
Features
Operating Frequency: 865–867 MHz Ultra High Frequency(UHF)
IP Rating: IP54
Dimension: 300mm x 300mm x 8.6 mm
Connector Type: SMA female connector
Mounting: Integrated mounting holes on the backside of the antenna (refer to mechanical drawings) / Optional rubber feet included (20 x 20 x 1.45 mm)
Enquire Now

The A1130 Near-Field UHF RFID Antenna is a high-performance, circularly polarized antenna designed for use in UHF RFID applications. It features a wide RFID operating frequency range, high gain, and low VSWR, making it suitable for high-speed, short-range RFID data transmission. Its lightweight, low-profile design makes it easy to install and integrate into existing systems. The antenna is also weatherproof and is designed to withstand harsh outdoor environments.


Features

• Near Field antenna design for optimal performance

• Wide bandwidth for short-range applications

• Low profile for easy integration

• Robust construction for harsh environments

• High efficiency and gain

• High durability

• Lightweight

• Compact size

• IP54 Waterproof rating


Application

• Card Access Control

• Asset Tracking

• Attendance Tracking

• Inventory Management

• Contactless Payments

• Package Tracking

• Automated Access Control

• Vehicle Tracking


Why buy this Product?

The A1130 near-field UHF RFID antenna is a great choice for anyone looking for a reliable, high-performance near-field antenna. This antenna is designed to provide superior performance in near-field applications with a higher gain than traditional antennas. It also features a low-profile design to reduce wind drag and improve system efficiency. Additionally, its IP67 waterproof rating makes it an ideal choice for outdoor applications. With its robust construction and reliable performance, the Times-7 A1130 True NearField Antenna is an excellent choice for anyone looking for a reliable near-field antenna.

Operating Frequency 865–867 MHz Ultra High Frequency(UHF)
IP Rating IP54
Dimension 300mm x 300mm x 8.6 mm
Connector Type SMA female connector
Mounting Integrated mounting holes on the backside of the antenna (refer to mechanical drawings) / Optional rubber feet included (20 x 20 x 1.45 mm)
Polarization Near Field
VSWR 1.95 typical
Nominal Impedance 50 ohm
Maximum Input Power 3 W
Antenna Detection 10K Ohm Resistance
Operating Temperature 0° to +50°C
