Ultra High Frequency, 865-867 Mhz, 50 Ohms impedance, IP Rating-54, High Performance, easier installation and storage

Check Availability
Write a review
Features
Operating Frequency: 865–867 MHz Ultra High Frequency(UHF)
IP Rating: IP54
Dimension: 150mm(L) x 150mm(W) x 8.6mm(D)
Connector Type: SMA female connector
Mounting: Integrated mounting holes on the backside of the antenna (refer to mechanical drawings) / Optional rubber feet included (20 x 20 x 1.45 mm)
Enquire Now
Be the first to review this item
 Write a review

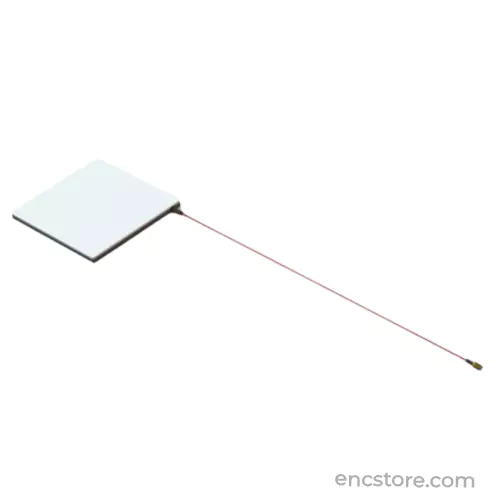

The A1115 Near-Field UHF RFID Antenna is a  low-profile RFID antenna designed for short-range applications. It features circular polarisation and offers a wide operating range in the UHF 865-867 MHz RFID band. The antenna is small in size and low profile making it ideal for applications where space is limited, while its high gain and circular polarization ensures reliable 360 degree performance.

EnCStore offers A1115 Near-Field UHF RFID Antennas, designed to be robust and durable and optimal in performance, making it suitable for harsh environments and tag extensive settings.

These antennas feature IP67 Waterproof rating, durable ABS plastic housing, and the small form factor making them suitable for small spaces.  This antenna is also compatible with  UHF RFID readers, ensuring compatibility with all kinds of UHF RFID systems.

Applications of A1115 Near-Field UHF RFID Antenna

• Card Access Control

• Asset Tracking

• Attendance Tracking

• Inventory Management

• Contactless Payments

• Package Tracking

• Automated Access Control

• Vehicle Tracking

Specifications
Operating Frequency 865–867 MHz Ultra High Frequency(UHF)
IP Rating IP54
Dimension 150mm(L) x 150mm(W) x 8.6mm(D)
Connector Type SMA female connector
Mounting Integrated mounting holes on the backside of the antenna (refer to mechanical drawings) / Optional rubber feet included (20 x 20 x 1.45 mm)
Polarization Circular
VSWR 1.95 typical
Nominal Impedance 50 ohm
Maximum Input Power 3 W
Antenna Detection 10K Ohm Resistance
Operating Temperature 0° to +50°C
