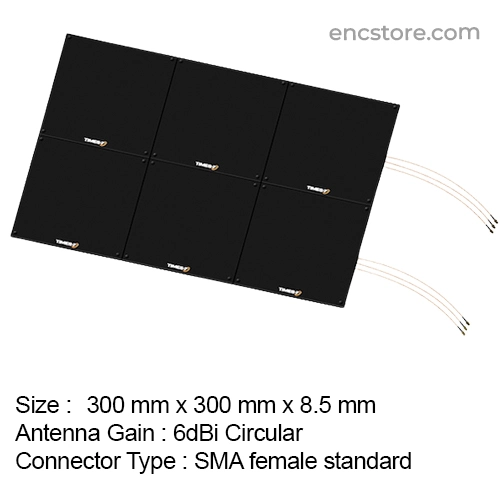

UHF, 6dBi Circular Polarized RFID Shelf and Cabinet Antenna

Ultra High Frequency, 865–867 MHz, 3W max Input power, IP Rating 54, High Gain, High Performance

Get Latest Price
Features
Operationg Frequency: 865–867 MHz Ultra High Frequency(UHF)
IP Rating: IP54
Dimensions: 300 mm x 300 mm x 8.5 mm
Antenna Gain: 6dBi Circular
Connector Type: SMA female standard
Enquire Now

A7030C UHF Shelving and Cabinet antenna offers a highly scalable and customized antenna solution for a wide range of RFID deployments, it combines ultra-low profile and intelligent scalable design, with the performance of a ultra high frequency circularly polarized (CP) antenna, also provide flexible easy mounting options. They are ideal for shelving and cabinet systems managemnent.   Application: Shelving and cabinet systems, Vehicle fleet management, Real-time asset and inventory management


Specifications
Operationg Frequency 865–867 MHz Ultra High Frequency(UHF)
IP Rating IP54
Dimensions 300 mm x 300 mm x 8.5 mm
Antenna Gain 6dBi Circular
Connector Type SMA female standard
Mounting Integrated mounting guides
Maximum Input Power 3 W
Nominal impedance 50 ohm
Operating Temperature -20° to +55°C
Storage Temperature -4° to +131°F
